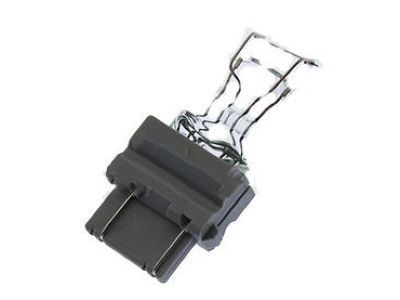

Ford 96FZ-13466-AA Bulb

You can Select Your Vehicle to check if 96FZ-13466-AA fits your vehicle.

First of all, ensure that the ignition and headlight switches are turned off. Next, raise the hood. After that, unplug the electrical connector from the headlight assembly for earlier models like 2007. Then remove the rubber boot and bulb retainer spring. Remove the bulb without touching its glass part. Insert a new bulb ensuring that its metal tabs align with the plastic base. Push the bulb till it is fully seated into position. Reattach the rubber book and spring back onto their previous positions. Now plug in the connector again. Close up by testing headlights and closing the hood again, for model years 2008 as well as subsequent versions repeat the above steps but twist counterclockwise then pull out the bulb after testing headlights close up by closing the hood again.

Disconnect the electrical connector, then rotate the bulb counterclockwise 1/4-turn and pull it out of the fog lamp housing.

Check the relevant fuse and relay with reference to the specifications and wiring diagrams.

1. Remove the protective cover (Typical protective rubber cover (2006 through 2009 model shown; 2010 models similar)). 2. Rotate the bulb counterclockwise and pull it out (To remove the high-beam headlight bulb, turn it counterclockwise and pull it out). Note: The electrical connector cannot be disconnected from the bulb until the bulb is removed. 3. Disengage the bulb clips from the electrical connector (To disconnect the high-beam bulb from the electrical connector, spread these locking tabs apart and pull off the bulb) and remove the bulb.

Remove the bulb from the headlight assembly.

Slide the side light housing rearward, pull it out, disconnect the wiring, and reinstall it in reverse.

Slide the side light housing rearward, pull it out, disconnect the wiring, and reinstall it in reverse.
