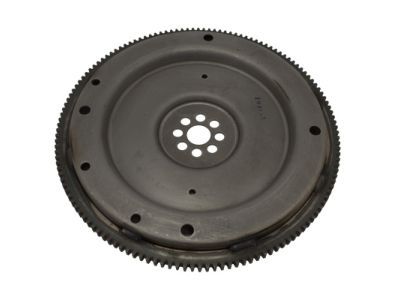

Ford F77Z-6375-AA Flywheel Assembly

You can Select Your Vehicle to check if F77Z-6375-AA fits your vehicle.

On 2011 automatic transmission-equipped models, the driveplate is known as a flexplate by the manufacturer. To remove it, first take out the transmission and the clutch if equipped. If any clutch components show wear or the vehicle has high mileage, replacement is recommended. Mark the flywheel/driveplate to the crankshaft with paint or a center-punch for proper reinstallation. To prevent the flywheel/driveplate from turning, install one transmission mounting bolt into the cylinder block and have an assistant hold a prybar against the mounting bolt while loosening the bolts. Remove all bolts except one, leaving it installed halfway, then pull the flywheel/driveplate away from the crankshaft flange, using a mallet if necessary. Support it while removing the last bolt and carefully take it out, noting that it is heavy and has sharp edges, so gloves and caution are advised. If the rear oil seal shows leakage or the vehicle has high mileage, replacing the seal is highly recommended before reinstalling the flywheel/driveplate. For inspection, clean the flywheel/driveplate to remove grease or oil and check for cracks, rivet grooves, burned areas, and score marks, with light scoring removable using emery cloth. Check for cracked and broken ring gear teeth and use a straight-edge to check for warpage, as resurfacing by a professional machine shop may be necessary for severe wear or damage, along with clutch replacement if resurfacing occurs. Clean and inspect the mating surfaces of the flywheel/driveplate and the crankshaft. For installation, if the engine/transmission adapter plate was removed, reinstall it, then place the flywheel/driveplate on the crankshaft ensuring all bolt holes align, and install the proper bolts, tightening them by hand. Torque the mounting bolts in a crisscross pattern and in three stages, with the remainder of the installation being the reverse of removal.

Inspect the flywheel when the vehicle suffers from excessive transmission gear wear, transmission jumping out of gear, driveline vibration, clutch pedal vibration, clutch slippage, pilot bearing noise or release bearing noise. Visually inspect the flywheel for signs of cracking, warpage, scoring or heat checking. If any of these conditions exist, the flywheel must be removed and resurfaced at an automotive machine shop.

Inspect the flywheel when the vehicle suffers from excessive transmission gear wear, transmission jumping out of gear, driveline vibration, clutch pedal vibration, clutch slippage, pilot bearing noise or release bearing noise. Visually inspect the flywheel for signs of cracking, warpage, scoring or heat checking. If any of these conditions exist, the flywheel must be removed and resurfaced at an automotive machine shop.

For further information on clutch servicing and pilot bearing replacement.

Clean and inspect the mating surfaces of the flywheel/driveplate and the crankshaft. If the crankshaft rear seal is leaking, replace it before reinstalling the flywheel/driveplate.

Inspect the surface for cracks, rivet grooves, burned areas, and score marks. Check for cracked and broken ring gear teeth. Lay the flywheel/driveplate on a flat surface and use a straight-edge to check for warpage.

Raise the vehicle and support it securely on jackstands, then remove the transmission. If it's leaking, now would be a very good time to replace the front pump seal/0-ring (automatic transmission only).

Raise the vehicle and support it securely on jackstands, remove the transmission. If it's leaking, now would be a very good time to replace the front pump seal/O-ring (automatic transmission only).

The remainder of installation is the reverse of the removal procedure.

Clean and inspect the mating surfaces of the flywheel/drive plate and the crankshaft. If the crankshaft rear seal is leaking, replace it before reinstalling the flywheel/drive plate.

Mark the mating position of the flywheel/driveplate and crankshaft flange and then remove the flywheel.

If you are reusing the original flywheel bolts, you should clean the bolt threads and the crankshaft bolt holes and apply Teflon thread sealant to the bolt threads.

Raise the vehicle and support it securely on jack stands. Caution: If the vehicle is equipped with Automatic Ride Control (ARC), make sure the air suspension switch is turned to the OFF position before the vehicle is raised to prevent damage to the system components.

No, the drive plate procedure is virtually the same for the 5.0L V8 as for the other engines in the covered models.
