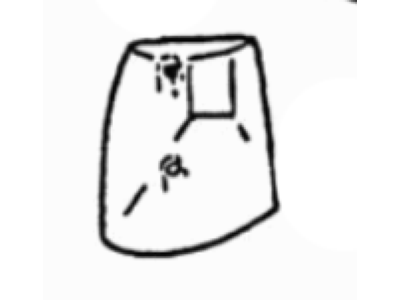

Ford E9TZ-15A201-B Lamp Assembly

You can Select Your Vehicle to check if E9TZ-15A201-B fits your vehicle.

Remove the screws retaining the headlight door for the front side marker light and turn signal. Carefully rotate the headlight door away from the vehicle, rotating the inboard side away from the vehicle. Remove the side marker light, parking and turn signal bulbs and sockets from the headlamp door assembly. They can be removed by turning them. Remove the retaining screws for the lens to be changed and remove it from the headlight door. Install the removed lens assembly and install the bulbs and sockets. Install the headlight door assembly. Check the operation of the lights. For the rear side marker light and rear lamps, remove the 4 screws retaining the lamp assembly to the vehicle. Remove the lamp assembly from the vehicle by pulling it outward. Remove the bulbs and sockets. Install the lamp assembly in position. For the high mount brake light, remove the screws retaining the lamp to the liftgate (Bronco II models) or the cab (Ranger models). Pull the lamp away from the vehicle and disconnect the wiring connector. Some later models retain the lamp socket to the lens with a screw. Remove the screw and pull the lamp socket away from the lens to access the bulbs. If there is no retaining screw, remove the lamp socket from the lens by twisting it and pulling outward. Pull the bulb straight out from the lamp socket to remove it. Install the bulb into the lamp socket. Install the lamp socket to the lens and either twist it to lock it in position or install its retaining screw. Position the lens assembly to the body. Install the lens assembly retaining screws. Check the operation of the lights. For the license plate light, twist the lens counterclockwise. Pull the lamp away from the vehicle. Twist the socket and remove the bulb. For the dome and map lights, remove the plastic cover. Pull the map or area bulb from the dome light assembly. Installation is the reverse of the removal procedure. The Ranger may have an optional rear cargo light which illuminates the pick-up bed. It is incorporated with the high mount brake light. For removal & installation procedures remove the cargo lamp socket and bulb instead of the brake lamp components.
