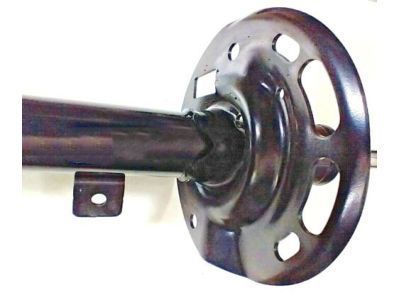

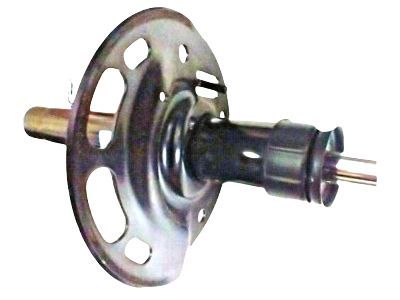

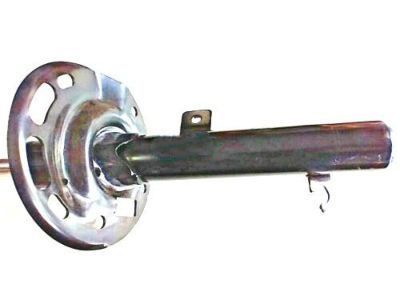

Ford 8S4Z-18124-L Shock Absorber Assy - Front

You can Select Your Vehicle to check if 8S4Z-18124-L fits your vehicle.

Push down on each corner of the vehicle and observe if it returns to a level position within one or two bounces.

The installation process is a reversal of the removal process, ensuring that all the relevant bolts are tightened to their specified torque.

1. Open the trunk or liftgate and remove the interior trim panel to access the shock absorber top mounting nut. 2. Use an Allen key to hold the piston rod and remove the shock absorber upper mounting nut. 3. Chock the front wheels, jack up the rear of the vehicle, and support it on axle stands. Remove the wheels as required. 4. Place a jack under the lower suspension arm/coil spring for support. Unscrew and remove the shock absorber lower mounting bolt, then withdraw the shock absorber from under the vehicle.

Examine the strut for signs of fluid leakage, check the strut piston rod for signs of pitting along its entire length, and inspect the strut body for signs of damage. Test the operation of the strut by moving the piston through a full stroke and then through short strokes of 2 to 4 inches. The resistance felt should be smooth and continuous; if it is jerky, uneven, or if there are visible signs of wear or damage, replacement is necessary.
