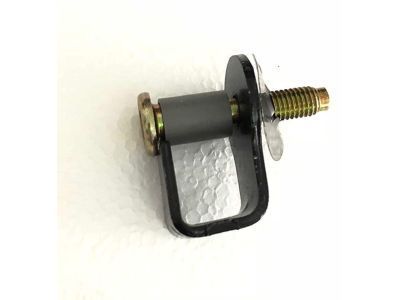

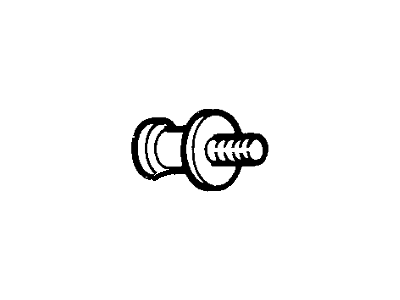

Ford F67Z-7822008-AA Striker - Door Locking Mechanism

You can Select Your Vehicle to check if F67Z-7822008-AA fits your vehicle.

If you want to replace or otherwise deal with the door latch striker, then one thing you need to do is, unscrew the negative battery cable. Subsequently, using a Torx bit, then withdraw the door latch striker stud from the door jamb, while the process of installation is the exact opposite of that and the necessary corrections can also be done at the same time. This striker can be moved in the vertical plane as well as in the lateral, and forward and athwart planes, but it should not be used as a corrective measure for improperly fitting doors. Shimming may be needed in order to adjust the distances to the required measure-between the latch and striker no more than one shim can be installed on one door. It is exercised by applying dark grease on the striker before closing the door; then again unlocking the door then closing and opening the door several times to see the pattern left on the grease. To achieve the required optimal fit of the door striker assembly to the door and either the pillar or quarter panel, loosen the balance of the bolts and then use a lateral movement of the door striker assembly to achieve the correct position before finally tightening the existing bolts where the door latch striker is to be attached.

The door latch striker can be adjusted vertically, laterally, and fore-and-aft.
