How to remove and install the exhaust manifold in four cylinder engine on Ford Escape?

In the year 2008 and the models before it, start by jacking up the vehicle and putting it on the jackstands. Later, it is time to remove the exhaust pipe, as well as the catalytic converter, and, of course, the old flange gasket. Finally, remove the dipstick tube bracket bolt, pull the assembly up out of the engine compartment. Disconnect the electrical connection of the oxygen sensor and take off the device from the exhaust manifold. Subsequently, remove the exhaust manifold heat shield through the use of its bolts that should be unscrewed. Continue with the exhaust manifold bolts then the exhaust manifold and the old manifold gasket as well. Look at the exhaust manifold with special attention to any crack or damage and if there is, then it must be replaced. Wire brush clean all threads of the exhaust maniffold bolts and check for damaging , and replace those damaged ones. All gasket material has to be scraped off the mating surfaces and the surfaces have to be inspected for wear or cracks without damaging the aluminum surfaces. Check the flatness of the exhaust manifold contacting surfaces using a straightedge and a feeler gauge and if the distortion is more than that prescribed, the manifold or cylinder head should be replaced or machined. Apply anti-seize to the threads of the exhaust manifold bolts and studs, and then put on a new gasket and manifold, overtightening the fasteners in a star pattern and in increments to the suggested torque setting. The process of installation is Viv oppose to removal and after starting the engine, tap on the exhaust system for blows. For 2009 and later models when performing the following operations, use jackstands to lift the vehicle: Take off the front exhaust pipe from the exhaust manifold as well as the intermediate exhaust pipe. Remove the wiring harness from the oxygen sensor and, also, remove the exhaust manifold heat shield. Two samples of exhaust manifold mounting nuts should be removed and the ones used for the exercise must be discarded and replaced with new ones as there is no requirement for reusing them The exhaust manifold and its gasket should also be removed and the gasket must also be discarded. Bolt and nut the exhaust manifold mounting studs, check the manifold and refit it, if required, by having it machine flat. Replace the studs for the exhaust manifold and tighten the nuts on those studs as per manufactures recommended torque settings. Position a fresh gasket above the studs, fit on the manifold together with new nuts and then in a sequence-center first and then go outward-tighten nuts incrementally until you reach the outer nut and then loosen all the nuts a bit and then tighten the nuts in the same sequence again. The rest of the installation is simply the reversal of the removal procedure and do not forget to tighten the nuts holding the catalytic converter to the required torque before tightening the converter bracket bolts.

Genuine Ford Escape Exhaust Manifold

Engine Exhaust Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

35 Exhaust Manifolds found

View related parts
Ford Escape Exhaust Manifold Assembly
Part Number: YL8Z-9431-AA
$263.32 MSRP: $362.77
You Save: $99.45 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2006 Ford Escape | 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Exhaust Manifold Assembly
Part Number: BM5Z-9431-A
$449.74 MSRP: $663.33
You Save: $213.59 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Manifold
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 1.6L EcoBoost SCTi -Sigma | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Exhaust Manifold Assembly
Part Number: 5M6Z-5G232-A
$1573.60 MSRP: $2097.01
You Save: $523.41 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust
- Replaced by: AM6Z-5G232-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2008 Ford Escape | 4 Cyl 2.3L Hybrid Gas/Electric DOHC | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Exhaust Manifold And Catalyst Assembly
Part Number: CV6Z-5G232-B
$1058.05 MSRP: $1342.86
You Save: $284.81 (22%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold And Catalyst Assy
- Replaced by: GV6Z-5G232-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 2.5L Duratec (110kW/150PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts

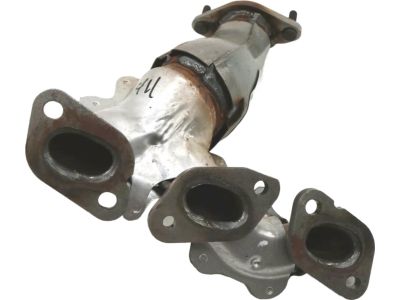

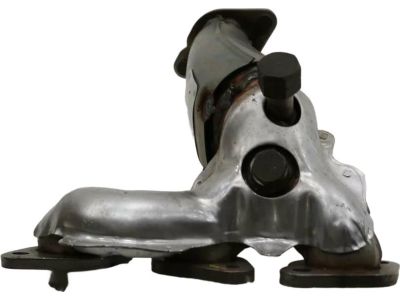

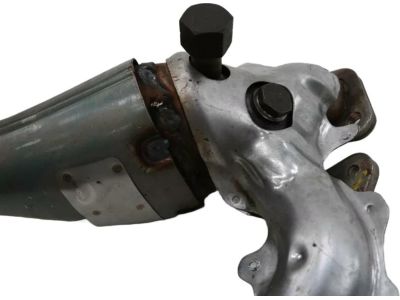

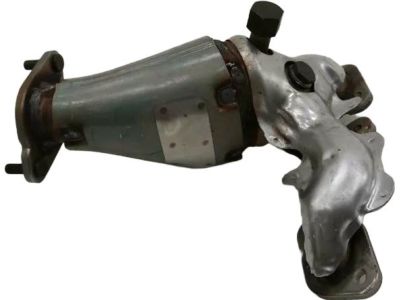

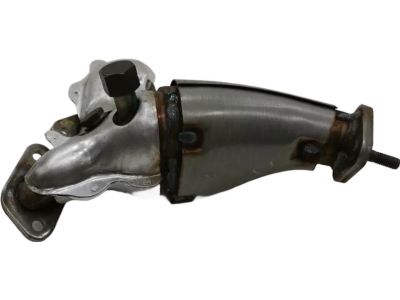

Ford Escape Exhaust Manifold Assembly
Part Number: YL8Z-9430-BA
$413.30 MSRP: $569.40
You Save: $156.10 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2006 Ford Escape | 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
View related parts
Ford Escape Exhaust Manifold Assembly
Part Number: 7E5Z-9430-BA
$70.88 MSRP: $114.50
You Save: $43.62 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2012 Ford Escape | 6 Cyl 3.0L OHC Duratec | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Exhaust Manifold And Catalyst
Part Number: JJ5Z-5G232-A
$617.71 MSRP: $774.29
You Save: $156.58 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold, Manifold W/Converter
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2018-2019 Ford Escape | 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Exhaust Manifold Assembly
Part Number: AM6Z-5G232-A
$1573.60 MSRP: $2097.01
You Save: $523.41 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust; Exhaust Manifold, Manifold, Manifold W/Converter
- Replaces: 5M6Z-5G232-BB, 5M6Z-5G232-A, 9M6Z-5G232-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2012 Ford Escape | 4 Cyl 2.3L Hybrid Gas/Electric DOHC, 4 Cyl 2.5L PFI Gas/Electric | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Exhaust Manifold And Catalyst
Part Number: CV6Z-5G232-J
$1111.81 MSRP: $1411.43
You Save: $299.62 (22%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: CV6Z-5G232-G, CV6Z-5G232-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2019 Ford Escape | 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape EXHAUST MANIFOLD AND CATALYST
Part Number: LX6Z-5G232-A
$773.57 MSRP: $980.00
You Save: $206.43 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold, Manifold W/Converter
- Replaces: LX6Z-5G232-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2022 Ford Escape | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Ford Escape Exhaust Manifold Assembly
Part Number: 9M6Z-5G232-A
$1573.60 MSRP: $2097.01
You Save: $523.41 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust
- Replaced by: AM6Z-5G232-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2011 Ford Escape | 4 Cyl 2.5L PFI Gas/Electric | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Exhaust Manifold And Catalyst Assembly
Part Number: GV6Z-5G232-A
$1058.05 MSRP: $1342.86
You Save: $284.81 (22%)
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold And Catalyst Assy; Exhaust Manifold, Manifold W/Converter
- Replaces: CV6Z-5G232-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 2.5L Duratec (110kW/150PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Exhaust Manifold Assembly
Part Number: 5M6Z-5G232-BB
$1573.60 MSRP: $2097.01
You Save: $523.41 (25%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold Assembly - Exhaust
- Replaced by: AM6Z-5G232-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2006 Ford Escape | 4 Cyl 2.3L Hybrid Gas/Electric DOHC | CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Escape Exhaust Manifold And Catalyst Assembly
Part Number: CV6Z-5G232-G
$1111.81 MSRP: $1411.43
You Save: $299.62 (22%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold And Catalyst Assy
- Replaced by: CV6Z-5G232-J
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2017 Ford Escape | 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape Exhaust Manifold And Catalyst Assembly
Part Number: CV6Z-5G232-D
$1111.81 MSRP: $1411.43
You Save: $299.62 (22%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold And Catalyst Assy
- Replaced by: CV6Z-5G232-J
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2016 Ford Escape | 4 Cyl 2.5L Duratec (110kW/150PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
View related parts
Ford Escape EXHAUST MANIFOLD AND CATALYST
Part Number: PZ1Z-5G232-B
$1573.25 MSRP: $2000.00
You Save: $426.75 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold, Manifold W/Converter
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2023 Ford Escape | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
View related parts
Ford Escape EXHAUST MANIFOLD AND CATALYST
Part Number: PZ1Z-5G232-A
$1492.61 MSRP: $1897.14
You Save: $404.53 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold, Manifold W/Converter
- Replaced by: PZ1Z-5G232-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2023 Ford Escape | 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape EXHAUST MANIFOLD AND CATALYST
Part Number: LX6Z-5G232-D
$1797.25 MSRP: $2285.71
You Save: $488.46 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold, Manifold W/Converter
- Replaced by: LX6Z-5G232-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2021 Ford Escape | 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts
Ford Escape EXHAUST MANIFOLD AND CATALYST
Part Number: LX6Z-5G232-B
$1797.25 MSRP: $2285.71
You Save: $488.46 (22%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold, Manifold W/Converter
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2022 Ford Escape | 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
View related parts

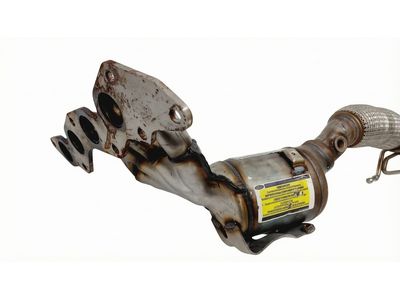

Ford Escape Exhaust Manifold And Catalyst Assembly
Part Number: GV6Z-5G232-B
$636.92 MSRP: $798.57
You Save: $161.65 (21%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Exhaust Manifold And Catalyst Assy
- Replaced by: GV6Z-5G232-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017 Ford Escape | 4 Cyl 2.5L Duratec FFV (125kW/170PS) | 6-Speed Automatic Transmission 6F Mid-Range, Four-Wheel Drive, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)

| Page 1 of 2 |Next >

1-20 of 35 Results

Ford Escape Exhaust Manifold

Exhaust Manifold is an important component of the Ford Escape vehicles since it is responsible for management of hot exhaust gases from the engine to the exhaust system to enhance the efficiency of the engine and minimize emission of dangerous gases. Located at some place depending on the motors layout, Manifold works towards avoiding and reducing or even stopping intake reversion which affects the flow of air and is bad for the engines efficiency. Different exhaust manifolds have been implemented in Ford Escape models, which were mainly made of cast iron and stainless steel. There are parts called headers for solutions because factory parts are not very efficient to eliminate flow restriction and extend velocity of exhaust gas. The geometry and the material used for making the standard manifolds and headers vary greatly, with the variation influencing the efficiency and power of an engine in some way. These two faults should be serviced regularly while the damaged exhaust manifold needs to be replaced and working fine to avoid poor performance of the car and also to ensure the occupants of the vehicle are protected from the dangerous fumes which may result when an exhaust manifold is faulty.

We provide a wide range of Ford Escape Exhaust Manifold at the best prices possible. If you need Ford Escape Exhaust Manifold, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Escape Exhaust Manifold Parts Questions & Experts Answers

Exhaust Manifold Assembly
5M6Z-5G232-A
Q: How to remove and install the exhaust manifold in four cylinder engine on Ford Escape?
A: In the year 2008 and the models before it, start by jacking up the vehicle and putting it on the jackstands. Later, it is time to remove the exhaust pipe, as well as the catalytic converter, and, of course, the old flange gasket. Finally, remove the dipstick tube bracket bolt, pull the assembly up out of the engine compartment. Disconnect the electrical connection of the oxygen sensor and take off the device from the exhaust manifold. Subsequently, remove the exhaust manifold heat shield through the use of its bolts that should be unscrewed. Continue with the exhaust manifold bolts then the exhaust manifold and the old manifold gasket as well. Look at the exhaust manifold with special attention to any crack or damage and if there is, then it must be replaced. Wire brush clean all threads of the exhaust maniffold bolts and check for damaging , and replace those damaged ones. All gasket material has to be scraped off the mating surfaces and the surfaces have to be inspected for wear or cracks without damaging the aluminum surfaces. Check the flatness of the exhaust manifold contacting surfaces using a straightedge and a feeler gauge and if the distortion is more than that prescribed, the manifold or cylinder head should be replaced or machined. Apply anti-seize to the threads of the exhaust manifold bolts and studs, and then put on a new gasket and manifold, overtightening the fasteners in a star pattern and in increments to the suggested torque setting. The process of installation is Viv oppose to removal and after starting the engine, tap on the exhaust system for blows. For 2009 and later models when performing the following operations, use jackstands to lift the vehicle: Take off the front exhaust pipe from the exhaust manifold as well as the intermediate exhaust pipe. Remove the wiring harness from the oxygen sensor and, also, remove the exhaust manifold heat shield. Two samples of exhaust manifold mounting nuts should be removed and the ones used for the exercise must be discarded and replaced with new ones as there is no requirement for reusing them The exhaust manifold and its gasket should also be removed and the gasket must also be discarded. Bolt and nut the exhaust manifold mounting studs, check the manifold and refit it, if required, by having it machine flat. Replace the studs for the exhaust manifold and tighten the nuts on those studs as per manufactures recommended torque settings. Position a fresh gasket above the studs, fit on the manifold together with new nuts and then in a sequence-center first and then go outward-tighten nuts incrementally until you reach the outer nut and then loosen all the nuts a bit and then tighten the nuts in the same sequence again. The rest of the installation is simply the reversal of the removal procedure and do not forget to tighten the nuts holding the catalytic converter to the required torque before tightening the converter bracket bolts.
