Genuine Ford Excursion Brake Disc
Disc Rotor- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
3 Brake Discs found

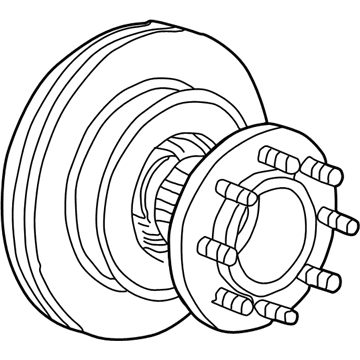

Ford Excursion Hub And Disc Assembly
Part Number: 2U2Z-1V102-CA$93.49 MSRP: $141.65You Save: $48.16 (34%)Ships in 1-2 Business Days
Ford Excursion Hub And Disc Assembly
Part Number: 5U2Z-1V102-B$93.49 MSRP: $141.65You Save: $48.16 (34%)Ships in 1 Business DayFord Excursion Hub And Disc Assembly
Part Number: 1C3Z-1V102-AA$77.76 MSRP: $141.65You Save: $63.89 (46%)Ships in 1-2 Business Days
Ford Excursion Brake Disc
The Brake Disc,also known as disc brake, is the peripheral component of Ford Excursion vehicles and offers the braking pad a surface to work on. Being fitted to the axle or the hub, the rotor turns along with the wheel and when the hydraulic pressure from the calipers is applied, the pads compress against the rotor to slow down, or stop the vehicle. Normally there are two basic types of rotors found in the Ford Excursion models: cast iron rotors and some of the new generation models may come with vented rotors for better cooling systems of the rotors than the older models with solid rotors. Some changes done on the Ford Excursion Brake Disc have involved incorporation of drilled or slotted surface to improve heat dissipation and also reduce on noise but a drawback is that the pads wear out more quickly. It is important to maintain it because features such as warping, scoring or rusting could easily affect the performance. Routine checkups and proper change of the worn out brake pads is essential so that it will not dip off the effectiveness of the Brake Disc in Ford Excursion vehicles.
We provide a wide range of Ford Excursion Brake Disc at the best prices possible. If you need Ford Excursion Brake Disc, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.
Ford Excursion Brake Disc Parts Questions & Experts Answers
- Q: How to inspect, remove, and install brake discs on Ford Excursion?A: Loosen the wheel lug nuts, raise the vehicle, and support it securely on jackstands while applying the parking brake, then remove the wheels. Visually inspect the disc surface for score marks and other damage, noting that light scratches and shallow grooves are normal, but deep grooves require disc removal and refinishing by an automotive machine shop; check both sides of the disc. To check disc runout, place a dial indicator about 1/2-inch from the outer edge of the disc, and if checking a front or rear disc on a 4WD model with single rear wheels, install the lug nuts with flat sides facing in and tighten them securely to hold the disc in place, then set the indicator to zero and turn the disc, ensuring the reading does not exceed the runout limit, as exceeding it necessitates refinishing. The disc must not be machined to a thickness less than the specified minimum thickness, which is cast into the disc, and thickness can be checked with a micrometer at several points. Remove the Brake Calipers without disconnecting the brake hoses and hang them out of the way, then remove the caliper mounting bracket retained by two bolts. For 2WD model front discs, remove the grease cap, wheel bearing retainer nut, spindle nut, outer bearing retainer washer, and outer wheel bearing, then remove the disc/hub. For a front disc on a 4WD model with single rear wheels, remove the lug nuts and pull the disc off the hub; for a truck with dual rear wheels, remove the hub extender bolts and detach the hub extender before removing the disc. For a rear disc on a dual rear wheel axle, remove the hub assembly from the rear axle and unbolt the disc from the hub, while on single rear wheel axles, the disc can be slid off the wheel studs. Installation is the reverse of removal, and on models so equipped, tighten the disc-to-hub bolts to the specified torque before lowering the vehicle and tightening the wheel lug nuts to the appropriate torque.
