How to replace a wheel cylinder on Ford Explorer Sport Trac?

The time for wheel cylinder replacement is usually indicated by fluid leakage or sticky operation. New wheel cylinders are not very expensive at your local auto parts store, and their purchase makes more sense than trying to rebuild one at home. Always replace both rear wheel cylinders at the same time, never just one side. To remove, raise the rear of the vehicle and support it securely on jackstands. Block the front wheels to keep the vehicle from rolling. Remove the brake shoe assembly. Remove all dirt and foreign material from around the wheel cylinder. Disconnect the brake line. To remove the wheel cylinder, disconnect the brake line fitting (A) and remove the two mounting bolts.Don't pull the brake line away from the wheel cylinder. Remove the wheel cylinder mounting bolts. Detach the wheel cylinder from the brake backing plate and immediately plug the brake line to prevent fluid loss and contamination. For installation, place the wheel cylinder in position, install the mounting bolts and tighten them. Connect the brake line and install the brake shoe assembly. Finally, bleed the brakes.

Genuine Ford Explorer Sport Trac Wheel Cylinder

Brake Wheel Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Wheel Cylinders found

View related parts

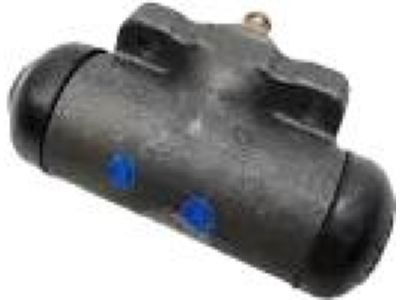

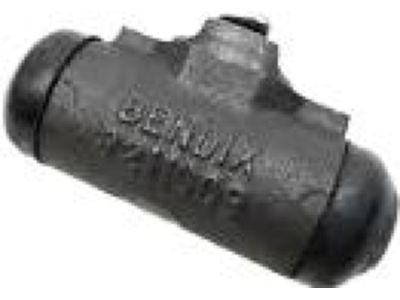

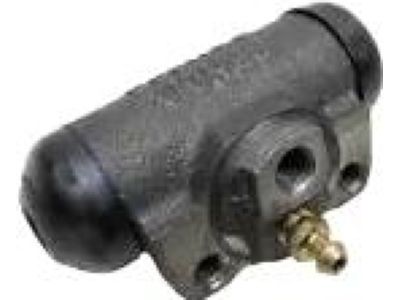

Ford Explorer Sport Trac Cylinder Assembly - Front Brake
Part Number: 1L2Z-2261-AA
Product Specifications
- Other Name: Cylinder Assy - Front Brake; Wheel Cylinder
- Manufacturer Note: Retail
- Position: Passenger Side
- Replaces: 1L2Z-2V261-AA, 1L5Z-2128-AA, 1L5Z-2261-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive
View related parts
Ford Explorer Sport Trac Cylinder Assembly - Front Brake
Part Number: 1L2Z-2261-BA
Product Specifications
- Other Name: Cylinder Assy - Front Brake; Wheel Cylinder
- Manufacturer Note: Retail
- Position: Driver Side
- Replaces: 1L2Z-2V261-BA, 1L5Z-2262-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive
View related parts
Ford Explorer Sport Trac Kit - Wheel Brake Cylinder Repair
Part Number: 1L5Z-2128-AA
Product Specifications
- Other Name: Wheel Cylinder Overhaul Kit
- Replaced by: 1L2Z-2261-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive
View related parts
Ford Explorer Sport Trac Cylinder Assy - Rear Brake
Part Number: 1L5Z-2261-AA
Product Specifications
- Manufacturer Note: Warranty Eligible
- Position: Passenger Side
- Replaced by: 1L2Z-2261-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive
View related parts
Ford Explorer Sport Trac Cylinder Assy - Rear Brake
Part Number: 1L5Z-2262-AA
Product Specifications
- Manufacturer Note: Warranty Eligible
- Position: Driver Side
- Replaced by: 1L2Z-2261-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Ford Explorer Sport Trac | 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, Four-Wheel Drive, Left Hand Drive, Two-Wheel Drive

Ford Explorer Sport Trac Wheel Cylinder

The Wheel Cylinder in Ford Explorer Sport Trac cars is involved in hydraulic drum brake system where by the brake shoes are clutted against the brake drum to result to a slower or stalling of the car. This contains a piston, rubber seal, and a spring that slide back and forth and pushes force on the brake shoes. When the brakes are applied, hydraulic pressure pushes the pistons to the outwards; the return springs pull the shoes and the pistons when the brakes are released. Disadvantages of wheel cylinders include the fact that, through corrosion they can develop leaks which in turn reduce the braking force. General practice that should be adhered to is to inspect and replace the wheel cyclinder along with the brake shoes to enhance safety when driving.

We provide a wide range of Ford Explorer Sport Trac Wheel Cylinder at the best prices possible. If you need Ford Explorer Sport Trac Wheel Cylinder, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Explorer Sport Trac Wheel Cylinder Parts Questions & Experts Answers

Cylinder Assembly - Front Brake
1L2Z-2261-AA
Q: How to replace a wheel cylinder on Ford Explorer Sport Trac?
A: The time for wheel cylinder replacement is usually indicated by fluid leakage or sticky operation. New wheel cylinders are not very expensive at your local auto parts store, and their purchase makes more sense than trying to rebuild one at home. Always replace both rear wheel cylinders at the same time, never just one side. To remove, raise the rear of the vehicle and support it securely on jackstands. Block the front wheels to keep the vehicle from rolling. Remove the Brake Shoe assembly. Remove all dirt and foreign material from around the wheel cylinder. Disconnect the Brake Line. To remove the wheel cylinder, disconnect the brake line fitting (A) and remove the two mounting bolts.Don't pull the brake line away from the wheel cylinder. Remove the wheel cylinder mounting bolts. Detach the wheel cylinder from the brake backing plate and immediately plug the brake line to prevent fluid loss and contamination. For installation, place the wheel cylinder in position, install the mounting bolts and tighten them. Connect the brake line and install the brake shoe assembly. Finally, bleed the brakes.
