What is the function and replacement process of the Brake Transmission Shift Interlock system and Shift Interlock Solenoid on Ford F-150?

The Brake Transmission Shift Interlock (BTSI) system, is a solenoid which is mounted behind the clock spring on the steering column or under the shift lever in the center console as needed for the vehicle; its function is to lock the shift lever in PARK when the key is turned to LOCK or ACCESSORY. If the ignition key is in the RUN position, then magnetic holding device is provided there and the shift lever can be unlocked only when the brake pedal is pressed. The system also disables rotational movement of the Ignition key to the LOCK or the ACCESSORY position without the shift lever in PARK. It is required to check that the ignition key can be turned back to the LOCK position only when the shift lever is in PARK: when the shift lever is in PARK, the key should be turned from OFF to LOCK, and when in any other position-should not rotate from LOCK. The shift lever must be in PARK position when the ignition key is with OFF, RUN, or START positions and cannot shift out of PARK with the key in ACC or LOCK positions. After the key is moved to the RUN position, the shift lever can be manipulated to select the various gears without application of the brake pedal. For solenoid replacement, stick the shift lever to the Neutral position and remove the battery negative terminal. For a steering column-mounted shifter, take off the lower trim panel, knee bolster, steering column shields, steering wheel and clock spring, then disconnect the BTSI electrical connector and get rid of the solenoid. If the shifter is for a center console, then delete the manual shift lever, the overdrive cancel button, and the BTSI electrical connector, then remove the solenoid. Removal is in a way done in the opposite manner to installation. In case of BTSI system failure, one can shift the car manually by depressing an override button below the steering column or by the side of the BTSI solenoid in the centre console to NEUTRAL.

Genuine Ford F-150 Shift Interlock Solenoid

Shift Lock Actuator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Shift Interlock Solenoids found

View related parts
Ford F-150 Solenoid Assembly
Part Number: F2DZ-3Z719-A
$51.63 MSRP: $85.50
You Save: $33.87 (40%)
ADD TO CART
Product Specifications
- Other Name: Solenoid Assy
- Replaces: YC3Z-3Z719-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-2004 Ford F-150 | 6 Cyl 3.8L, 6 Cyl 4.2L, 6 Cyl 4.9L, 8 Cyl 4.6L, 8 Cyl 5.0L, 8 Cyl 5.4L, 8 Cyl 5.8L | 3AT C6, 4AT, 4AT 4R100, 4AT 4R70W, 4AT 4R75W, 4AT AOD, 4AT E4OD, 4MT, 5MT
View related parts

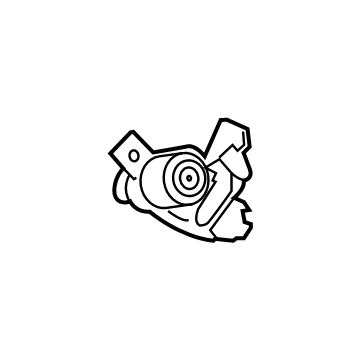

Ford F-150 Solenoid Assembly
Part Number: 7L1Z-3Z719-B
$83.49 MSRP: $126.50
You Save: $43.01 (34%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Solenoid Assy; Actuator, Lock Actuator, Shift Actuator
- Manufacturer Note: Solenoid - Brake shift interlock
- Replaces: 7L1Z-3Z719-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2010 Ford F-150 | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Solenoid Assembly
Part Number: FL3Z-3Z719-A
$107.06 MSRP: $195.00
You Save: $87.94 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Solenoid Assy
- Replaced by: FL3Z-3Z719-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2014-2015 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.5L GTDI, 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 6.2L OHC NA | 10-Speed Automatic Transmission (10R80), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Solenoid Assembly
Part Number: FL3Z-3Z719-C
$107.06 MSRP: $195.00
You Save: $87.94 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaces: BC3Z-3Z719-A, FL3Z-3Z719-A, CC3Z-3Z719-B, CC3Z-3Z719-C, FL3Z-3Z719-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2020 Ford F-150 | 6 Cyl 2.7 L GAS, 6 Cyl 2.7L, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.0L 4V DOHC TC DSL-LION B, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3L Duratec, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.5L GTDI, 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L, 8 Cyl 5.0 L FLEX, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 6.2L OHC NA | 10-Speed Automatic Transmission (10R80), 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Solenoid Assembly
Part Number: BC3Z-3Z719-A
$107.06 MSRP: $195.00
You Save: $87.94 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Solenoid Assy
- Replaced by: FL3Z-3Z719-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Solenoid Assembly
Part Number: CC3Z-3Z719-C
$107.06 MSRP: $195.00
You Save: $87.94 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Solenoid Assy
- Replaced by: FL3Z-3Z719-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2014 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Solenoid Assembly
Part Number: FL3Z-3Z719-B
$107.06 MSRP: $195.00
You Save: $87.94 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: FL3Z-3Z719-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2019 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.0L 4V DOHC TC DSL-LION B , 6 Cyl 3.3L Duratec, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Solenoid Assembly
Part Number: CC3Z-3Z719-B
$107.06 MSRP: $195.00
You Save: $87.94 (46%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Solenoid Assy
- Replaced by: FL3Z-3Z719-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2013 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Solenoid Assembly
Part Number: 4L3Z-3Z719-AA
Product Specifications
- Other Name: Solenoid Assy
- Manufacturer Note: Solenoid - Brake shift interlock
- Replaced by: 7L3Z-3Z719-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2007 Ford F-150 | 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Solenoid Assembly
Part Number: 7L3Z-3Z719-A
Product Specifications
- Other Name: Solenoid Assy; Actuator
- Manufacturer Note: Solenoid - Brake shift interlock
- Replaces: 4L3Z-3Z719-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2008 Ford F-150 | 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 5-Speed Manual Transmission - Mazda M5R2-C, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

Ford F-150 Shift Interlock Solenoid

We provide a wide range of Ford F-150 Shift Interlock Solenoid at the best prices possible. If you need Ford F-150 Shift Interlock Solenoid, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford F-150 Shift Interlock Solenoid Parts Questions & Experts Answers

Solenoid Assembly
7L1Z-3Z719-B
Q: What is the function and replacement process of the Brake Transmission Shift Interlock system and Shift Interlock Solenoid on Ford F-150?
A: The Brake Transmission Shift Interlock (BTSI) system, is a solenoid which is mounted behind the clock spring on the steering column or under the shift lever in the center console as needed for the vehicle; its function is to lock the shift lever in PARK when the key is turned to LOCK or ACCESSORY. If the ignition key is in the RUN position, then magnetic holding device is provided there and the shift lever can be unlocked only when the brake pedal is pressed. The system also disables rotational movement of the Ignition key to the LOCK or the ACCESSORY position without the shift lever in PARK. It is required to check that the ignition key can be turned back to the LOCK position only when the shift lever is in PARK: when the shift lever is in PARK, the key should be turned from OFF to LOCK, and when in any other position-should not rotate from LOCK. The shift lever must be in PARK position when the ignition key is with OFF, RUN, or START positions and cannot shift out of PARK with the key in ACC or LOCK positions. After the key is moved to the RUN position, the shift lever can be manipulated to select the various gears without application of the brake pedal. For solenoid replacement, stick the shift lever to the Neutral position and remove the battery negative terminal. For a steering column-mounted shifter, take off the lower trim panel, knee bolster, steering column shields, steering wheel and clock spring, then disconnect the BTSI electrical connector and get rid of the solenoid. If the shifter is for a center console, then delete the manual shift lever, the overdrive cancel button, and the BTSI electrical connector, then remove the solenoid. Removal is in a way done in the opposite manner to installation. In case of BTSI system failure, one can shift the car manually by depressing an override button below the steering column or by the side of the BTSI solenoid in the centre console to NEUTRAL.
