How to remove and install the instrument cluster in a Lincoln Continental?

Disconnect the cable from the negative battery terminal. Remove the instrument cluster bezel. Detach the shift indicator assembly from the cluster by removing the screw and disconnecting the wire loop from the pin on the column shift indicator. Remove the instrument cluster retaining screws. Reach behind the cluster housing and press on the release lever to disconnect the speedometer cable. You can also reach behind the cluster and press the tab to release the speedometer cable or disconnect the electronic speed sensor. Pull the cluster out and disconnect the electrical connectors. Remove the cluster from the instrument panel. On early models, rotate the bezel out of the opening. On later models, tilt the top of the bezel toward you, then pull it straight out. Installation is the reverse of removal.

How to remove and install an instrument panel on Lincoln Continental?

The instrument panel is heavy and awkward - at least two people should perform this procedure. Instrument panel removal on most later model vehicles is a complicated and tedious job. There are many electrical connectors to tag and disconnect, and often there are hidden plastic fasteners that may break when the panel is removed. It is suggested that only an experienced mechanic should tackle this job, to avoid complications. The following text is only a general guide to the procedure.Remove the steering column covers.Remove the instrument panel trim panels.On most models, the steering column must either be lowered or removed. Remove the steering wheel, disconnect the electrical connectors, and loosen or remove the bolts holding the column to the cowl, then lower the column.Remove the knee bolster, knee bolster reinforcement panel, the glove compartment and the panel below the glove compartment.Disconnect the main electrical connectors behind each end of the dash. On later models, the bulkhead connectors are disconnected by removing a central bolt.On some models the windshield trim, kick panels and lower door opening trim must be removed.Remove the radio, if this hasn't been done already for dashboard trim panel removal.Disconnect any ground straps connecting the instrument panel to the cowl.If there is a floor console or a brace from the instrument panel to the floor tunnel, remove it.Remove the instrument panel mounting bolts. On most models, there are fasteners along the top of the instrument panel, just below the windshield, and one or more other bolts/nuts attaching each end of the instrument panel to the cowl. You may have to open both doors to find panel-mounting fasteners.With an assistant, remove the instrument panel. If there is resistance, have an assistant check for hidden fasteners or still-connected electrical connectors while you hold the panel.Installation is the reverse of the removal procedure.Installation is the reverse of removal. Make sure none of the wiring is crimped when the instrument panel is rotated back into position.

Genuine Lincoln Continental Instrument Cluster

Speedometer Instrument Cluster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

28 Instrument Clusters found

View related parts

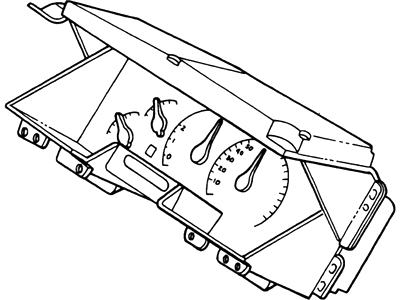

Lincoln Continental Instrument Cluster
Part Number: GD9Z-10849-AA
$815.20 MSRP: $1111.12
You Save: $295.92 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cluster Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020 Lincoln Continental | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.7 L GAS
- 2017 Lincoln Continental | 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

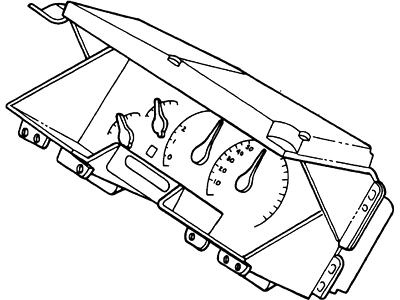

Lincoln Continental Instrument Cluster
Part Number: JD9Z-10849-BA
$778.05 MSRP: $1060.09
You Save: $282.04 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2018 Lincoln Continental | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Lincoln Continental Instrument Cluster
Part Number: GD9Z-10849-CA
$815.26 MSRP: $1111.22
You Save: $295.96 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cluster Assembly
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2020 Lincoln Continental | 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7 L GAS, 6 Cyl 2.7L, 6 Cyl 3.0 L GAS, 6 Cyl 3.0L, 6 Cyl 3.7 L GAS, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Lincoln Continental Instrument Cluster
Part Number: GD9Z-10849-BA
$901.29 MSRP: $1229.38
You Save: $328.09 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017 Lincoln Continental | 4 Cyl 2.0L EcoBoost (240PS) , 6 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.7L DOHC | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Lincoln Continental Instrument Cluster
Part Number: YF3Z-10849-CC
$0.00
Product Specifications
- Other Name: Cluster Assembly
- Manufacturer Note: (See note) - Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), electronic prndl, with floor shift, MPH/KMH, FROM 5/20/00
- Replaces: YF3Z-10849-CA, YF3Z-10849-CB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999-2000 Lincoln Continental | 8 Cyl 4.6L | 4AT AX4N
View related parts
Lincoln Continental Instrument Cluster
Part Number: 1F3Z-10849-AA
Product Specifications
- Other Name: Cluster Assembly
- Manufacturer Note: See note - Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), MPH/KMH, with column shift
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Lincoln Continental | 8 Cyl 4.6L | 4AT 4F50N
View related parts
Lincoln Continental Instrument Cluster
Part Number: 1F3Z-10849-BA
Product Specifications
- Manufacturer Note: See note - Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), KMH/MPH, with column shift
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Lincoln Continental | 8 Cyl 4.6L | 4AT 4F50N
View related parts
Lincoln Continental Instrument Cluster
Part Number: 1F3Z-10849-CA
Product Specifications
- Other Name: Cluster Assembly
- Manufacturer Note: See note - Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), MPH/KMH, with floor shift
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Lincoln Continental | 8 Cyl 4.6L | 4AT 4F50N
View related parts
Lincoln Continental Instrument Cluster
Part Number: 1F3Z-10849-DA
Product Specifications
- Manufacturer Note: See note - Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), KMH/MPH, with floor shift
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2002 Lincoln Continental | 8 Cyl 4.6L | 4AT 4F50N
View related parts

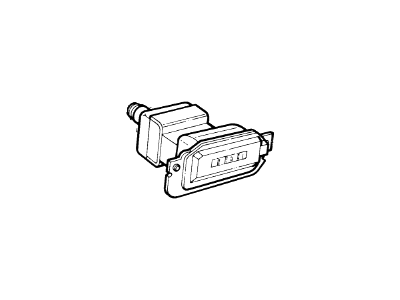

Lincoln Continental Speedometer Assembly
Part Number: E25Y-17255-B
Product Specifications
- Other Name: Speedometer Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1982 Lincoln Continental | 6 Cyl 3.8L, 8 Cyl 5.0L | 4AT AOD
View related parts
Lincoln Continental Speedometer Assembly
Part Number: E35Y-17255-A
Product Specifications
- Other Name: Speedometer Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1983-1985 Lincoln Continental | 6 Cyl 2.4L, 8 Cyl 5.0L | 4AT, 4AT AOD
View related parts
Lincoln Continental Instrument Cluster Assembly
Part Number: F5OY-10849-D
Product Specifications
- Other Name: Cluster Asy-Instrume
- Manufacturer Note: (See Note) Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), electronic instrument cluster, KMH
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995 Lincoln Continental | 8 Cyl 4.6L | 4AT 4F50N, 4AT AX4N, 4AT AX4S, 4AT AXOD-E
View related parts
Lincoln Continental Instrument Cluster
Part Number: F6OZ-10849-DA
Product Specifications
- Manufacturer Note: (See Note) Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), electronic instrument cluster, KMH
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-1997 Lincoln Continental | 8 Cyl 4.6L | 4AT AX4N
View related parts
Lincoln Continental Instrument Cluster
Part Number: F8OZ-10849-BB
Product Specifications
- Manufacturer Note: (See Note) Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), electronic instrument cluster, virtual image, KMH
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998 Lincoln Continental | 8 Cyl 4.6L | 4AT AX4N
View related parts
Lincoln Continental Instrument Cluster
Part Number: XF3Z-10849-AA
Product Specifications
- Other Name: Cluster Assembly
- Manufacturer Note: (See Note) Contains a programmed speedometer/odometer unit for all vehicles (titles & untitled), wtih column mtd. shift, MPH/KMH
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Lincoln Continental | 8 Cyl 4.6L | 4AT AX4N
View related parts
Lincoln Continental Instrument Cluster
Part Number: XF3Z-10849-BA
Product Specifications
- Manufacturer Note: (See Note) Contains a programmed speedometer/odometer unit for all vehicles (titles & untitled), with column mtd. shift, KMH/MPH
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Lincoln Continental | 8 Cyl 4.6L | 4AT AX4N
View related parts
Lincoln Continental Instrument Cluster
Part Number: XF3Z-10849-DA
Product Specifications
- Manufacturer Note: (See Note) Contains a programmed speedometer/odometer unit for all vehicles (titles & untitled), electronic prndl, with floor shift, KMH/MPH
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1999 Lincoln Continental | 8 Cyl 4.6L | 4AT AX4N
View related parts
Lincoln Continental Instrument Cluster
Part Number: YF3Z-10849-AA
Product Specifications
- Manufacturer Note: (See Note) - Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), with column mounted shift, MPH/KMH, BEFORE 12/15/99
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000 Lincoln Continental | 8 Cyl 4.6L | 4AT AX4N
View related parts
Lincoln Continental Instrument Cluster
Part Number: YF3Z-10849-AB
Product Specifications
- Manufacturer Note: (See note) - Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), with column mounted shift, MPH/KMH, FROM 12/15/99 TO 5/20/00
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000 Lincoln Continental | 8 Cyl 4.6L | 4AT AX4N
View related parts
Lincoln Continental Instrument Cluster
Part Number: YF3Z-10849-AC
Product Specifications
- Other Name: Cluster Assembly
- Manufacturer Note: (See note) - Contains a programmed speedometer/odometer unit for all vehicles (titled & untitled), with column mounted shift, MPH/KMH, FROM 5/20/00
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000 Lincoln Continental | 8 Cyl 4.6L | 4AT AX4N

| Page 1 of 2 |Next >

1-20 of 28 Results

Lincoln Continental Instrument Cluster

Lincoln Continental Instrument Cluster is situated just behind the steering wheel and it gives information on performance of the car and road conditions. It encompasses instruments, such as, speedometer, tachometer, fuel gauge and warning lights on characteristics of the engine and exterior lights. It is always important to update the driver on the speed and fuel levels to enhance safety on the road. If your gauges are not working, then a remanufactured factory instrument cluster should do the job for you. Originally, the dashboard is also called the instrument panel that has become the center area containing climate control, infotainment, and safety features owing to the development in the aspects of functionality and electronics.

We provide a wide range of Lincoln Continental Instrument Cluster at the best prices possible. If you need Lincoln Continental Instrument Cluster, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Lincoln Continental Instrument Cluster Parts Questions & Experts Answers

Speedometer Assembly
E35Y-17255-A
Q: How to remove and install the instrument cluster in a Lincoln Continental?
A: Disconnect the cable from the negative battery terminal. Remove the instrument cluster bezel. Detach the shift indicator assembly from the cluster by removing the screw and disconnecting the wire loop from the pin on the column shift indicator. Remove the instrument cluster retaining screws. Reach behind the cluster housing and press on the release lever to disconnect the speedometer cable. You can also reach behind the cluster and press the tab to release the speedometer cable or disconnect the electronic speed sensor. Pull the cluster out and disconnect the electrical connectors. Remove the cluster from the instrument panel. On early models, rotate the bezel out of the opening. On later models, tilt the top of the bezel toward you, then pull it straight out. Installation is the reverse of removal.
Speedometer Assembly
E25Y-17255-B
Q: How to remove and install an instrument panel on Lincoln Continental?
A: The instrument panel is heavy and awkward - at least two people should perform this procedure. Instrument panel removal on most later model vehicles is a complicated and tedious job. There are many electrical connectors to tag and disconnect, and often there are hidden plastic fasteners that may break when the panel is removed. It is suggested that only an experienced mechanic should tackle this job, to avoid complications. The following text is only a general guide to the procedure.Remove the steering column covers.Remove the instrument panel trim panels.On most models, the steering column must either be lowered or removed. Remove the steering wheel, disconnect the electrical connectors, and loosen or remove the bolts holding the column to the cowl, then lower the column.Remove the knee bolster, knee bolster reinforcement panel, the glove compartment and the panel below the glove compartment.Disconnect the main electrical connectors behind each end of the dash. On later models, the bulkhead connectors are disconnected by removing a central bolt.On some models the windshield trim, kick panels and lower door opening trim must be removed.Remove the radio, if this hasn't been done already for dashboard trim panel removal.Disconnect any ground straps connecting the instrument panel to the cowl.If there is a floor console or a brace from the instrument panel to the floor tunnel, remove it.Remove the instrument panel mounting bolts. On most models, there are fasteners along the top of the instrument panel, just below the windshield, and one or more other bolts/nuts attaching each end of the instrument panel to the cowl. You may have to open both doors to find panel-mounting fasteners.With an assistant, remove the instrument panel. If there is resistance, have an assistant check for hidden fasteners or still-connected electrical connectors while you hold the panel.Installation is the reverse of the removal procedure.Installation is the reverse of removal. Make sure none of the wiring is crimped when the instrument panel is rotated back into position.
