How to drain and replace transmission fluid and Filter on Mercury Grand Marquis?

At the specified intervals, the transmission fluid should be drained and replaced. Since the fluid will remain hot long after driving, perform this procedure only after the engine has cooled down completely. Before beginning work, purchase the transmission fluid specified in Recommended lubricants and fluids, a new filter, and gaskets. Never reuse the old filter or gasket! Other tools necessary for this job include jackstands to support the vehicle in a raised position, a drain pan capable of holding at least eight quarts, newspapers, and clean rags. Raise the vehicle and support it securely on jackstands. With the drain pan in place, remove the front and side transmission pan mounting bolts. Loosen the rear pan bolts approximately four turns. Carefully pry the transmission pan loose with a screwdriver, allowing the fluid to drain. Don't damage the pan or transmission gasket surfaces, or leaks could develop. Remove the remaining bolts, pan, and gasket. Carefully clean the gasket surface of the transmission to remove all traces of the old gasket and sealant. Drain the fluid from the transmission pan, clean it with solvent, and dry it with compressed air. Remove the filter from the mount inside the transmission. Install a new seal, gasket, and filter. Tighten the mounting bolts securely. Make sure the gasket surface on the transmission pan is clean, then install a new gasket. Put the pan in place against the transmission and install the bolts. Working around the pan, tighten each bolt a little at a time until the final torque figure is reached. Don't overtighten the bolts! Lower the vehicle and add about four or five pints of automatic transmission fluid through the filler tube. With the transmission in Park and the parking brake set, run the engine at a fast idle, but don't race it. Move the gear selector through each range and back to Park. Check the fluid level. Add fluid if needed to reach the correct level. Check under the vehicle for leaks during the first few trips.

Genuine Mercury Grand Marquis Automatic Transmission Filter

AT Filter

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Automatic Transmission Filters found

View related parts
Mercury Grand Marquis Kit - Transm. Fluid External Filter
Part Number: XC3Z-7B155-F
$64.32 MSRP: $127.82
You Save: $63.50 (50%)
ADD TO CART
Product Specifications
- Other Name: Filter Assembly
- Replaces: XC3Z-7B155-CA, XC3Z-7B155-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2011 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4AT 4R70W, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Mercury Grand Marquis Filter Assembly - Oil
Part Number: XC3Z-7B155-CA
$64.32 MSRP: $127.82
You Save: $63.50 (50%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy - Oil
- Replaced by: XC3Z-7B155-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Mercury Grand Marquis Kit - Transm. Fluid
Part Number: XC3Z-7B155-E
$64.32 MSRP: $127.82
You Save: $63.50 (50%)
ADD TO CART
Product Specifications
- Other Name: Kit - Transm. Fluid External Filter
- Replaced by: XC3Z-7B155-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT 4R70W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Mercury Grand Marquis Filter Assembly
Part Number: F6AZ-7A098-A
$33.86 MSRP: $54.00
You Save: $20.14 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Filter Assy; Filter, Screen
- Replaces: F4TZ-7A098-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-2011 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT 4R70W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Mercury Grand Marquis Filter Assembly - Oil
Part Number: XC3Z-7B155-G
$31.46 MSRP: $50.18
You Save: $18.72 (38%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy - Oil
- Replaces: F8DZ-3F595-AA, FT-116, XC3Z-7B155-D, XC3Z-7B155-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2011 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4-Speed Automatic Transmission 4R75E Livonia, 4AT 4R70W, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Mercury Grand Marquis Filter Assembly - Oil
Part Number: XC3Z-7B155-BA
$31.46 MSRP: $50.18
You Save: $18.72 (38%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy - Oil
- Replaced by: XC3Z-7B155-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2005 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts
Mercury Grand Marquis Screen Assembly
Part Number: D5AZ-7A098-B
$16.76 MSRP: $26.73
You Save: $9.97 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter, Filter Kit
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1980 Mercury Grand Marquis | 8 Cyl 5.0L, 8 Cyl 5.8L | 3AT, 3AT C4, 3AT C6, 4AT AOD
View related parts

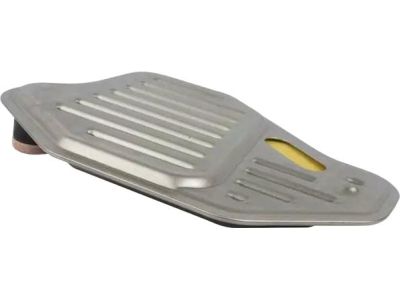

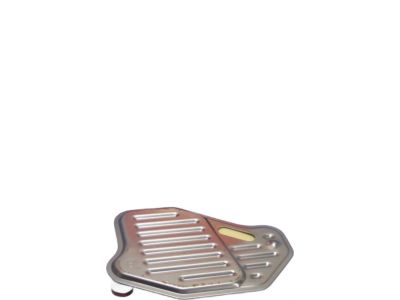

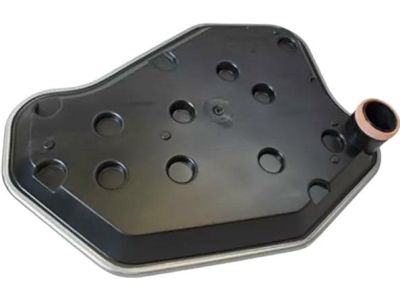

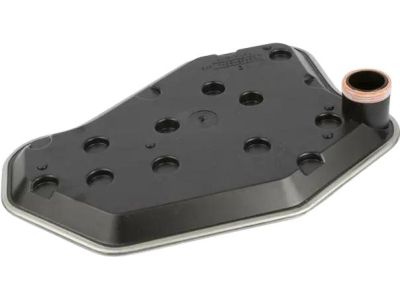

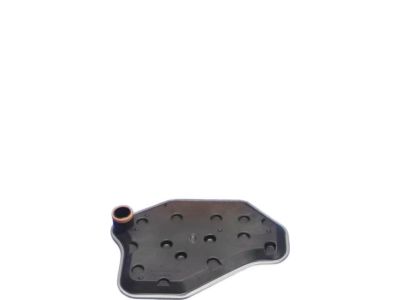

Mercury Grand Marquis Screen Assembly
Part Number: F2VY-7A098-A
$17.78 MSRP: $28.36
You Save: $10.58 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT AOD, 4AT AODE
View related parts
Mercury Grand Marquis Filter Assembly - Oil
Part Number: XC3Z-7B155-D
$31.46 MSRP: $50.18
You Save: $18.72 (38%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy - Oil
- Replaced by: XC3Z-7B155-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT 4R70W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Mercury Grand Marquis Screen Assembly
Part Number: E1AZ-7A098-A
Product Specifications
- Other Name: Screen Assy; Filter, Filter Kit
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1980-1992 Mercury Grand Marquis | 8 Cyl 4.2L, 8 Cyl 4.6L, 8 Cyl 5.0L, 8 Cyl 5.8L | 3AT, 3AT C4, 3AT C6, 4AT, 4AT AOD, 4AT AODE

Mercury Grand Marquis Automatic Transmission Filter

The Automatic Transmission Filter is used in Mercury Grand Marquis vehicles to ensure that the transmission systems are healthy for the vehicle by providing a filtration of the dirt on the fluid transmission. This filter makes it possible to prevent various forms of particulate contaminants from flowing within the transmission; such contaminants could clog and damage the transmission hence the implications to the transmission's performance or durability. In the course of its production, the Mercury Grand Marquis has incorporated several categories of Automatic Transmission Filters. The foremost type is of the internal design and is situated in the transmission housing of the car with a removable steel cast known as a fluid pan; thus, it is quite simple to service or replace during transmission repair. As for the filter configuration, some models may have a more complex placement of the filters that may need a rather extensive disassembly in order to change them. There are also in-line filter models which can be placed between the transmission and the fluid cooler apart from the external spin-on and cartridge-type filters for easier servicing and superior filtration.

We provide a wide range of Mercury Grand Marquis Automatic Transmission Filter at the best prices possible. If you need Mercury Grand Marquis Automatic Transmission Filter, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Mercury Grand Marquis Automatic Transmission Filter Parts Questions & Experts Answers

Kit - Transm. Fluid External Filter
XC3Z-7B155-F
Q: How to drain and replace transmission fluid and Filter on Mercury Grand Marquis?
A: At the specified intervals, the transmission fluid should be drained and replaced. Since the fluid will remain hot long after driving, perform this procedure only after the engine has cooled down completely. Before beginning work, purchase the transmission fluid specified in Recommended lubricants and fluids, a new filter, and gaskets. Never reuse the old filter or gasket! Other tools necessary for this job include jackstands to support the vehicle in a raised position, a drain pan capable of holding at least eight quarts, newspapers, and clean rags. Raise the vehicle and support it securely on jackstands. With the drain pan in place, remove the front and side transmission pan mounting bolts. Loosen the rear pan bolts approximately four turns. Carefully pry the transmission pan loose with a screwdriver, allowing the fluid to drain. Don't damage the pan or transmission gasket surfaces, or leaks could develop. Remove the remaining bolts, pan, and gasket. Carefully clean the gasket surface of the transmission to remove all traces of the old gasket and sealant. Drain the fluid from the transmission pan, clean it with solvent, and dry it with compressed air. Remove the filter from the mount inside the transmission. Install a new seal, gasket, and filter. Tighten the mounting bolts securely. Make sure the gasket surface on the transmission pan is clean, then install a new gasket. Put the pan in place against the transmission and install the bolts. Working around the pan, tighten each bolt a little at a time until the final torque figure is reached. Don't overtighten the bolts! Lower the vehicle and add about four or five pints of automatic transmission fluid through the filler tube. With the transmission in Park and the parking brake set, run the engine at a fast idle, but don't race it. Move the gear selector through each range and back to Park. Check the fluid level. Add fluid if needed to reach the correct level. Check under the vehicle for leaks during the first few trips.
