Internal Parts - Clutches fit your 1994 Ford Ranger 6 Cyl 3.0L 4-Speed Automatic Transmission A4LD
Currently shopping for
1994 Ford Ranger
Change VehicleVehicle Options
6 Cyl 3.0L; 4-Speed Automatic Transmission A4LDVehicle Options
6 Cyl 3.0L; 4-Speed Automatic Transmission A4LDCategories Close X
Currently selected
Automatic Transmission
Other Categories
Accelerator Linkage, Air Cleaner & Speed Control
Air Conditioner, Radio & Shock Absorbers
Alternator, Battery, Distributor & Starter
Console, instruments, mirrors, windshield
Door glass and fittings
EM Exterior Moulding
Engine
Fenders & Hood
Frame, Exhaust System & Springs
Front Axle & Steering
Fuel System & Manifolds
Fuel filler, luggage carrier, rear door
IT Body & Soft Trim Parts
Lamps & Wiring
Manual Transmission
Radiator & Grill
Rear Axle, Drive & Coupling Shafts
SM Sheet metal
Seats and belts
Speedometer, Bumpers, Mirrors & Wipers
Wheels & Brakes
Parts Questions
Sort by:
Recommended
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- SCREW (INTERM. AND O/DRV. FRONT BAND ADJUSTING)
E7TZ-7C492-A
Screw - Adjusting- Intermediate and overdrive band
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 7C492
- Callout Name: 7C492
$12.25 $8.601
-388307-S100
Nut - Sealing- (MM-54-HA) nut (7C492 to 7005) 1/2" - 16 - (1) reqd. interm. band (1) reqd. o/drv. band
- Require Quantity: 2
- Package Quantity: 4
- Callout Name: 7C492
- Replaced By: -E825100-S102
$6.65 $3.904
E5TZ-7L495-A
BEARING ASY. (O/DRV. INNER RACE)Bearing- Bearing - #2 thrust - located between 7B446 and 7A658
- Callout Name: 7L495
- Replaced By: 1W4Z-7L495-AA
$21.83 $15.331
$43.14 $31.571
- PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) DIRECT CLUTCH
E9TZ-7B442-D
Driven Plate - Steel- External - steel
External steel - Require Quantity: 4
- Package Quantity: 4
- Base Number: 7B442
- Callout Name: 7B164
$10.46 $7.354 - External - steel
- E9TZ-7B164-D
Plate Assy - Drive- Internal friction
- Require Quantity: 4
- Package Quantity: 1
- Callout Name: 7B164
$13.22 $8.511
F1TZ-7A480-B
SPRING (CLUTCH PISTON) DIRECT AND HIGH CLUTCHSpring- #74DT 7C151-BB
#74DT 7C151-BB, A4LD - Require Quantity: 20
- Package Quantity: 20
- Base Number: 7A480
- Callout Name: 7A480
$5.85 $4.1120- #74DT 7C151-BB
E9TZ-7D063-A
GEAR ASY. (SUN - FWD/REVERSE AND OVERDRIVE) FORWARD/REVERSE SUN GEARGear Assy - Sun- GEAR ASY. (SUN - FWD/REVERSE AND OVERDRIVE) FORWARD/REVERSE SUN GEAR
- Base Number: 7D063
- Callout Name: 7D063
- PLATE (CLUTCH PRESSURE) DIRECT CLUTCH
-377444-S
Ring - Retaining- (QQ-98B) 7" O.D. - .094" thick, retaining ring 7B066 to 7A360
(QQ-98B) 7" O.D. - .094" thick, retaining ring 7B066 to 7D044 - Base Number: 377444-S
- Callout Name: 7B066
$22.60 $13.001
- SPRING (CLUTCH PISTON DISC) FORWARD CLUTCH
- $15.57 $10.931
- GEAR (FORWARD RING)
$59.00 $41.061
-377132-S
GEAR (RING)Retainer- (QQ-94-A) - retainer - 4 21/32" snap
- Base Number: 377132-S
- Callout Name: 7A153
$25.40 $14.864
- GEAR ASY. (SUN)
- PLATE (CLUTCH PRESSURE) FORWARD CLUTCH
-E860115-S
Retainer- (AQ-35-H) retaining ring - (7B066 to 7A360) - M125.1 x 1.37 - forward clutch
- Base Number: E860115-S
- Callout Name: 7B066
$3.25 $1.914
-E860116-S
Retainer- (AQ-35-K) retaining ring - (7B066 to 7A360) - M125.1 x 1.73 - forward clutch
- Base Number: E860116-S
- Callout Name: 7B066
$3.25 $1.914
-E860117-S
Retainer- (AQ-35-M) retaining ring - (7B066 to 7A360) - M125.1 x 2.08 - forward clutch
- Base Number: E860117-S
- Callout Name: 7B066
$4.25 $2.494- -E860118-S
Retainer- (AQ-35-P) retaining ring - (7B066 to 7A360) - M125.1 x 2.44 - forward clutch
- Base Number: E860118-S
- Callout Name: 7B066
$4.25 $2.494
C6AZ-7B066-A
Plate - Clutch Pressure- Forward clutch front - triangle depression on face of plate
Front - 19/64" thick - 5 1/8" I.d. - 26 teeth - Location: Front
- Base Number: 7B066A
- Callout Name: 7B066
$21.50 $14.711- C6AZ-7B066-B
Plate - Clutch Pressure- Direct drive clutch, forward clutch rear
Rear - 11/32" thick - 5 1/8" I.D. - 26 teeth - Location: Rear
- Base Number: 7B066
- Callout Name: 7B066
$42.00 $28.731
$18.17 $12.431
- SHAFT ASY. (OUTPUT)
FOTZ-7060-D
Shaft Assy - Output- 13 57/64 long (no lubrication holes), 4.0L - 4x4
- Callout Name: 7060
- Replaced By: XL2Z-7060-BA
$91.67 $62.701 - -387031-S5
Retainer- Copper flash plate (QQ-16-EA) ring - 5/64" thick - 1 11/32" I.D. - (retains 7D164 to 7060)
- Base Number: 387031-S5
- Callout Name: 7060
E2TZ-7060-A
Shaft Assy - Output- 23 3/16" long , 25 , 34 , 36 teeth , 31 splines , 8 tooth speedo. gear rolled on shaft , 2/W/D
- Callout Name: 7060
- FOTZ-7060-C
Shaft Assy - Output- 19 5/64 long , 7 tooth speedo. gear rolled on shaft , 4.0L , 4x2
- Callout Name: 7060
- $6.65 $3.904
- CASE ASY.
-N802662-S2
Bolt- (AB-175-NE) bolt (7005 to 6007) M10 x 40mm (metric) box head
- Require Quantity: 2
- Package Quantity: 10
- Base Number: HB1
- Callout Name: 7005
$6.20 $3.6310
$1355.22 $975.561
-N606062-S36
Bolt- (AB-111-EF) bolt (7005 to 6007) M10 x 50mm (metric) hex head
- Base Number: N606062-S36
- Callout Name: 7005
$13.731
- -E804373-S
SUPPORT ASY. (CENTER)Screw- (AU-23-C) screw (7A130 to 7005) cap hex - M6 x 15 (metric)
- Callout Name: 7A130
- Replaced By: -W705407-S300
$13.731
- RETAINER (CLUTCH PISTON SPRING) FORWARD CLUTCH
-E860109-S
Ring- (AQ-30-D) ring (7A527 to 7A360) retaining - 34mm (metric)
- Base Number: E860109-S
- Callout Name: 7A527
$3.25 $1.914
$12.82 $9.001
- $3.25 $1.914
- RETAINER and SPRINGS (OVERRUNNING CLUTCH)D4ZZ-7D191-A
Kit- Use with D4ZZ 7C498,A , Incl. (10) 7D170 spring & retainer , 2.3, 2.9 & 3.0L
- Base Number: 7D191
- Callout Name: 7D191
$255.35 $186.881
- GEAR ASY. (SUN - FORWARD) FORWARD SUN GEAR-E860121-S
Ring- (AQ-45-D) ring (7D063 to 7D064) - M39 (metric)
- Require Quantity: 2
- Package Quantity: 12
- Base Number: E860121-S
- Callout Name: 7D063
$2.22 $1.3012
- $2.22 $1.3012
$2.83 $1.666
- HUB (FORWARD RING GEAR)-E860122-S
Ring- (AQ-40-K) retaining ring (7B067 to 7D392) 87mm (metric) - use w/all 7A398 planet assy.
- Base Number: E860122-S
- Callout Name: 7B067
$2.83 $1.666 - $31.33 $21.431
- HUB (OUTPUT SHAFT)-E860122-S
Ring- (AQ-40-K) ring (7D164 to 7A153) M87 (metric)
- Base Number: E860122-S
- Callout Name: 7D164
$2.83 $1.666
-E860527-S
Plug- (AQ-8-HC) ring (7D164 to 7060) M25 x 2.0 (metric)
- Base Number: E860527-S
- Callout Name: 7D164
$4.25 $2.494
$3.25 $1.914
- RETAINER (CLUTCH PISTON SPRING) DIRECT AND HIGH CLUTCH-E860125-S
Ring- (AQ-30-K) ring (7A527 to 7D044) retaining - 63mm (metric)
(AQ-30-K) ring (7A527 to 7L669) retaining - 63mm (metric) - Base Number: E860125-S
- Callout Name: 7A527
$3.25 $1.914
$14.92 $10.471
- PLATE (CLUTCH PRESSURE) REVERSE, DIRECT AND HIGH CLUTCH
-E860126-S
Retainer- (AQ-35-R) retaining ring - M130.1 x 1.37 - (7B066 to 7D044/7L669)
- Base Number: E860126-S
- Callout Name: 7B066
$4.25 $2.494 - -E860127-S
Retainer- (AQ-35-T) retaining ring - M130.1 x 1.73 - (7B066 to 7D044/7L669)
- Base Number: E860127-S
- Callout Name: 7B066
$4.25 $2.494 - -E860128-S
Retainer- (AQ-35-V) retaining ring - M130.1 x 2.08 - (7B066 to 7D044/7L669)
- Base Number: E860128-S
- Callout Name: 7B066
$4.25 $2.494
-E860129-S
Retainer- (AQ-35-X) retaining ring - M130.1 x 2.44 - (7B066 to 7D044/7L669)
- Base Number: E860129-S
- Callout Name: 7B066
$3.25 $1.914
$11.43 $8.031
- $4.25 $2.494
-N805260-S
PUMP ASY. (FRONT FLUID)Bolt- (AB-91-E) bolt (7A103 to 7005) M8 x 1.25 x 65 hex head (metric)
- Require Quantity: 9
- Package Quantity: 4
- Base Number: HS1
- Callout Name: 7A103
$10.00 $5.854
- CARRIER/PLANET ASY. (PLANET GEAR O/DRV.)2L5Z-7B446-DA
Carrier - Overdrive Planet Gears- Service Replacement Part
- Base Number: 7B446
- Callout Name: 7B446
- Replaced By: 2L5Z-7B446-AA
$251.67 $172.141 - F7TZ-7B446-AA
Carrier - Overdrive Planet Gears- Service replacement part, BEFORE 3/6/99
- Callout Name: 7B446
- Replaced By: 2L5Z-7B446-AA
$251.67 $172.141 - XL2Z-7B446-DA
Carrier - Overdrive Planet Gears- Service Replacement Part
- Callout Name: 7B446
- Replaced By: 2L5Z-7B446-AA
$251.67 $172.141
- SEAL ASY. (FRONT FLUID PUMP)
C2AZ-7A248-A
Seal Assembly - Oil- Small - 2" I.D. x 2 3/4" O.D.
- Callout Name: 7A248
- Replaced By: F2VY-7A248-A
$18.83 $13.001 - $33.33 $22.801
- E5TZ-7A248-A
Seal Assy - Oil- #84GT 7A248-A3A, A3B - Note: Must be used with "Stepped/Staked Converter Housing Bore
- Base Number: 7A248
- Callout Name: 7A248
$12.50 $8.551
- BEARING ASY. /WASHER (PLANET CARRIER THRUST)D4ZZ-7A166-A
Washer - Thrust- #8 and #9 thrust washer , use w/3 pinion aluminum carrier , reverse planet only (7D006) , 2.3L
#8 and #9 thrust washer , use w/3 pinion aluminum carrier , reverse planet only (7D006) , 3.0L - Callout Name: 7A166
$20.35 $14.901 - $9.97 $7.181
- C6AZ-7A166-B
Washer - Thrust- #6 tabs , (1) regd. for all forward planet Carrier assy. (2) reqd. for all 3 pinion gear reverse planet carrier assy.
- Callout Name: 7A166
- C6AZ-7D235-A
RACE (SUN GEAR THRUST BEARING)Race Assy - One-Way Clutch- Rear , 1 7/16" I.D. x 2" O.D. , (use as forward planet thrust bearing race)
- Location: Rear
- Callout Name: 7D235
$21.35 $15.371
$30.04 $21.981

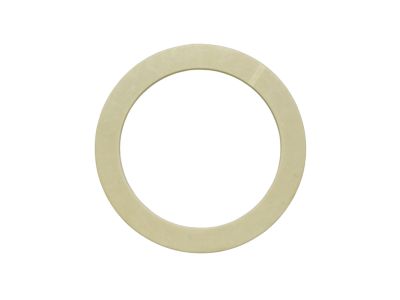

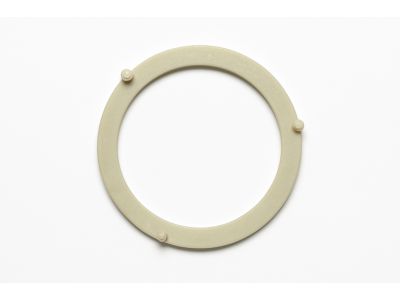

C9AZ-7D090-A
WASHER (FORWARD CLUTCH HUB THRUST)Washer - Thrust- #8c Thrust
2 3/16" I.D. x 2 7/8" O.D. - Base Number: 7D090
- Callout Name: 7D090
$5.78 $3.722- #8c Thrust
- WASHER (OUTPUT SHAFT THRUST - REAR)
$71.80 $45.811 - D3TZ-7B368-A
Washer - Output Shaft Flange- 1 3/4" I.D.
WASHER (OUTPUT SHAFT THRUST - REAR) - Callout Name: 7B368
- 1 3/4" I.D.
D4ZZ-7A153-A
GEAR (RING) OUTPUT SHAFT RING GEARRing Gear- 57 Teeth
- Base Number: 7A153
- Callout Name: 7A153
$64.17 $44.661
- SEAL (CLUTCH PISTON FLUID) FORWARD CLUTCH$2.57 $1.656
- WASHER (OUTPUT SHAFT HUB THRUST)$18.75 $13.731
- PISTON ASY. (CLUTCH) FORWARD CLUTCH
$47.50 $32.491 - D6AZ-7A262-A
Piston- #D6AP 7A258-AA or AB
Use in forward clutch - D6AP 7A258-AA, AB - Base Number: 7A262
- Callout Name: 7A262
- PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) REVERSE CLUTCH
E9TZ-7B442-E
Driven Plate - Steel- External , steel
External steel - Base Number: 7B442
- Callout Name: 7B164
$9.75 $6.846 - External , steel
E3ZZ-7D095-A
BAND ASY. (REVERSE)Band - Transmission Low-Reverse- Callout Name: 7D095
- Replaced By: 1L5Z-7D095-AA
$109.67 $75.011
E5TZ-7660-A
ADAPTOR (O/DRV. CLUTCH)Connector- 24 internal , 8 external teeth
- Base Number: 7660
- Callout Name: 7660
$12.32 $8.651
E5TZ-7C096-A
BEARING ASY./WASHER (INTERM. BRAKE DRUM THRUST)Washer - Thrust- Washer - #5 thrust - #84GT 7D428-AA - used in all except 4.0L with snap type input shell, A4LD
- Callout Name: 7C096
$18.75 $13.731
E5TZ-7C122-A
SNAP RING (CENTER SUPPORT RETAINING)Snap Ring- Callout Name: 7C122
- Replaced By: -W702465-S300
$13.00 $7.611
E5TZ-7D025-A
SEAL (O/DRV. BRAKE DRUM)Seal- Scarf cut seal - 1.9mm x 2.2mm thick
- Require Quantity: 2
- Package Quantity: 2
- Base Number: 7D025
- Callout Name: 7D025
$12.37 $7.962
- E5TZ-7D063-A
GEAR ASY. (SUN - O/DRV.) OVERDRIVE FRONT SUN GEARGear Assy - Sun- Callout Name: 7D063
- Replaced By: F7RZ-7D063-AA
$36.67 $25.741
E5TZ-7D430-A
STRUT (INTERM. AND O/DRV. BRAKE BAND ANCHOR)Strut - Intermediate Brake- Overdrive and intermediate bands
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 7D430
- Callout Name: 7D430
$80.50 $55.061
E7RY-7330-A
LEVER (INTERM. SERVO) INTERMEDIATE SERVOLever - Intermediate Band Actuating- #A, 2.9, 3.0 & 4.0L
#A, 3.0L & 4.0L - Callout Name: 7330
- Replaced By: F5TZ-7330-A
$13.53 $9.501- #A, 2.9, 3.0 & 4.0L
E7RY-7A653-A
BRACKET (OVERDRIVE BAND ANCHOR)Bracket - Overdrive Band- Overdrive band anchor bracket
- Base Number: 7A653
- Callout Name: 7A653
$11.37 $7.981
E8TZ-7A262-A
PISTON ASY. (CLUTCH) OVERDRIVE COAST CLUTCHPiston- #88DT 7A258-AA, 2.3L, 3.0L
Includes E8TZ 7D404-A and E8TZ 7A548-A flair lip seals - 88DT-7A258-AA - Callout Name: 7A262
- Replaced By: F77Z-7A262-BA
$37.83 $25.881
E8TZ-7A548-A
SEAL (CLUTCH PISTON FLUID) OVERDRIVE COAST CLUTCHSeal- 4 7/64" OD flair lip seal - outer
- Location: Outer
- Base Number: 7A548
- Callout Name: 7A548
$14.00 $9.013
E8TZ-7D404-A
SEAL (CLUTCH PISTON)Seal- Seal - inner - flair lip - Overdrive/Coast or Direct/High clutch
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 7D404
- Callout Name: 7D404
$74.73 $37.611
- SHAFT (INPUT)
$56.83 $38.871
E9TZ-7B070-B
SPRING (CLUTCH PISTON DISC) INTERMEDIATE CLUTCHSpring- Base Number: 7B070
- Callout Name: 7B070
$78.33 $54.521
E9TZ-7C122-A
SNAP RING (DIRECT CLUTCH SUPPORT SPRING RETAINER)Ring- Retain 7F235 to 7D044
- Base Number: 7C122
- Callout Name: 7C122
$22.423
E9TZ-7D234-A
BEARING ASY. (FORWARD CLUTCH THRUST)Bearing- Located between 7B067 and 7A398 planet - Located between 7A398 and 7D063 sun gear
- Base Number: 7D234
- Callout Name: 7D234
$16.64 $10.712
- F1TZ-7A480-A
SPRING (CLUTCH PISTON) FORWARD CLUTCHSpring- #74DT 7C151-AB
- Require Quantity: 20
- Package Quantity: 15
- Base Number: 7A480
- Callout Name: 7A480
$0.92 $0.6415
- PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) FORWARD CLUTCH
F2TZ-7B164-A
Plate Assy - Drive- Internal - friction
Internal friction - Require Quantity: 4
- Package Quantity: 4
- Base Number: 7B164
- Callout Name: 7B164
$17.79 $12.504 - Internal - friction
- $24.47 $17.621
- $5.22 $3.666
F2TZ-7F374-AA
BEARING ASY. (FORWARD PLANET THRUST)Bearing Assy - Needle- Bearing - #7 thrust
- Base Number: 7F374
- Callout Name: 7F374
$43.33 $30.421
F3TZ-7A153-A
GEAR (RING) OVERDRIVE RING GEARRing Gear- Use with F3TZ 7A089-B plastic one-way clutch only
- Base Number: 7A153
- Callout Name: 7A153
$59.50 $40.701
- SHELL (INPUT)F3TZ-7D064-A
Shell - Transmission Input- Snap type shell , A4LD , 4.0L
- Base Number: 7D064
- Callout Name: 7D064
$62.10 $45.451
FOTZ-7D064-A
Shell - Transmission Input- Non,snap type shell , A4LD
- Base Number: 7D064
- Callout Name: 7D064
$105.12 $76.931
F3TZ-7D429-A
SEAL (INTERM. BRAKE DRUM)Seal- Thick - 66.65mm x 60.65mm x 2.6mm thick - rubber
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7D429
$19.84 $14.521
$42.39 $29.753
FOTZ-7A262-B
PISTON ASY. (CLUTCH) REVERSE, DIRECT AND HIGH CLUTCHPiston- #90DT 7A258-BB, BC, 4.0L
- Base Number: 7A262
- Callout Name: 7A262
$44.17 $24.251
FOTZ-7A398-E
PLANET ASY. (FORWARD)Planet Assy - Forward- Kit - replaces 3-4 pinion planetary - includes 6 pinion planetary, ring gear hub, thrust bearing, thrust washer, bearing, and I.S.
- Base Number: 7B067
- Callout Name: 7A398
$110.01 $80.511
FOTZ-7A548-A
SEAL (CLUTCH PISTON FLUID) DIRECT AND HIGH CLUTCHSeal- 4 17/64" OD flair lip seal - outer
- Location: Outer
- Base Number: 7A548
- Callout Name: 7A548
$6.48 $4.183
FOTZ-7B070-A
SPRING (FORWARD CLUTCH CUSHION)Spring - Clutch Cushion- Rubber cushion spring - 4 1/2" O.D. x 19.64" wide
- Callout Name: 7B070
- Replaced By: XL2Z-7B070-BA
$13.05 $9.161
- YL2Z-7A103-JB
PUMP ASY. (FRONT PUMP)Support Assy - Oil Pump- Service Replacement Part
- Callout Name: 7A103
$137.28 $100.471
- BODY ASY. (GOVERNOR)
-E800156-S72
Screw- (AB-117-F) bolt (7C063 to 7D220) M6 x 20 (metric), 3.0L
- Require Quantity: 2
- Package Quantity: 1
- Base Number: E800156-S72
- Callout Name: 7C063
- $0.00
- PLANET ASY. (REVERSE)-E860119-S
Retainer- (AQ-35-F) ring (7D006 to 7C498) - M110.1 x 1.6 (metric)
- Base Number: E860119-S
- Callout Name: 7D006
- E7SZ-7D006-AA
Gear Assy - Planet- Kit - includes 6 pinion planetary, output shaft hub, 2 thrust washers and I.S. - replaces 3 & 4 pinion planetary assemblies - Important: all pieces of kit must be used and I.S. instructions followed exactly., 2.3L
Kit - includes 6 pinion planetary, output shaft hub, 2 thrust washers and I.S. - replaces 3 & 4 pinion planetary assemblies - Important: all pieces of kit must be used and I.S. instructions followed exactly., 3.0L - Callout Name: 7D006
- WASHER (FRONT PUMP SUPPORT THRUST)
C6AZ-7D025-A
SEAL (INTERMEDIATE BRAKE DRUM)Seal- Require Quantity: 2
- Package Quantity: 1
- Base Number: 7D025
- Callout Name: 7D025
- D4ZZ-7190-A
ROLLER (OVERRUNNING CLUTCH)Roller- 2.3, 2.9 & 3.0L
- Require Quantity: 10
- Package Quantity: 1
- Base Number: 7190
- Callout Name: 7190
D4ZZ-7D029-A
STRUT (INTERM. AND OVERDRIVE SERVO BAND APPLY)Strut - Overdrive Band- Intermediate and overdrive, 2.3L
Intermediate and overdrive, 3.0L
Intermediate and overdrive, 4.0L - Require Quantity: 2
- Package Quantity: 1
- Base Number: 7D029
- Callout Name: 7D029
- SHAFT (INTERM. AND O/DRV. BAND ACTUATING LEVER)
- E5TZ-7D433-A
Shaft - Intermediate Band Actuating- Overdrive band - 3 15/16" long
- Base Number: 7D433
- Callout Name: 7D433
D9AZ-7D034-B
BAND ASY. (INTERMEDIATE SERVO)Band Assy- BAND ASY. (INTERMEDIATE SERVO)
- Callout Name: 7D034
E1FZ-7F374-A
BEARING ASY. (FORWARD CLUTCH CYLINDER THRUST)Bearing Assy - Needle- Located between 7A360 cyl. and 7A130 support
- Base Number: 7F374
- Callout Name: 7F374
- WASHER (CENTER SUPPORT THRUST)E5TZ-7L326-A
Washer - Thrust- #3 thrust washer - 76mm OD x 63mm ID x 1.6mm thick, A4LD - except 1993 4.0L with snap type shell
- Callout Name: 7L326
F1TZ-7L326-A
Washer - Thrust- #F1TP 7L326-AA STMP - color black - replaces washer w/#1 stamp
- Base Number: 7L326
- Callout Name: 7L326
E9TZ-7A089-B
CLUTCH ASY. (ONE-WAY) INTERMEDIATE CLUTCHClutch Assy- Base Number: 7A089
- Callout Name: 7A089
- CYLINDER ASY. (FORWARD CLUTCH)
E9TZ-7A360-A
Cylinder - Forward Clutch- 8 plate clutch cyl. - See Note 1
Incl. (1) D9AZ 7B070-A spring - 8 plate clutch cyl. - See Note 1 - Callout Name: 7A360
- FOTZ-7A360-B
Cylinder - Forward Clutch- #4 grooves - O.D. cyl. 6 plate cyl., 4.0L
- Base Number: 7A360
- Callout Name: 7A360
- RETAINER (CLUTCH DISC SPRING)
E9TZ-7A548-A
SEAL (CLUTCH PISTON FLUID) OVERDRIVE CLUTCHSeal- Outer (large) 7 3/4" O.D. flair lip seal refer to group 7F225 for inner seal
- Callout Name: 7A548
- SEAL (CLUTCH PISTON FLUID) COAST CLUTCH
- SEAL (CLUTCH PISTON FLUID) DIRECT CLUTCH
- SHAFT ASY. (OVERDRIVE CENTER)
- E9TZ-7B066-E
PLATE (CLUTCH PRESSURE) COAST CLUTCHSpacer- 1/4" thk. - 5 27/32" I.D. - 60 teeth
- Callout Name: 7B066
E9TZ-7B070-C
SPRING (CLUTCH PISTON DISC) COAST CLUTCHSpring- 5" O.D.
- Base Number: 7B070
- Callout Name: 7B070
- PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) OVERDRIVE CLUTCHE9TZ-7B164-A
Plate Assy - Drive- Internal friction
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7B164
- E9TZ-7B442-A
Driven Plate - Steel- External steel
- Require Quantity: 2
- Package Quantity: 1
- Base Number: 7B442
- Callout Name: 7B164
E9TZ-7B442-C
PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) COAST CLUTCHDriven Plate - Steel- External steel
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 7B164
- E9TZ-7C096-A
BEARING ASY./WASHER (INTERMEDIATE BRAKE DRUM THRUST)Washer - Thrust- 3 51/64" OD - 2 13/16" ID - 4 tabs
- Base Number: 7C096
- Callout Name: 7C096
- EOTZ-7330-B
LEVER (INTERMEDIATE BAND SERVO)Lever - Intermediate Band Actuating- #K , 7.3, 7.5L
- Callout Name: 7330
- WASHER (OVERDRIVE OVERRUNNING CLUTCH)
F1TZ-7L339-A
Washer- Located between 7A089 and 7B446 planet 4 5/8" O.D. - 2 tabs
- Base Number: 7L339
- Callout Name: 7L339
- F81Z-7L339-BA
Washer- #3 thrust washer - Use only when planetary 1C3Z 7B446-AA is used.
- Base Number: 7L339
- Callout Name: 7L339
- CARRIER/PLANET ASY. (OVERDRIVE)F2TZ-7B446-A
Carrier - Overdrive Planet Gears- Use w/E9TZ 7017-A input shaft only 4 pinion planet
- Callout Name: 7B446
- F4TZ-7B446-B
Carrier - Overdrive Planet Gears- Use when replacing E9TZ 7017-A input shaft - 4 pinion planet - see TSB 94-21-13
- Callout Name: 7B446
- F3TZ-7A089-A
CLUTCH ASY. (ONE-WAY)Clutch Assy- One piece - design over/run clutch - use w/F3TZ 7B067-A hub only - Note: 377135-5 not reqd. w/F3TZ 7A089-A cl. assy.
- Base Number: 7A089
- Callout Name: 7A089
- F3TZ-7A658-A
SHAFT ASY. (O/DRV. CENTER)Shaft- Center shaft with needle bearing & 7A098 clutch assy. , A4LD , 2.3L, 2.9L, 3.0L
- Callout Name: 7A658
F3TZ-7D234-A
BEARING ASY. (FORWARD PLANET THRUST)Bearing- #6G - located between 7A398 planet and 7A360 cyl.
- Base Number: 7D236
- Callout Name: 7D234
FOTZ-7B442-B
PLATE (CLUTCH INTERNAL AND EXTERNAL SPLINE) OVERDRIVE AND COAST CLUTCHDriven Plate - Steel- External steel
- Base Number: 7B442
- Callout Name: 7B164
- FOTZ-7B472-A
PLATE (FLUID PUMP - ADAPTER)Plate - Oil Pump - Adapter- PLATE (FLUID PUMP - ADAPTER)
- Callout Name: 7B472
- FOTZ-7D011-A
RING (GOVERNOR HOUSING SEAL)Seal- Cast iron w/tin/nickel coating
- Require Quantity: 3
- Package Quantity: 1
- Callout Name: 7D011
- WASHER (FRONT PUMP & CENTER SUPPORT THRUST - SELECT FIT)FOTZ-7D014-B
Washer - Thrust- #1 thrust washer - metal - selective code 2 - 0.063" thick
#4 thrust washer - metal - selective code 2 - 0.063" thick - Do not use with snap type input shell (7D064) - Base Number: 7D014
- Callout Name: 7D014
- FOTZ-7D014-C
Washer - Thrust- #1 thrust washer - metal - selective code 3 - 0.067" thick
#4 thrust washer - metal - selective code 3 - 0.067" thick - Do not use with snap type input shell (7D064) - Base Number: 7D014
- Callout Name: 7D014
- FOTZ-7D014-E
Washer - Thrust- #1 thrust washer - metal - selective code 5 - 0.075" thick
#4 thrust washer - metal - selective code 5 - 0.075" thick - Do not use with snap type shell (7D064) - Base Number: 7D014
- Callout Name: 7D014
- FOTZ-7D014-F
Washer - Thrust- #1 thrust washer - metal - selective code 6 - 0.079 thick"
#4 thrust washer - metal - selective code 6 - 0.079" thick - Do not use with snap type shell (7D064) - Base Number: 7D014
- Callout Name: 7D014
- FOTZ-7D014-H
Washer - Thrust- #1 thrust washer , metal , selective code B , 0.087" thick
#4 thrust washer , metal , selective code B , 0.087" thick , Do not use with snap type input shell (7D064) - Callout Name: 7D014
- FOTZ-7D044-B
DRUM ASY. (INTERM. BRAKE)Drum Assy - Intermediate- (10) plate drum assy., 2.9L & 3.0L
- Callout Name: 7D044
FOTZ-7D090-A
WASHER (FORWARD CYLINDER)Washer - Thrust- 2.3L
3.0L
Located at fwd. planet (7A398) - #6B, 4.0L - Base Number: 7D090
- Callout Name: 7D090
$15.85 $10.20
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 1994 Ford Ranger parts. Parts like Internal Parts - Clutches are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.0L. Transmission: 4AT A4LD.
