2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

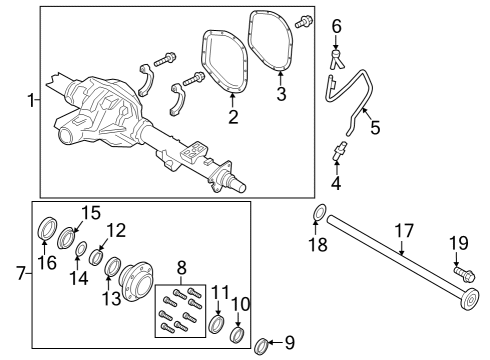

  • 1.Rear Suspension - Rear Axle (& 12.4" Axles,10.8",11.8")
    2023 Ford F-350 Super Duty Rear Axle Diagram 1
  • 2.Rear Suspension - Rear Axle (10.5" & 11.6 Axles)
    2023 Ford F-350 Super Duty Rear Axle Diagram 2
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description

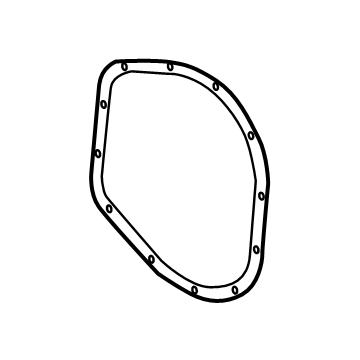

  • 3 Ford LC3Z-4036-A
    LC3Z-4036-A

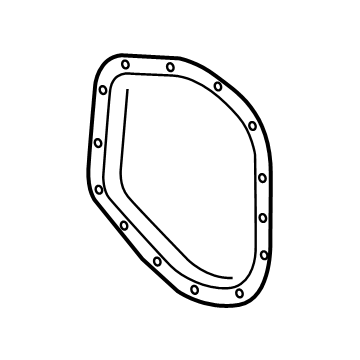

    Gasket
    • Part Notes: 10.5" & 11.6 Axles, 10.5 Axle
    $56.55 $36.08
    1
    Add To Cart
  • 3 Ford PC3Z-4036-A
    PC3Z-4036-A
    Gasket
    • Part Notes: 10.5" & 11.6 Axles, 11.6 Axle
    $16.87 $10.86
    1
    Add To Cart
  • 4 Ford LC3Z-4022-A
    LC3Z-4022-A
    Vent Valve
    • Part Notes: 10.5" & 11.6 Axles;10.8", 11.8", & 12.4" Axles
    $9.88 $6.94
    1
    Add To Cart
  • 5 Ford HC3Z-4A058-C
    HC3Z-4A058-C

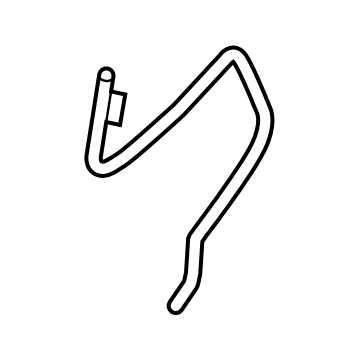

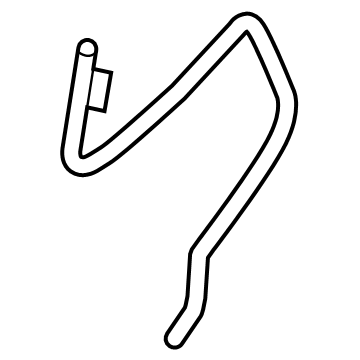

    Vent Hose
    • Part Notes: 10.5" & 11.6 Axles, RWD;10.8", 11.8", & 12.4" Axles, RWD
    $21.83 $15.33
    1
    Add To Cart
  • 5 Ford HC3Z-4A058-D
    HC3Z-4A058-D
    Vent Hose
    • Part Notes: 10.5" & 11.6 Axles, 4WD, W/O Water Wading;10.8", 11.8", & 12.4" Axles, 4WD, W/O Water Wading
    $23.00 $15.73
    1
    Add To Cart
  • 5 Ford LC3Z-4A058-A
    LC3Z-4A058-A
    Vent Hose
    • Part Notes: 10.5" & 11.6 Axles, 4WD, W/Water Wading;10.8", 11.8", & 12.4" Axles, 4WD, W/Water Wading
    $30.00 $21.06
    1
    Add To Cart

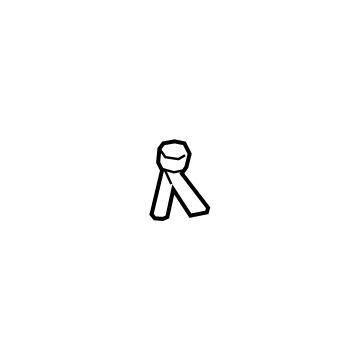

  • 6
    F2UZ-2B420-AA
    Tube
    • Part Notes: 10.5" & 11.6 Axles;10.8", 11.8", & 12.4" Axles
    $7.08 $4.97
    1
    Add To Cart
  • 7 Ford HC3Z-1109-D
    HC3Z-1109-D

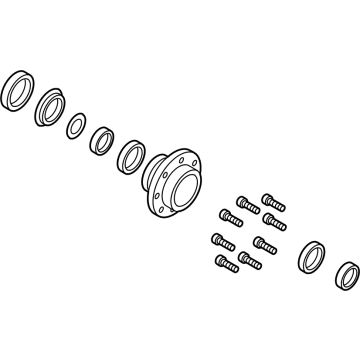

    Hub Assembly
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 11.8 & 12.4 Axle, Single Rear Wheel
    • Location: Driver Side;Passenger Side
    $687.27 $480.25
    1
    Add To Cart
  • 7 Ford HC3Z-1109-F
    HC3Z-1109-F
    Hub Assembly
    • Part Notes: 10.5" & 11.6 Axles, 10.5 Axle
    • Location: Driver Side;Passenger Side
    $376.36 $225.63
    1
    Add To Cart
  • 7 Ford PC3Z-1109-A
    PC3Z-1109-A
    Hub Assembly
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 10.8 Axle;10.8", 11.8", & 12.4" Axles, 11.8 & 12.4 Axle, Dual Rear Wheel
    • Location: Driver Side;Passenger Side
    $400.00 $248.60
    1
    Add To Cart
  • 7 Ford PC3Z-1109-AA
    PC3Z-1109-AA
    Hub Assembly
    • Part Notes: 10.5" & 11.6 Axles, 11.6 Axle
    • Location: Driver Side;Passenger Side
    $480.00 $298.32
    1
    Add To Cart
  • 8
    HCPZ-1107-C
    Wheel Stud
    • Part Notes: 10.5" & 11.6 Axles;10.8", 11.8", & 12.4" Axles
    • Location: Driver Side;Passenger Side
    $27.97 $19.63
    1
    Add To Cart
  • 9
    8C3Z-1A124-A
    Axle Nut
    • Part Notes: 10.5" & 11.6 Axles;10.8", 11.8", & 12.4" Axles
    • Location: Driver Side;Passenger Side
    $54.72 $38.08
    1
    Add To Cart
  • 9
    8C3Z-1A125-A
    Axle Nut
    • Part Notes: 10.5" & 11.6 Axles
    • Location: Driver Side
    $53.07 $36.93
    1
    Add To Cart
  • 10
    C7TZ-1240-A
    Outer Bearing
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 11.8 & 12.4 Axle
    • Location: Driver Side;Passenger Side
    $22.67 $15.91
    1
    Add To Cart
  • 10
    CC3Z-1240-A
    Outer Bearing
    • Part Notes: 10.5" & 11.6 Axles;10.8", 11.8", & 12.4" Axles, 10.8 Axle
    • Location: Driver Side;Passenger Side
    $29.50 $20.18
    1
    Add To Cart
  • 12
    5C3Z-1201-A
    Inner Bearing
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 10.8 Axle;10.8", 11.8", & 12.4" Axles, 11.8 & 12.4 Axle, Dual Rear Wheel
    • Location: Driver Side;Passenger Side
    $31.82 $28.43
    1
    Add To Cart
  • 12
    F81Z-1244-BA
    Inner Bearing
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 11.8 & 12.4 Axle, Single Rear Wheel
    • Location: Driver Side;Passenger Side
    $41.17 $28.16
    1
    Add To Cart
  • 12
    BC3Z-1244-A
    Inner Bearing
    • Part Notes: 10.5" & 11.6 Axles
    • Location: Driver Side;Passenger Side
    $26.83 $18.52
    1
    Add To Cart
  • 14 Ford HC3Z-1S175-A
    HC3Z-1S175-A

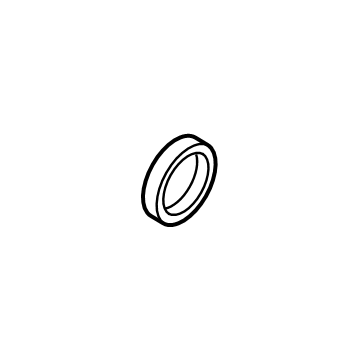

    Seal
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 11.8 & 12.4 Axle, Single Rear Wheel
    • Location: Driver Side;Passenger Side
    $54.36 $34.09
    1
    Add To Cart
  • 14 Ford HC3Z-1S175-B
    HC3Z-1S175-B
    Seal
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 10.8 Axle;10.8", 11.8", & 12.4" Axles, 11.8 & 12.4 Axle, Dual Rear Wheel
    • Location: Driver Side;Passenger Side
    $63.82 $40.01
    1
    Add To Cart
  • 15 Ford HC3Z-4234-K
    HC3Z-4234-K

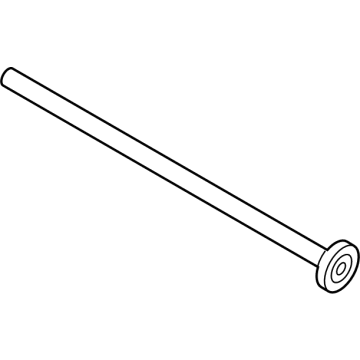

    Axle Shaft
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 11.8 & 12.4 Axle
    • Location: Passenger Side
    $233.33 $159.60
    1
    Add To Cart
  • 15 Ford HC3Z-4234-L
    HC3Z-4234-L
    Axle Shaft
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 11.8 & 12.4 Axle
    • Location: Driver Side
    $233.33 $159.60
    1
    Add To Cart
  • 15 Ford PC3Z-4234-E
    PC3Z-4234-E
    Axle Shaft
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 10.8 Axle
    • Location: Driver Side
    $271.67 $185.82
    1
    Add To Cart
  • 15 Ford PC3Z-4234-F
    PC3Z-4234-F
    Axle Shaft
    • Part Notes: 10.8", 11.8", & 12.4" Axles, 10.8 Axle
    • Location: Passenger Side
    $278.33 $190.38
    1
    Add To Cart
  • 15
    2C3Z-1177-AA
    Seal
    • Part Notes: 10.5" & 11.6 Axles, 10.5 Axle
    • Location: Driver Side;Passenger Side
    $37.45 $24.10
    1
    Add To Cart
  • 15 Ford 4C3Z-1S177-D
    4C3Z-1S177-D
    Seal
    • Part Notes: 10.5" & 11.6 Axles, 11.6 Axle
    • Location: Driver Side;Passenger Side
    $38.55 $24.17
    1
    Add To Cart
  • 16 Ford HC3Z-2C189-A
    HC3Z-2C189-A
    Indicator
    • Part Notes: 10.5" & 11.6 Axles
    • Location: Driver Side;Passenger Side
    $31.33 $16.06
    1
    Add To Cart
  • 17
    BC3Z-4234-D
    Axle Shaft
    • Part Notes: 10.5" & 11.6 Axles, 10.5 Axle
    • Location: Passenger Side
    $183.33 $125.40
    1
    Add To Cart
  • 17 Ford BC3Z-4234-C
    BC3Z-4234-C
    Axle Shaft
    • Part Notes: 10.5" & 11.6 Axles, 10.5 Axle
    • Location: Driver Side
    $97.67 $66.80
    1
    Add To Cart
  • 17 Ford PC3Z-4234-J
    PC3Z-4234-J
    Axle Shaft
    • Part Notes: 10.5" & 11.6 Axles, 11.6 Axle
    • Location: Passenger Side
    $366.67 $248.60
    1
    Add To Cart
  • 17 Ford PC3Z-4234-K
    PC3Z-4234-K
    Axle Shaft
    • Part Notes: 10.5" & 11.6 Axles, 11.6 Axle
    • Location: Driver Side
    $375.00 $254.25
    1
    Add To Cart
Genuine Ford Parts, the Right Choice
FordPartsGiant.com offers the wholesale prices for genuine 2023 Ford F-350 Super Duty parts. Parts like Rear Axle are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 6.7 L DIESEL, 8 Cyl 6.8 L GAS, 8 Cyl 7.3 L GAS.
