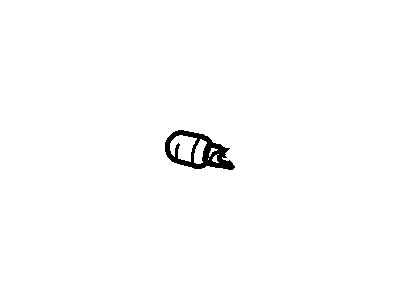

Ford E6DZ-13466-B Bulb

You can Select Your Vehicle to check if E6DZ-13466-B fits your vehicle.

First of all, open the hood and disconnect the negative cable from the battery. Proceed to reach behind the headlight assembly and then unplug the electrical connector, employing a screwdriver to hold the clip out of the way. Also, you will be required to grasp the bulb holder and turn it counterclockwise to remove it. Lifting the holder assembly out is necessary to access the bulb. Push in and rotate bulb counterclockwise to remove it. To install it into your holder rotate it clockwise. Have your bulb holder installed in a headlight assembly.

1. When installing the new bulb, make sure that you don't touch it with your fingers, because the oil from your hands will cause the bulb to fail. If you do touch the bulb, be sure to wipe it off with alcohol and a clean soft cloth. 2. When connecting the new bulb to the electrical connector, make sure that it snaps into place, then insert the bulb/connector into the headlight housing and turn it clockwise to lock it into place. 3. Installation is otherwise the reverse of removal.

Remove the splash shield apron, release the retaining spring from the foglight unit, disconnect the wiring connector, twist off the rear cover, release the wire clip, and take out the bulb.

Installation is the reverse of removal.

Installation is the reverse of removal.

To replace a headlight bulb, depress the release tab and pull off the electrical connector. Then, rotate the bulb holder counterclockwise. Note: If you're simply removing the headlight bulb assembly to remove the headlight housing, it's not necessary to disconnect the electrical connector.

Rotate the bulb holder counterclockwise to release the tabs and pull it out of the housing.

Push in and rotate the bulb counterclockwise to remove it.

Pry the cargo light assembly from the headliner, remove the bulb by turning it counterclockwise, and insert a new bulb by turning it clockwise to lock it into place. Reinstall the cargo light assembly in reverse.

Disconnect the electrical connector from the headlight assembly.

Disconnect the cable from the negative battery terminal.

Remove the bulb from the headlight assembly.

Pry the cargo light assembly from the headliner, remove the bulb by turning it counterclockwise, and insert a new bulb by turning it clockwise to lock it into place. Reinstall the cargo light assembly in reverse.

Rotate the headlight bulb retaining ring counterclockwise and pull out the bulb socket. To remove the headlight bulb from the headlight housing, turn it counterclockwise and pull it out. On 2011 and later models, remove the headlight bulb by twisting it a small amount counterclockwise. Remove the park/turn bulb and the side marker light in the same manner.

1. Using a trim panel removal tool or a screwdriver, pry off the dome light lens. 2. Remove the bulb from the dome light assembly. When installing the new dome light bulb, make sure that it's fully seated into its two conductor/retainer clips. 3. Installation is the reverse of removal.
