Make sure this part fits

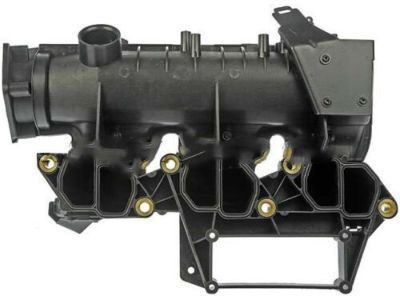

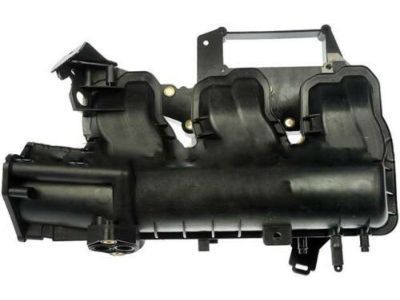

Ford F77Z-9424-CA Manifold Assembly - Inlet

1995-2000 Ford F77Z9424CA

Customer Questions & Expert Answers (16)
Ford F77Z-9424-CA Manifold Assembly - Inlet
Ford F77Z-9424-CA Manifold Assembly - Inlet
Ford F77Z-9424-CA Manifold Assembly - Inlet
Ford F77Z-9424-CA Manifold Assembly - Inlet
Ford F77Z-9424-CA Manifold Assembly - Inlet
  • Part Description
    Manifold Assy - Inlet
  • Base No.
    9424
  • Replaces
    F57Z-9424-B
  • Manufacturer
    Ford
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers

  • Related Parts

    Shop for related parts for your vehicle

  • Product Specifications

    BrandGenuine Ford
    Base No.9424
    Manufacturer Part NumberF77Z-9424-CA, F77Z9424CA
    Part DescriptionManifold Assy - Inlet
    Other NamesIntake Manifold, Manifold
    Item Dimensions18.0 x 14.5 x 8.7 inches
    Item Weight8.30 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    ReplacesF57Z-9424-B
    ManufacturerFord
    SKUF77Z-9424-CA
    WarrantyThis genuine Ford part is guaranteed by Ford's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California’s Proposition 65

  • Vehicle Fitment

    Year Make Model Engine Important vehicle option details
    1995-2000 Ford Explorer6 Cyl 4.0L4AT 4R44E, 4AT 4R55E, 4AT 4R70W, 4AT A4LD, 4AT AODE-E, 4AT AODE-W, 5AT 5R55E, 5MT
    1995-2000 Ford Ranger6 Cyl 4.0L4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5AT 5R55E, 5MT

  • Customer Questions & Expert Answers

    Q:
    Is the the correct part for the attached VIN? Posted by FordPartsGiant Specialist
    A:
    You can Select Your Vehicle to check if F77Z-9424-CA fits your vehicle.
    Posted by FordPartsGiant Specialist
    Q:
    Which electrical connectors need to be disconnected for the 2008 Ford Ranger? Posted by Customer
    A:
    Disconnect the IAC valve, the TPS, and any other electrical connectors that may interfere with manifold removal.
    Posted by FordPartsGiant Specialist
    Q:
    What should be done with the RTV sealer on the end seals for the 2006 Ford Ranger? Posted by Customer
    A:
    Apply RTV sealer on top of the end seals. Do not allow the sealer to dry prior to installation.
    Posted by FordPartsGiant Specialist
    Q:
    How should the manifold be installed for the 2010 Ford Ranger? Posted by Customer
    A:
    Install the manifold over the studs. Install the nuts and bolts and tighten them finger tight.
    Posted by FordPartsGiant Specialist
    Q:
    What is the first step in the exhaust manifold removal procedure for the 1997 Ford Ranger? Posted by Customer
    A:
    Disconnect the negative battery cable.
    Posted by FordPartsGiant Specialist
    Q:
    How should the new intake manifold gasket be positioned for the 2002 Ford Ranger? Posted by Customer
    A:
    Position the new intake manifold gasket on the head, using a light coat of gasket sealant to hold it in place.
    Posted by FordPartsGiant Specialist
    Q:
    What should be done after installation for the 2007 Ford Ranger? Posted by Customer
    A:
    Run the engine and check for oil, coolant, and vacuum leaks.
    Posted by FordPartsGiant Specialist
    Q:
    What should be removed from the accessory drive bracket for the 2011 Ford Ranger? Posted by Customer
    A:
    Remove the bolts securing the lower portion of the accessory drive bracket, then install the wheel and lower the vehicle. After that, remove the bolts securing the upper portion of the accessory drive bracket and then remove the bracket.
    Posted by FordPartsGiant Specialist
    Q:
    What is the first step in relieving the fuel system pressure for the 2005 Ford Ranger? Posted by Customer
    A:
    Relieve the fuel system pressure.
    Posted by FordPartsGiant Specialist
    Q:
    What is the procedure for the fuel injectors for the 2000 Ford Ranger? Posted by Customer
    A:
    Disconnect the electrical connectors from the fuel injectors and remove the bolts that secure the fuel rail.
    Posted by FordPartsGiant Specialist
    See expert answers on similar Intake Manifold
    Q:
    What needs to be drained before removing the intake manifold for the 2000 Ford Ranger? Posted by Customer
    A:
    Drain the cooling system.
    Posted by FordPartsGiant Specialist
    Q:
    What should be done with the valve covers for the 2002 Ford Ranger? Posted by Customer
    A:
    Remove the valve covers. If the camshaft position sensor is in the way, remove it as well.
    Posted by FordPartsGiant Specialist
    Q:
    How should the bolts be tightened for the 1999 Ford Explorer? Posted by Customer
    A:
    Tighten the bolts in stages, starting with the center bolts and working towards the ends.
    Posted by FordPartsGiant Specialist
    Q:
    How should the intake manifold be removed for the 1993 Ford Explorer? Posted by Customer
    A:
    Remove the intake manifold nuts and bolts and lift the manifold off. If it's stuck, tap it lightly with a soft-face hammer to break the gasket seal. If necessary, pry the manifold off, but pry between a casting protrusion and the engine - don't pry against gasket surfaces.
    Posted by FordPartsGiant Specialist
    Q:
    How do you install the upper intake manifold for the 1995 Ford Explorer? Posted by Customer
    A:
    Clean and inspect the mounting faces, place a new gasket onto the lower intake mounting face, and secure the upper intake manifold and throttle body assembly onto the lower intake manifold.
    Posted by FordPartsGiant Specialist
    See expert answers on similar Intake Manifold
    Q:
    What is important to ensure about the mating surfaces before installing the manifold for the 1993 Ford Explorer? Posted by Customer
    A:
    The mating surfaces of the cylinder heads, block, and manifold must be perfectly clean when the manifold is installed. Gasket removal solvents in aerosol cans are available at most auto parts stores and may be helpful when removing old gasket material that's stuck to the heads and manifold. Be sure to follow directions printed on the container.
    Posted by FordPartsGiant Specialist
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

Genuine Ford Part F77Z-9424-CA, the Right Choice

To ensure reliability, purchase Ford part # F77Z-9424-CA Manifold Assembly - Inlet. It is sometimes referred to as Ford Intake Manifold. In terms of quality and longevity, OEM parts are top-tier. This is because they are made according to Ford's demanding factory specifications and go through strict quality control. This part fits specific Ford Explorer, Ranger models.

FordPartsGiant.com is a leading supplier of genuine Ford parts and accessories such as Ford F77Z9424CA Manifold Assembly - Inlet. On our platform, we provide genuine Ford parts at incredible prices while ensuring top-tier quality. Feel at ease shopping with us, knowing our parts have a hassle-free return policy and rapid delivery service. For detailed Ford parts information, click here.
