Genuine Ford Ranger Intake Manifold
Engine Intake Manifold- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
23 Intake Manifolds found

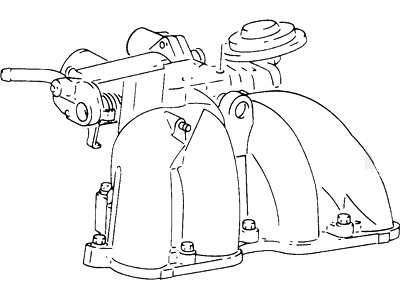

Ford Ranger Manifold Assembly - Inlet
Part Number: 4L5Z-9424-BA$401.96 MSRP: $503.33You Save: $101.37 (21%)

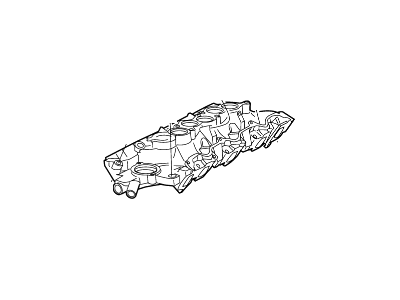

Ford Ranger Manifold Assembly - Inlet
Part Number: 1L5Z-9424-DA$341.26 MSRP: $503.33You Save: $162.07 (33%)
Ford Ranger MANIFOLD ASY - INLET
Part Number: KB3Z-9424-A$54.98 MSRP: $79.00You Save: $24.02 (31%)Ships in 1-3 Business Days

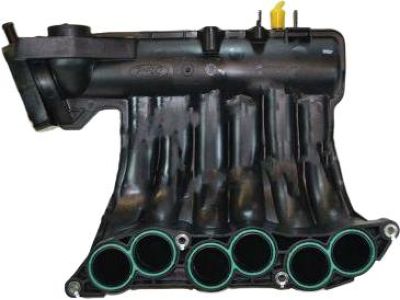

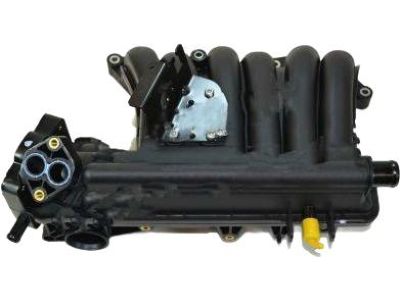

Ford Ranger Manifold Assembly - Inlet
Part Number: 2L5Z-9424-DA$102.49 MSRP: $149.83You Save: $47.34 (32%)Ships in 1-3 Business Days
Ford Ranger Manifold Assembly - Inlet
Part Number: 4L5Z-9424-EA$102.49 MSRP: $149.83You Save: $47.34 (32%)
| Page 1 of 2 |Next >
1-20 of 23 Results
Ford Ranger Intake Manifold
In the Ford Ranger, the Intake Manifold is responsible to directs air or air-fuel mixture to the cylinder that has a direct influence to the engine's power and torque produced by the car. It works by allowing air from the throttle body or carburetor, with differences in the kinds of engines namely carbureted, throttle body injected or multiport fuel injected. Current models of Ford Rangers use plastic' based materials such as plastic composites due to their low density and excellent heat transfer properties than the conventional cast iron or aluminum intakes. Over the years Ford Ranger vehicles have come with other features for instance Variable Length Intake Manifold (VLIM) that adjusts the intake tract length which improves the airflow and thus engine performance. Such innovations coupled with the addition of temperature and airflow sensors to the vehicles lead to enhanced combustion and efficiency of the automobile. The changes in the Intake Manifold of the Ford Ranger that will be discussed below explain the need to optimize the engine performance and its power delivery in different configurations.
We provide a wide range of Ford Ranger Intake Manifold at the best prices possible. If you need Ford Ranger Intake Manifold, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.
Ford Ranger Intake Manifold Parts Questions & Experts Answers
- Q: How to Remove and Install the Intake Manifold, Throttle Body, Fuel Rail, and Injectors on 2000-2011 Ford Ranger?A: For the above procedures involving the removal of upper intake manifold and throttle body, the following are the steps required for sohc four cylinder engines, The air cleaner housing and the splash shield for the accelerator linkage should be taken off; the accelerator cable should as well be disconnected from the throttle body. Then, remove the connection of the electrical wires coming from the throttle position sensor, idle air control valve and EGR vacuum regulator control if present, and the ground wire of the engine if exist. Remove the PCV hose and mark the vacuum hoses from manifold vacuum tee. Disconnect the transducer hoses for the EGR and the EGR valve and take out the upper intake manifold bolts and studs. Remove any old gasket material from the surfaces, fit a new gasket on the lower intake manifold, place the upper manifold in position and tighten the bolts in a star pattern to the recommended torque. The process of installation is done in a opposite way whereby the removal process was done. To expose the bug, remove the throttle body splash shield disconnecting also the accelerator cable and the electrical connector of the Throttle Position Sensor. The air inlet duct; free the clips or bolts and disconnect the air inlet duct and then remove the bolts that are holding the throttle body and remove the throttle body. Scrub that mating surfaces and set in a new gasket before repositioning the throttle body and fastening the screws. When dealing with fuel rail and injectors, steam clean the engine if required, then refer to the fuel system pressure relief procedure, next remove the negative battery cable and finally the air inlet tube. Remove the fuel supply hose and the return hose from the fuel injectors, then remove the bolts holding the fuel rail then disconnect the electrical connectors from the injectors. Delicately raise the fuel rail and its injectors, if necessary disconnecting the injectors. For installation, the injector O-rings must be checked for damage, if so, it must be replaced and lubed with the engine oil then the injectors must be fitted to the fuel rail. At last, rotate the key ON/OFF to pressurise the fuel system and look for any signs of leakage.
