How to drain and replace transmission fluid and Filter on Ford F-150?

At the specified intervals, the transmission fluid should be drained and replaced. Since the fluid will remain hot long after driving, perform this procedure only after the engine has cooled down completely. Before beginning work, purchase the transmission fluid specified in Recommended lubricants and fluids, a new filter and gasket. Never reuse the old filter or gasket! Other tools necessary for this job include jack stands to support the vehicle in a raised position, a drain pan capable of holding at least eight quarts, newspapers and clean rags. Raise the vehicle and support it securely on jackstands. With the drain pan in place, remove the front and side transmission pan mounting bolts. Loosen the rear pan bolts approximately four turns. Carefully pry the transmission pan loose with a screwdriver, allowing the fluid to drain. Don't damage the pan or transmission gasket surfaces or leaks could develop. Remove the remaining bolts, pan and gasket. Carefully clean the gasket surface of the transmission to remove all traces of the old gasket and sealant. Drain the fluid from the transmission pan, clean it with solvent and dry it thoroughly. Upon initial service most transmissions will have a plastic plug lying in the bottom of the pan. This plug was used to keep contamination out of the transmission while on the assembly line. Discard the factory-installed dust plug. Remove the old filter from the transmission. If the filter seal did not come out with the filter, remove it from the transmission being careful not to gouge the seal bore in any way. Install a new seal and filter. Make sure the gasket surface on the transmission pan is clean, then install a new gasket. Put the pan in place against the transmission and install the bolts. Working around the pan, tighten each bolt a little at a time until the final torque figure. Don't overtighten the bolts! Lower the vehicle and add four quarts of automatic transmission fluid through the filler tube. With the transmission in Park and the parking brake set, run the engine at a fast idle, but don't race it. Move the gear selector through each range and back to Park. Check the fluid level. Add fluid if needed to reach the correct level. Check under the vehicle for leaks during the first few trips.

Genuine Ford F-150 Automatic Transmission Filter

AT Filter

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

26 Automatic Transmission Filters found

View related parts

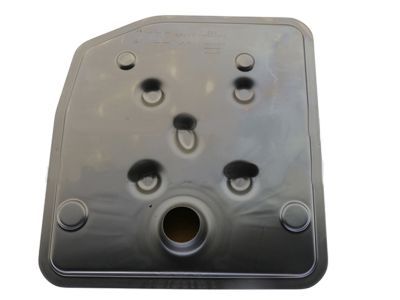

Ford F-150 Screen Assembly
Part Number: HL3Z-7A098-A
$50.43 MSRP: $96.55
You Save: $46.12 (48%)
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter, Screen
- Replaces: FT-215, L1MZ-7A098-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2017-2023 Ford F-150 | 6 Cyl 2.7 L GAS, 6 Cyl 2.7L, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.0L 4V DOHC TC DSL-LION B, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3L Duratec, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L GTDI, 8 Cyl 5.0 L FLEX, 8 Cyl 5.0L Coyote, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 5.2 L GAS | 10-Speed Automatic Transmission (10R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Kit - Transm. Fluid External Filter
Part Number: XC3Z-7B155-F
$64.32 MSRP: $127.82
You Save: $63.50 (50%)
ADD TO CART
Product Specifications
- Other Name: Filter Assembly
- Replaces: XC3Z-7B155-CA, XC3Z-7B155-E
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2014 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Filter Assembly - Oil
Part Number: XC3Z-7B155-CA
$64.32 MSRP: $127.82
You Save: $63.50 (50%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy - Oil
- Replaced by: XC3Z-7B155-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2005 Ford F-150 | 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Kit - Transm. Fluid
Part Number: XC3Z-7B155-E
$64.32 MSRP: $127.82
You Save: $63.50 (50%)
ADD TO CART
Product Specifications
- Other Name: Kit - Transm. Fluid External Filter
- Replaced by: XC3Z-7B155-F
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Ford F-150 | 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Screen Assembly
Part Number: BL3Z-7A098-A
$31.58 MSRP: $50.36
You Save: $18.78 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter, Screen
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2011-2019 Ford F-150 | 6 Cyl 3.5L Cyclone Petrol TIVCT, 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.5L GTDI, 6 Cyl 3.7L PFI NA, 8 Cyl 4.6L, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 6.2L OHC NA | 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Filter Assembly
Part Number: F6AZ-7A098-A
$33.86 MSRP: $54.00
You Save: $20.14 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Filter Assy; Filter, Screen
- Replaces: F4TZ-7A098-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-2014 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 6 Cyl 3.8L, 6 Cyl 4.2L, 6 Cyl 4.2L OHV EFI, 6 Cyl 4.9L, 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.0L, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 5.4L, 8 Cyl 5.8L, 8 Cyl 6.2L OHC NA | 3AT C6, 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, 4AT 4R100, 4AT 4R70W, 4AT 4R75W, 4AT E4OD, 4MT, 5MT, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Screen Assembly
Part Number: 7L1Z-7A098-A
$39.79 MSRP: $63.45
You Save: $23.66 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter, Screen
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2009-2010 Ford F-150 | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA | 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Screen Assembly
Part Number: YC3Z-7A098-BA
$28.27 MSRP: $45.09
You Save: $16.82 (38%)
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter, Screen
- Replaces: F6TZ-7A098-BB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-2003 Ford F-150 | 6 Cyl 4.2L, 6 Cyl 4.9L, 8 Cyl 4.6L, 8 Cyl 5.0L, 8 Cyl 5.4L, 8 Cyl 5.8L | 3AT C6, 4AT 4R100, 4AT 4R70W, 4AT 4R75W, 4AT E4OD, 5MT
View related parts
Ford F-150 Screen Assembly
Part Number: FL3Z-7A098-B
$47.65 MSRP: $76.00
You Save: $28.35 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter
- Replaces: FT-196, FL3Z-7A098-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2020 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.3L Duratec, 6 Cyl 3.5 L GAS | 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Screen Assembly
Part Number: YC3Z-7A098-AA
$27.82 MSRP: $44.36
You Save: $16.54 (38%)
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter, Filter Kit, Screen
- Replaces: F6TZ-7A098-AB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-2003 Ford F-150 | 6 Cyl 4.2L, 6 Cyl 4.9L, 8 Cyl 4.6L, 8 Cyl 5.0L, 8 Cyl 5.4L, 8 Cyl 5.8L | 3AT C6, 4AT 4R100, 4AT 4R70W, 4AT 4R75W, 4AT E4OD, 5MT
View related parts
Ford F-150 Filter Assembly - Oil
Part Number: XC3Z-7B155-G
$31.46 MSRP: $50.18
You Save: $18.72 (38%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy - Oil
- Replaces: F8DZ-3F595-AA, FT-116, XC3Z-7B155-D, XC3Z-7B155-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2014 Ford F-150 | 6 Cyl 3.5L DOHC TIVCT, 6 Cyl 3.7L PFI NA, 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.0L MOD DOHC SEFI NA, 8 Cyl 5.4L, 8 Cyl 6.2L OHC NA | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Filter Assembly
Part Number: F6TZ-7A098-BB
$28.27 MSRP: $45.09
You Save: $16.82 (38%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy
- Replaced by: YC3Z-7A098-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-2000 Ford F-150 | 6 Cyl 4.2L, 6 Cyl 4.9L, 8 Cyl 4.6L, 8 Cyl 5.0L, 8 Cyl 5.4L, 8 Cyl 5.8L | 3AT C6, 4AT 4R100, 4AT 4R70W, 4AT 4R75W, 4AT E4OD, 5MT
View related parts
Ford F-150 Filter Assembly - Oil
Part Number: XC3Z-7B155-BA
$31.46 MSRP: $50.18
You Save: $18.72 (38%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy - Oil
- Replaced by: XC3Z-7B155-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2005 Ford F-150 | 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Filter Assembly
Part Number: F6TZ-7A098-AB
$27.82 MSRP: $44.36
You Save: $16.54 (38%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy
- Replaced by: YC3Z-7A098-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1996-2000 Ford F-150 | 6 Cyl 4.2L, 6 Cyl 4.9L, 8 Cyl 4.6L, 8 Cyl 5.0L, 8 Cyl 5.4L, 8 Cyl 5.8L | 3AT C6, 4AT 4R100, 4AT 4R70W, 4AT 4R75W, 4AT E4OD, 5MT
View related parts
Ford F-150 Screen Assembly
Part Number: D5AZ-7A098-B
$16.76 MSRP: $26.73
You Save: $9.97 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter, Filter Kit
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1996 Ford F-150 | 6 Cyl 3.8L, 6 Cyl 4.9L, 8 Cyl 5.0L, 8 Cyl 5.8L | 3AT C6, 4AT 4R70W, 4AT 4R75W, 4AT AOD, 4AT E4OD, 4MT, 5MT
View related parts
Ford F-150 Screen Assembly
Part Number: FL3Z-7A098-A
$47.65 MSRP: $76.00
You Save: $28.35 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Screen Assy
- Replaced by: FL3Z-7A098-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2019 Ford F-150 | 6 Cyl 2.7L, 6 Cyl 3.3L Duratec | 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Screen Assembly
Part Number: F2VY-7A098-A
$17.78 MSRP: $28.36
You Save: $10.58 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Screen Assy; Filter
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1995 Ford F-150 | 6 Cyl 3.8L, 6 Cyl 4.9L, 8 Cyl 5.0L, 8 Cyl 5.8L | 3AT C6, 4AT 4R70W, 4AT 4R75W, 4AT E4OD, 4MT, 5MT
View related parts
Ford F-150 Screen Assembly
Part Number: F4TZ-7A098-A
$33.86 MSRP: $54.00
You Save: $20.14 (38%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: SCREEN ASY
- Manufacturer Note: Note: 7A191 gasket not included with 7A098 screen, 4x4
- Replaced by: F6AZ-7A098-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994-1995 Ford F-150 | 6 Cyl 3.8L, 6 Cyl 4.9L, 8 Cyl 5.0L, 8 Cyl 5.8L | 3AT C6, 4AT 4R70W, 4AT 4R75W, 4AT E4OD, 4MT, 5MT
View related parts
Ford F-150 Filter Assembly - Oil
Part Number: XC3Z-7B155-D
$31.46 MSRP: $50.18
You Save: $18.72 (38%)
ADD TO CART
Product Specifications
- Other Name: Filter Assy - Oil
- Replaced by: XC3Z-7B155-G
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2008 Ford F-150 | 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford F-150 Filter Assembly
Part Number: 3L5Z-7A098-CA
$11.63 MSRP: $18.55
You Save: $6.92 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Filter Assy
- Manufacturer Note: Pump Shaft Strainer
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2008 Ford F-150 | 6 Cyl 4.2L OHV EFI, 8 Cyl 4.6L Romeo SOHC EFI, 8 Cyl 4.6L Windsor SOHC EFI, 8 Cyl 5.4L | 4-Speed Automatic Transmission 4R75E Livonia, 4-Speed Automatic Transmission AODEW/4R70E W/TSS, 4-Speed Automatic Transmission AODEW/4R75E W/TSS, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

| Page 1 of 2 |Next >

1-20 of 26 Results

Ford F-150 Automatic Transmission Filter

The Automatic Transmission Filter in Ford F-150 is a very important component that serves to clean the impurities that are within the transmission fluid that circulates in the Ford F-150 automatic transmission system. This last filter also plays the role of preventing the possible circulation of dirt within the transmission, which can injure transmission elements and create clogs leading to poor transmission performance and or premature wear. Some of the Automatic Transmission Filters that have been used in the Ford F-150 models are as follows; The most popular type sits within the transmission, capped by a removable metal pan, which is pretty simple to change in the course of servicing. However, certain designs may be equipped with filters that are very difficult to reach or access, and may necessitate a lot of disassembling so as to replace them. Also, Ford has inventions for in-line transmission filter that can be fitted to the transmission and the fluid cooler for even better filtering. Other types of spin-on or cartridge type external filters are also used where the changes are more frequent or where higher levels of filtration are required. All in all, the right Automatic Transmission Filter enhances the flow of the fluid and increases fuel efficiency as well as the life of the transmission system of Ford F-150.

We provide a wide range of Ford F-150 Automatic Transmission Filter at the best prices possible. If you need Ford F-150 Automatic Transmission Filter, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford F-150 Automatic Transmission Filter Parts Questions & Experts Answers

Kit - Transm. Fluid
XC3Z-7B155-E
Q: How to drain and replace transmission fluid and Filter on Ford F-150?
A: At the specified intervals, the transmission fluid should be drained and replaced. Since the fluid will remain hot long after driving, perform this procedure only after the engine has cooled down completely. Before beginning work, purchase the transmission fluid specified in Recommended lubricants and fluids, a new filter and gasket. Never reuse the old filter or gasket! Other tools necessary for this job include jack stands to support the vehicle in a raised position, a drain pan capable of holding at least eight quarts, newspapers and clean rags. Raise the vehicle and support it securely on jackstands. With the drain pan in place, remove the front and side transmission pan mounting bolts. Loosen the rear pan bolts approximately four turns. Carefully pry the transmission pan loose with a screwdriver, allowing the fluid to drain. Don't damage the pan or transmission gasket surfaces or leaks could develop. Remove the remaining bolts, pan and gasket. Carefully clean the gasket surface of the transmission to remove all traces of the old gasket and sealant. Drain the fluid from the transmission pan, clean it with solvent and dry it thoroughly. Upon initial service most transmissions will have a plastic plug lying in the bottom of the pan. This plug was used to keep contamination out of the transmission while on the assembly line. Discard the factory-installed dust plug. Remove the old filter from the transmission. If the filter seal did not come out with the filter, remove it from the transmission being careful not to gouge the seal bore in any way. Install a new seal and filter. Make sure the gasket surface on the transmission pan is clean, then install a new gasket. Put the pan in place against the transmission and install the bolts. Working around the pan, tighten each bolt a little at a time until the final torque figure. Don't overtighten the bolts! Lower the vehicle and add four quarts of automatic transmission fluid through the filler tube. With the transmission in Park and the parking brake set, run the engine at a fast idle, but don't race it. Move the gear selector through each range and back to Park. Check the fluid level. Add fluid if needed to reach the correct level. Check under the vehicle for leaks during the first few trips.
