How to remove and reinstall the A/C Condenser on 2000-2011 Ford Ranger?

Have the air conditioning system discharged. On all 4.0L engines, remove the air cleaner duct. Disconnect the refrigerant lines from the condenser. On some models, this requires a spring lock coupling tool similar to that used for fuel injection lines. Remove the mounting fasteners for the radiator and tilt it back for clearance to remove the condenser. Be careful not to damage the radiator with the cooling fan when tilting or moving the radiator back. Radiator removal is recommended if clearance to remove the condenser cannot be achieved without damage to either component. Remove the top seal by removing the push-pin fasteners. Remove the mounting fasteners for the condenser. Lift the condenser out of the vehicle and plug the lines to keep dirt and moisture out. If the original condenser will be reinstalled, store it with the line fittings on top to prevent oil from draining out. If a new condenser is being installed, pour one ounce of refrigerant oil into it prior to installation. Use PAG oil for R-134a systems and mineral refrigerant oil for R-12 systems. Reinstall the components in the reverse order of removal. Be sure the rubber pads are in place under the condenser (if equipped). Be sure the seals are in place around the condenser (if equipped). Have the system evacuated, recharged, and leak tested by the shop that discharged it.

How to remove and reinstall the A/C Condenser on 1993-2011 Ford Ranger?

Have the air conditioning system discharged. On all 4.0L engines, remove the air cleaner duct. Disconnect the refrigerant lines from the condenser. On some models, this requires a spring lock coupling tool similar to that used for fuel injection lines. Remove the mounting fasteners for the radiator and tilt it back for clearance to remove the condenser. Be careful not to damage the radiator with the cooling fan when tilting or moving the radiator back. Radiator removal is recommended if clearance to remove the condenser cannot be achieved without damage to either component. Remove the top seal by removing the push-pin fasteners. Remove the mounting fasteners for the condenser. Lift the condenser out of the vehicle and plug the lines to keep dirt and moisture out. If the original condenser will be reinstalled, store it with the line fittings on top to prevent oil from draining out. If a new condenser is being installed, pour one ounce of refrigerant oil into it prior to installation. Use PAG oil for R-134a systems and mineral refrigerant oil for R-12 systems. Reinstall the components in the reverse order of removal. Be sure the rubber pads are in place under the condenser (if equipped). Be sure the seals are in place around the condenser (if equipped). Have the system evacuated, recharged and leak tested by the shop that discharged it.

Genuine Ford Ranger A/C Condenser

Air Conditioning Condenser

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 A/C Condensers found

View related parts

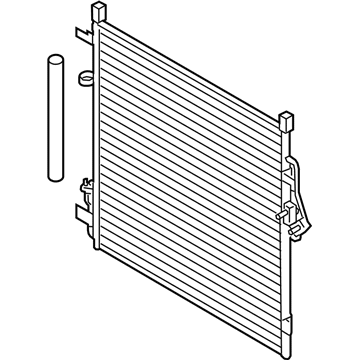

Ford Ranger Condenser Assembly
Part Number: 6L5Z-19712-CB
$197.29 MSRP: $329.09
You Save: $131.80 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assy; Condenser
- Replaces: 6L5Z-19712-CA, YL2Z-19712-CA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2011 Ford Ranger | 4 Cyl 2.3L NA Petrol, 6 Cyl 3.0L OHV EFI, 6 Cyl 4.0L, 6 Cyl 4.0L SOHC EFI | 4AT 4R44E, 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, 5AT 5R44E, 5AT 5R55E, 5MT, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

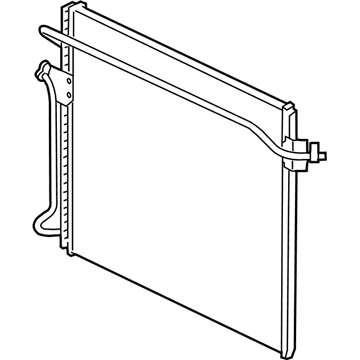

Ford Ranger Condenser Assembly
Part Number: YL2Z-19712-CA
$197.29 MSRP: $329.09
You Save: $131.80 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assy
- Replaced by: 6L5Z-19712-CB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2005 Ford Ranger | 6 Cyl 4.0L, 6 Cyl 4.0L SOHC EFI | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT, 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ranger Condenser Assembly
Part Number: 6L5Z-19712-CA
$197.29 MSRP: $329.09
You Save: $131.80 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser Assy
- Replaced by: 6L5Z-19712-CB
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2009 Ford Ranger | 4 Cyl 2.3L NA Petrol, 6 Cyl 3.0L OHV EFI, 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

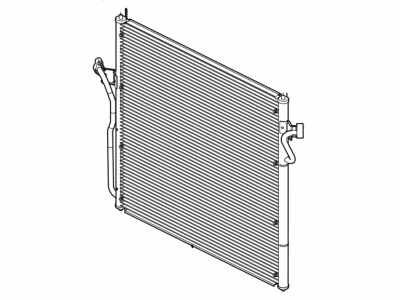

Ford Ranger CONDENSER ASY
Part Number: KB3Z-19712-B
$297.19 MSRP: $478.18
You Save: $180.99 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Condenser
- Replaces: KB3Z-19712-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019-2023 Ford Ranger | 4 Cyl 2.3 L GAS, 4 Cyl 2.3L TIVCT DI TC | 10-Speed Automatic Transmission (10R80), 2 Whl L/H Rear Drive-High Ride, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive
View related parts
Ford Ranger CONDENSER ASY
Part Number: KB3Z-19712-A
$297.19 MSRP: $478.18
You Save: $180.99 (38%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: KB3Z-19712-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2019 Ford Ranger | 4 Cyl 2.3L TIVCT DI TC | 10-Speed Automatic Transmission (10R80), 2 Whl L/H Rear Drive-High Ride, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive
View related parts
Ford Ranger Condenser Assembly
Part Number: F37Z-19712-A
Product Specifications
- Other Name: CONDENSER ASY
- Manufacturer Note: w/integral A/C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1993 Ford Ranger | 4 Cyl 2.3L, 6 Cyl 3.0L, 6 Cyl 4.0L | 4AT A4LD, 5MT
View related parts
Ford Ranger Condenser Assembly
Part Number: F4TZ-19712-C
Product Specifications
- Other Name: Condenser Assy; Condenser
- Manufacturer Note: R134-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1994 Ford Ranger | 4 Cyl 2.3L, 6 Cyl 3.0L, 6 Cyl 4.0L | 4AT A4LD, 5MT
View related parts
Ford Ranger Condenser Assembly
Part Number: F57Z19712A
Product Specifications
- Other Name: Condenser Assy; Condenser
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-1997 Ford Ranger | 4 Cyl 2.3L, 6 Cyl 3.0L, 6 Cyl 4.0L | 4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5AT 5R55E, 5MT
View related parts
Ford Ranger Condenser Assembly
Part Number: FOTZ-19712-A
Product Specifications
- Other Name: CONDENSER ASY
- Manufacturer Note: integral A/C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1992 Ford Ranger | 4 Cyl 2.3L, 6 Cyl 2.9L, 6 Cyl 3.0L, 6 Cyl 4.0L | 4AT A4LD, 5MT
View related parts
Ford Ranger Condenser Assembly
Part Number: YL5Z-19712-AA
Product Specifications
- Other Name: Condenser Assy
- Manufacturer Note: electric vehicle
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2005 Ford Ranger | 4 Cyl 2.3L, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 4.0L, 6 Cyl 4.0L SOHC EFI | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT, 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

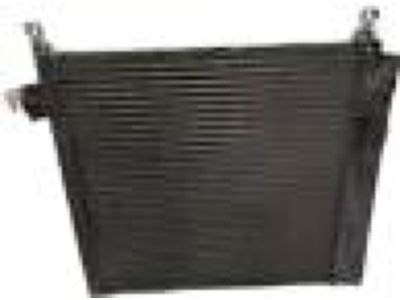

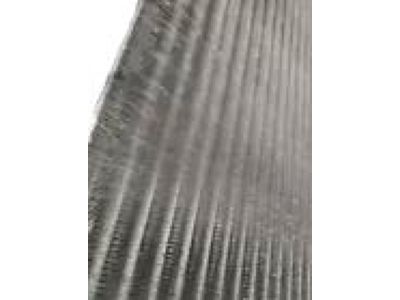

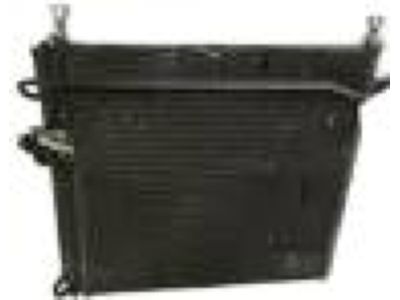

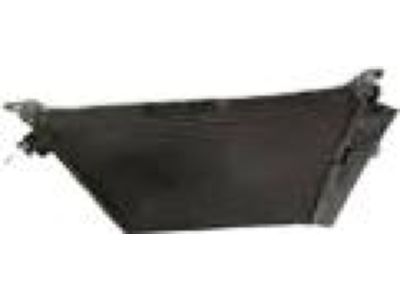

Ford Ranger Condenser Assembly
Part Number: 6L5Z-19712-AA
Product Specifications
- Other Name: Condenser Assy
- Replaced by: 6L5Z-19712-AC
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2009 Ford Ranger | 4 Cyl 2.3L NA Petrol, 6 Cyl 3.0L OHV EFI, 6 Cyl 4.0L SOHC EFI | 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)

Ford Ranger A/C Condenser

The A/C Condenser in Ford Ranger vehicles play an important role of a heat exchanger which cools the refrigerant gas and changes its state to a liquid before it is sent to the accumulator. Usually located in front of the radiator, its structure includes a set of tubes that participate in cooling. It is most likely that over the years different styles of A/C Condenser have been used in the different models of Ranger but the types are not explained. The main function stays the same across these versions, and it is connected with the proper functioning of refrigerant cooling in order to provide the proper work of air conditioning. The A/C Condenser is one of the crucial components of a vehicle's climate control system, and so its design and installation should be very well done.

We provide a wide range of Ford Ranger A/C Condenser at the best prices possible. If you need Ford Ranger A/C Condenser, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Ranger A/C Condenser Parts Questions & Experts Answers

Condenser Assembly
6L5Z-19712-CB
Q: How to remove and reinstall the A/C Condenser on 2000-2011 Ford Ranger?
A: Have the air conditioning system discharged. On all 4.0L engines, remove the air cleaner duct. Disconnect the refrigerant lines from the condenser. On some models, this requires a spring lock coupling tool similar to that used for fuel injection lines. Remove the mounting fasteners for the Radiator and tilt it back for clearance to remove the condenser. Be careful not to damage the radiator with the cooling fan when tilting or moving the radiator back. Radiator removal is recommended if clearance to remove the condenser cannot be achieved without damage to either component. Remove the top seal by removing the push-pin fasteners. Remove the mounting fasteners for the condenser. Lift the condenser out of the vehicle and plug the lines to keep dirt and moisture out. If the original condenser will be reinstalled, store it with the line fittings on top to prevent oil from draining out. If a new condenser is being installed, pour one ounce of refrigerant oil into it prior to installation. Use PAG oil for R-134a systems and mineral refrigerant oil for R-12 systems. Reinstall the components in the reverse order of removal. Be sure the rubber pads are in place under the condenser (if equipped). Be sure the seals are in place around the condenser (if equipped). Have the system evacuated, recharged, and leak tested by the shop that discharged it.
Condenser Assembly
6L5Z-19712-CB
Q: How to remove and reinstall the A/C Condenser on 1993-2011 Ford Ranger?
A: Have the air conditioning system discharged. On all 4.0L engines, remove the air cleaner duct. Disconnect the refrigerant lines from the condenser. On some models, this requires a spring lock coupling tool similar to that used for fuel injection lines. Remove the mounting fasteners for the Radiator and tilt it back for clearance to remove the condenser. Be careful not to damage the radiator with the cooling fan when tilting or moving the radiator back. Radiator removal is recommended if clearance to remove the condenser cannot be achieved without damage to either component. Remove the top seal by removing the push-pin fasteners. Remove the mounting fasteners for the condenser. Lift the condenser out of the vehicle and plug the lines to keep dirt and moisture out. If the original condenser will be reinstalled, store it with the line fittings on top to prevent oil from draining out. If a new condenser is being installed, pour one ounce of refrigerant oil into it prior to installation. Use PAG oil for R-134a systems and mineral refrigerant oil for R-12 systems. Reinstall the components in the reverse order of removal. Be sure the rubber pads are in place under the condenser (if equipped). Be sure the seals are in place around the condenser (if equipped). Have the system evacuated, recharged and leak tested by the shop that discharged it.
