Genuine Ford Ranger Timing Chain

Engine Timing Chain
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Ford
Ranger
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Timing Chains found

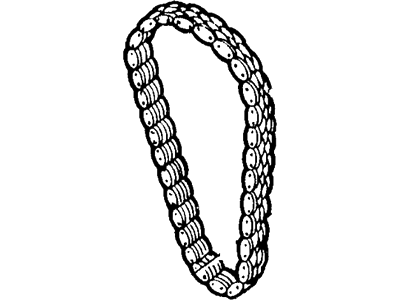

  • Ford Ranger Timing Chain - F77Z-6268-AB
    View related parts

    Ford Ranger Chain - Timing

    Part Number: F77Z-6268-AB
    $50.98 MSRP: $66.33
    You Save: $15.35 (24%)
    ADD TO CART
    Product Specifications
    • Other Name: Timing Chain
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 2001-2011 Ford Ranger | 6 Cyl 4.0L, 6 Cyl 4.0L SOHC EFI | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT, 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
  • Ford Ranger Timing Chain - F77Z-6268-BC
    View related parts

    Ford Ranger Chain Assembly

    Part Number: F77Z-6268-BC
    $44.46 MSRP: $65.00
    You Save: $20.54 (32%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Chain Assy; Chain, Timing Chain
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 2001-2003 Ford Ranger | 6 Cyl 4.0L | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT
  • Ford Ranger Timing Chain - 1L5Z-6268-AA
    View related parts

    Ford Ranger Chain - Timing

    Part Number: 1L5Z-6268-AA
    $45.08 MSRP: $65.33
    You Save: $20.25 (31%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Timing Chain
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 2001-2011 Ford Ranger | 4 Cyl 2.3L, 4 Cyl 2.3L NA Petrol | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT, 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
  • Ford Ranger Timing Chain - YF1Z-6268-BA
    View related parts

    Ford Ranger Chain - Timing

    Part Number: YF1Z-6268-BA
    $29.25 MSRP: $41.67
    You Save: $12.42 (30%)
    ADD TO CART
    Product Specifications
    • Other Name: Timing Chain
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1999-2008 Ford Ranger | 6 Cyl 3.0L, 6 Cyl 3.0L OHV EFI | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT, 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
  • Ford Ranger Timing Chain - E6DZ-6268-A
    View related parts

    Ford Ranger Gear Set - Cylinder

    Part Number: E6DZ-6268-A
    $64.64 MSRP: $94.50
    You Save: $29.86 (32%)
    ADD TO CART
    Product Specifications
    • Replaced by: YF1Z-6B290-AA
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1991-1999 Ford Ranger | 6 Cyl 3.0L | 4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5AT 5R55E, 5MT
  • Ford Ranger Timing Chain - C8SZ-6268-A
    View related parts
    Product Specifications
    • Other Name: Timing Chain
    • Manufacturer Note: 52 links
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1983-1987 Ford Ranger | 4 Cyl 2.0L, 4 Cyl 2.3L, 6 Cyl 2.9L | 3AT C3, 3AT C5, 4AT A4LD, 4MT, 5MT
  • Ford Ranger Timing Chain - D4TZ-6268-A
    View related parts
    Product Specifications
    • Other Name: Timing Chain
    • Manufacturer Note: CHAIN (TIMING)
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1988-1989 Ford Ranger | 4 Cyl 2.0L, 4 Cyl 2.3L, 6 Cyl 2.9L | 4AT A4LD, 5MT
  • Ford Ranger Timing Chain - F47Z-6268-B
    View related parts
    Product Specifications
    • Other Name: Timing Belt
    • Warranty: This genuine part is guaranteed by Ford's factory warranty.
    Fits the following Vehicles:
    • 1994 Ford Ranger | 4 Cyl 2.3L | 4AT A4LD, 5MT

Ford Ranger Timing Chain

The Timing Chain in Ford Ranger vehicles plays vital role of driving the rotation of the camshaft in conjunction with the crankshaft to achieve correct valve timing that is vital for the performance of the engine. As a wearing part that is found at the front of the engine, the Timing Chain demands lubrication, it is chiefly used in high-capacity engines. While rubber Timing Belt dominated the market starting with the 1970s, Metal Timing Chains have gradually replaced these mainly in the Ford Ranger models because of the longer times between replacements. Timing Chains like most other parts are usually durable but there issues may crop up from lack of lubrication, or a problem with the tensioner and chain guides and usually the engine will produce a rattling noise from the front. Compact or short chain drives are preferred in pushrod engine arrangements, which are capable to produce torque reversals much better, thus quieter and longer lasting compared to gear drives.

We provide a wide range of Ford Ranger Timing Chain at the best prices possible. If you need Ford Ranger Timing Chain, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Ranger Timing Chain Parts Questions & Experts Answers

  • Q: How do you check, remove, and install the timing chain and sprockets in 3.0L V6 engine on 2000-2011 Ford Ranger?
    A: Firstly, the left valve cover has to be taken off, and with that, loosen the number 5 cylinder exhaust valve Rocker Arm, turning it to the side. Fix a dial indicator on the end of the push rod in order to measure the vibration of the valve lifter. Loosen the crankshaft sprocket by a clock wise rotation providing the correct timing mark at piston number 1 at the Top Dead Center on degree indicator on the right side the chain will have slack. Scribe a zero line on the dial indicator stick and turn the crankshaft in the anticlockwise direction until the pointer shows the next increment on the dial indicator, observe how far the damper TDC timing mark has been from the pointer. If the reading is more than 6 then the timing chain and sprockets have to be replaced. Secondly, rotate the crankshaft in anticlock wise direction till the number one piston is at TDC, remove the negative terminal of the battery and lastly remove the timing chain cover. Locate the Camshaft sprocket bolt and loosen it but make sure that the engine is off when you do this, you then remove the sprocket with the chain still on. Pop the crankshaft sprocket off some ways, and make sure that you do not lose the tiny crankshaft key, then have a look at the timing chain and sprockets if they are worn or have been damaged and replace them altogether. For installation ensure that the sprockets and the chain are fixed on the camshaft and the crankshaft in such a way that the timing marks are in line then use a brass drift and hammer to fix the crankshaft sprocket into place. The camshaft bolt and washer are to be installed and the bolts tightened to the specified torque, if the camshaft bolt has a drilled to oil passage it has to be open before installing the bolt and do not use any other type of bolt than specified. Last of all, lubricate the timing chain and the sprockets and replace the timing chain cover as well as the other parts that were disconnected.
