How to replace an air spring in a Mercury Grand Marquis?

Turn off the air suspension switch. Loosen lug nuts, raise rear of vehicle and support securely on jackstands, remove wheel. Remove heat shield and spring retainer clip. To remove air spring solenoid, unplug electrical connector and disconnect air line, remove solenoid clip, rotate solenoid counterclockwise to first stop, pull solenoid straight out to second stop to bleed air, rotate solenoid counterclockwise to third stop and remove from housing. Use prybar to dislodge air spring from lower spring seat, remove spring. Position spring between frame seat and axle, pry into place. To install solenoid, inspect O-rings for damage, replace if necessary, apply silicone dielectric grease to O-rings. Insert solenoid into air spring end cap, rotate clockwise to third stop, push into second stop, rotate clockwise to first stop. Install solenoid clip. Install air spring into frame seat, install push-on spring retainer clip. Connect air line and plug in electrical connector. Install heat shield. Align lower end of air spring piston with axle seat. Push down on piston to snap into axle seat at rebound. Install wheel, remove jackstands and lower vehicle until wheels are on ground. Lower jack a little further, but not fully, until air springs are partially inflated. Turn on air suspension switch. Turn ignition key to On, allow air springs to partially inflate. Lower vehicle completely and allow springs to fully inflate. Tighten lug nuts to torque.

Genuine Mercury Grand Marquis Air Suspension

Air Ride

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Air Suspensions found

View related parts

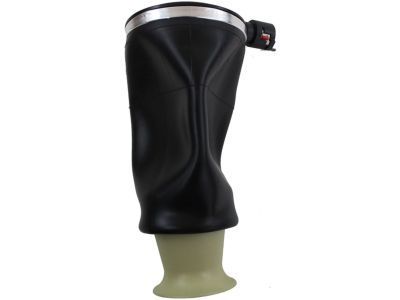

Mercury Grand Marquis Spring
Part Number: 3U2Z-5580-PA
$227.13 MSRP: $335.00
You Save: $107.87 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Spring
- Replaces: F8VZ-5560-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2005 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts

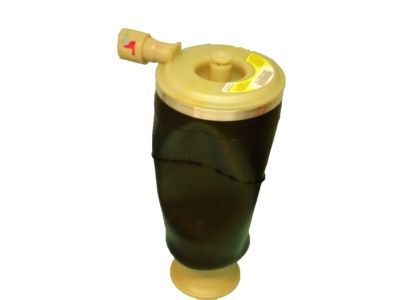

Mercury Grand Marquis Spring
Part Number: F8VZ-5560-AA
$227.13 MSRP: $335.00
You Save: $107.87 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 3U2Z-5580-PA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2004 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
View related parts

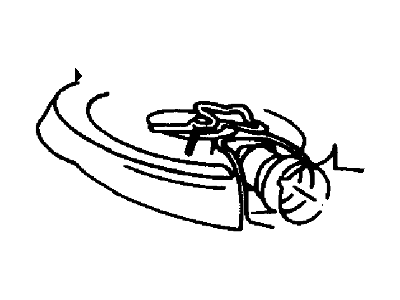

Mercury Grand Marquis Spring
Part Number: 6W1Z-5560-AA
Product Specifications
- Other Name: Air Spring
- Manufacturer Note: Air-ride suspension, with the solenoid
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2006-2011 Mercury Grand Marquis | 8 Cyl 4.6L, 8 Cyl 4.6L Romeo SOHC EFI | 4AT 4R70W, 4-Speed Automatic Transmission 4R75E Livonia, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts

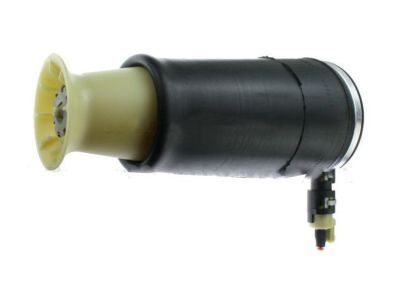

Mercury Grand Marquis Spring
Part Number: 3U2Z-5580-AA
Product Specifications
- Other Name: Air Spring, Coil Spring
- Replaces: F5AZ-5560-BB, F5AZ-5560-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1992-2004 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AOD, 4AT AODE
View related parts
Mercury Grand Marquis Spring
Part Number: F5AZ-5560-BB
Product Specifications
- Replaced by: 3U2Z-5580-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2004 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT 4R70W
- 1995-1998 Mercury Grand Marquis | 8 Cyl 4.6L | 4AT, 4AT 4R70W, 4AT AODE

Mercury Grand Marquis Air Suspension

The Air Suspension is found in Mercury Grand Marquis cars and exists to improve the vehicles' ride quality with the help of a rubber bag charged with compressed air. This design presents pressure control for customers, where the vehicle can be adjusted on output and flexibility to suit the driver. In contrast to the conventional unit called the coil spring, the Air Suspension offers a more versatile type of suspension. The Air Springs, over the time in the Grand Marquis, have been of different types which are the optimal suited for comfort with an apt handling. The main difference between them is the construction and the particular changes of air pressure they enable; these aspects can substantially affect the car's handling. This characteristic of giving and taking is one that displays the Air Spring in a higher league compared to normal suspension systems.

We provide a wide range of Mercury Grand Marquis Air Suspension at the best prices possible. If you need Mercury Grand Marquis Air Suspension, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Mercury Grand Marquis Air Suspension Parts Questions & Experts Answers

Spring
3U2Z-5580-PA
Q: How to replace an air spring in a Mercury Grand Marquis?
A: Turn off the air suspension switch. Loosen lug nuts, raise rear of vehicle and support securely on jackstands, remove wheel. Remove heat shield and spring retainer clip. To remove air spring solenoid, unplug electrical connector and disconnect air line, remove solenoid clip, rotate solenoid counterclockwise to first stop, pull solenoid straight out to second stop to bleed air, rotate solenoid counterclockwise to third stop and remove from housing. Use prybar to dislodge air spring from lower spring seat, remove spring. Position spring between frame seat and axle, pry into place. To install solenoid, inspect O-rings for damage, replace if necessary, apply silicone dielectric grease to O-rings. Insert solenoid into air spring end cap, rotate clockwise to third stop, push into second stop, rotate clockwise to first stop. Install solenoid clip. Install air spring into frame seat, install push-on spring retainer clip. Connect air line and plug in electrical connector. Install heat shield. Align lower end of air spring piston with axle seat. Push down on piston to snap into axle seat at rebound. Install wheel, remove jackstands and lower vehicle until wheels are on ground. Lower jack a little further, but not fully, until air springs are partially inflated. Turn on air suspension switch. Turn ignition key to On, allow air springs to partially inflate. Lower vehicle completely and allow springs to fully inflate. Tighten lug nuts to torque.
