Crankshaft & Flywheel & Related Parts fit your 1998 Ford Mustang 8 Cyl 4.6L 4-Speed Automatic Transmission 4R70W

Currently shopping for

1998 Ford Mustang

Change Vehicle

Vehicle Options

8 Cyl 4.6L; 4-Speed Automatic Transmission 4R70W

Vehicle Options

8 Cyl 4.6L; 4-Speed Automatic Transmission 4R70W

Categories Close X

Currently selected

Engine

Other Categories

Accelerator Linkage, Air Cleaner & Speed Control

Air Conditioner, Radios & Shock Absorbers

Alternator, Regulator, Battery, Starter & Distributor

Automatic Transmission

Body Front & Floor

Body Sides & Quarter

EM Exterior Moulding

Fenders & Hood

Frame, Exhaust System, Spring & Stabilizer

Front Suspension & Steering

Fuel System & Manifolds

IT Interior Trim Parts

Lamps & Wiring

Radiator & Grill

Rear Axle & Drive Shaft

Roof, Back, Luggage Compartment & Tailgate

SM Body Sheet metal

Seats

Speedometer, Bumpers, Mirrors & Wipers

Wheels & Brakes

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

F4AZ-6701-A
PACKING/SEAL (CRANKSHAFT REAR OIL)
Seal Assy - Crankshaft Oil
- Fit Note: 8 Cyl 4.6L
- Base Number: 6701
- Callout Name: 6701
$40.83 $28.67
1
Add To Cart

F1AZ-6A340-A
BOLT (CRANKSHAFT PULLEY)
Bolt - Flanged Hex.
- M12x52.5mm-Four reqd. for 6256 & 1 reqd. for 6312 attachments.-Also ref. group 6279, 4v
  M12x52.5mm-Two reqd. for 6256 & 1 reqd. for 6316 attachments.-also ref. group 6279, 2v
- Fit Note: 8 Cyl 4.6L
- Require Quantity: 3
- Package Quantity: 1
- Callout Name: 6A340
- Replaced By: F5RZ-6A340-B
$20.67 $14.51
1
Add To Cart

BOLT (FLYWHEEL ATTACHING)
F6ZZ-6379-AA
Bolt - Hex.Head
M10 x 26.5mm, M/T
Fit Note: 8 Cyl 4.6L
Base Number: 6379
Callout Name: 6379
$2.57 $1.80
3
Add To Cart
F1AZ-6379-A
Bolt - Hex.Head
- M10x1x20.5mm, A/T
- Fit Note: 8 Cyl 4.6L
- Base Number: 6379
- Callout Name: 6379
$20.11 $14.12
6
Add To Cart

F1AZ-6378-A
WASHER (CRANKSHAFT PULLEY RETAINING)
Washer
- Fit Note: 8 Cyl 4.6L
- Base Number: 6378
- Callout Name: 6378
$7.27 $5.10
2
Add To Cart

F6ZZ-7600-A
BEARING (CLUTCH PILOT)
Sleeve
- 3.8L, 4.6L
- Base Number: 7120
- Callout Name: 7600
$8.53 $5.99
1
Add To Cart

-N605917-S2
HARDWARE
Bolt
- Callout Name: N605917-S2
- Replaced By: -N605917-S439
$5.65 $3.31
4
Add To Cart

BOLT OR STUD (CRANKSHAFT MAIN BEARING CAP)
F1AZ-6345-A
Bolt - Bearing Cap - Hex. Head
Main cap bolt; M10x1.5x94 mm; Do not reuse when servicing main bearings, 2v
Main cap bolt; M10x1.5x94 mm; Do not reuse when servicing main bearings, 4v (Inner Bolt)
Fit Note: 8 Cyl 4.6L
Callout Name: 6345
Replaced By: 3L2Z-6345-AAA
$25.38 $20.44
4
Add To Cart
F1AZ-6345-B
Stud
- Main cap stud; M8x16xM10x94; Do not reuse when servicing main bearings., 2v
  Main cap stud; M8x16xM10x94; Do not reuse when servicing main bearings., 4v (Inner Stud)
- Fit Note: 8 Cyl 4.6L
- Callout Name: 6345
- Replaced By: 3L2Z-6345-AA
$31.50 $22.11
1
Add To Cart
F3LY-6345-A
Bolt - Bearing Cap - Hex. Head
- M8x82-For service do not reuse removed bolts when replacing 6333/6337 brgs., 4v (Outer Bolt)
- Fit Note: 8 Cyl 4.6L
- Require Quantity: 10
- Package Quantity: 4
- Callout Name: 6345
- Replaced By: 3L2Z-6345-BA
$70.00 $48.72
4
Add To Cart
F6AZ-6345-DA
Bolt - Bearing Cap - Hex. Head
- M8x64-Side bolts-For service do not reuse removed bolts when replacing 6333/6337 brgs., 2v
- Fit Note: 8 Cyl 4.6L
- Callout Name: 6345
- Replaced By: XW7Z-6345-AA
$23.17 $15.85
1
Add To Cart
F6LZ-6345-AA
Bolt - Bearing Cap - Hex. Head
- M8x33-Side bolts-For service do not reuse removed bolts when replacing 6333/6337 brgs., 4v (Side)
- Fit Note: 8 Cyl 4.6L
- Require Quantity: 10
- Package Quantity: 1
- Base Number: 6345
- Callout Name: 6345

F6AZ-6310-AB
SLINGER (CRANKSHAFT OIL)
Slinger
- Fit Note: 8 Cyl 4.6L
- Callout Name: 6310
- Replaced By: F65Z-6310-A
$14.33 $10.06
1
Add To Cart

-N806155-S2
HARDWARE
Bolt - Bearing Cap - Hex. Head
- Callout Name: N806155-S2
- Replaced By: -N806155-S437
$3.25 $1.91
4
Add To Cart

BEARING SET (CRANKSHAFT COMPLETE MAIN)
1L2Z-6D309-BA
Bearing - Crankshaft Main
Std. grade 2; Mini-kit; consists of 1 upper & 1 lower select fit bearing, 2v
Fit Note: 8 Cyl 4.6L
Base Number: 6D309
Callout Name: 6D309
$17.17 $12.05
1
Add To Cart
1L2Z-6D309-EA
Bearing - Crankshaft Main
- Std Thrust Mini Kit-Grade 2 select fit. 1 upper and 1 lower in box. Per Engineering these are select fit bearings and must be used per chart in shop manual. If chart not available contact Tech Hotline for assist., 2v
- Fit Note: 8 Cyl 4.6L
- Base Number: 6D309
- Callout Name: 6D309
$36.67 $25.08
1
Add To Cart
1L2Z-6D309-AA
Bearing - Crankshaft Main
- Std. grade 1; Mini-kit; consists of 1 upper & 1 lower select fit bearing, 2v
- Fit Note: 8 Cyl 4.6L
- Base Number: 6D309
- Callout Name: 6D309
$17.17 $13.73
1
Add To Cart
1L2Z-6D309-DA
Bearing - Crankshaft Main
- Std Thrust Mini Kit-Grade 1 select fit. 1 upper and 1 lower in box. Per Engineering these are select fit bearings and must be used per chart in shop manual. If chart not available contact Tech Hotline for assist., 2v
- Fit Note: 8 Cyl 4.6L
- Base Number: 6D309
- Callout Name: 6D309
$36.83 $25.19
1
Add To Cart
1L2Z-6D309-CA
Bearing - Crankshaft Main
- Std. grade 3; Mini-kit; consists of 1 upper & 1 lower select fit bearing, 2v
- Fit Note: 8 Cyl 4.6L
- Base Number: 6D309
- Callout Name: 6D309
$17.17 $12.05
1
Add To Cart
1L2Z-6D309-FA
Bearing - Crankshaft Main
- Std Thrust Mini Kit-Grade 3 select fit. 1 upper and 1 lower in box. Per Engineering these are select fit bearings and must be used per chart in shop manual. If chart not available contact Tech Hotline for assist., 2v
- Fit Note: 8 Cyl 4.6L
- Base Number: 6D309
- Callout Name: 6D309
$36.83 $25.86
1
Add To Cart
XW7Z-6D309-BYA
Bearing - Crankshaft Main
- Complete Kit,Upper & Lower,.25mm U/S,Replaces all individual bearings , 4v
- Fit Note: 8 Cyl 4.6L
- Base Number: 6D309
- Callout Name: 6D309
$84.68 $61.98
1
Add To Cart
2L3Z-6D309-NA
Bearing - Crankshaft Main
- Std. Complete kit with upper, lower, thrust & washer, 2v; With centered tabs.
- Fit Note: 8 Cyl 4.6L
- Base Number: 6D309
- Callout Name: 6D309
XW7Z-6D309-BXA
Bearing - Crankshaft Main
- Complete Kit-Upper & Lower-Std.-Replaces all individual bearings, 4v
- Fit Note: 8 Cyl 4.6L
- Base Number: 6D309
- Callout Name: 6D309
$0.00
XW7Z-6D309-BZA
Bearing - Crankshaft Main
- Complete Kit-Upper & Lower-.50mm U/S-Replaces all individual bearings, 4v
- Fit Note: 8 Cyl 4.6L
- Base Number: 6D309
- Callout Name: 6D309

F1AZ-6B316-A
KEY (CRANKSHAFT)
Key - Woodruff
- Fit Note: 8 Cyl 4.6L
- Callout Name: 6B316
- Replaced By: F1AZ-6B316-AA
$3.44 $2.42
2
Add To Cart

F6ZZ-7007-EA
PLATE (TRANS. ENGINE REAR COVER)
Plate - Cylinder Block Rear
- Plate - steel, 4.6L - SOHC/DOHC
- Fit Note: 8 Cyl
- Callout Name: 7007
- Replaced By: 8R3Z-7007-B
$45.33 $31.82
1
Add To Cart

FLYWHEEL ASY.
F3LY-6375-A
Flywheel Assy
SOHC; A/T
Fit Note: 8 Cyl 4.6L
Callout Name: 6375
Replaced By: 4W7Z-6375-AA
$87.83 $48.23
1
Add To Cart
F6ZZ-6375-AB
Flywheel Assy
- SOHC; M/T
- Fit Note: 8 Cyl 4.6L
- Base Number: 6375
- Callout Name: 6375
F6ZZ-6375-BB
Flywheel Assy
- DOHC; M/T
- Fit Note: 8 Cyl 4.6L
- Base Number: 6375
- Callout Name: 6375

F5AZ-6700-A
SEAL (OIL)
Seal Assy - Crankshaft Oil - Front
- Crankshaft front
- Location: Front
- Fit Note: 8 Cyl 4.6L
- Base Number: 6700
- Callout Name: 6700
$22.67 $22.09
1
Add To Cart

F2LZ-12A227-BB
RING (IGNITION PULSATOR C/S SENSOR)
Ring
- Base Number: 12A227
- Callout Name: 12A227

PULLEY ASY (CRANKSHAFT)

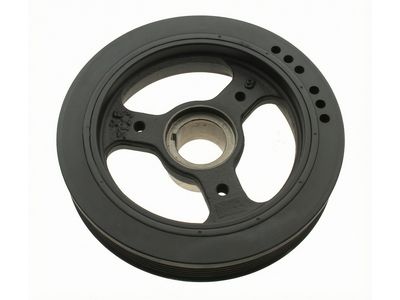

F3AZ-6316-A
Damper Assy
2v
Fit Note: 8 Cyl 4.6L
Base Number: 6316
Callout Name: 6312
$0.00
F6ZZ-6312-AB
Damper Assy
- 4V
- Fit Note: 8 Cyl 4.6L
- Base Number: 6312
- Callout Name: 6312

F1AZ-6C360-A
SCREW (CRANKSHAFT MAIN BEARING CAP ADJUSTING)
Screw - Adjusting
- 2v
- Fit Note: 8 Cyl 4.6L
- Base Number: 6C360
- Callout Name: 6C360
$4.39 $3.09
2
Add To Cart

F3AZ-6306-A
SPROCKET (CRANKSHAFT)
Gear - Crankshaft
- 9mm wide tooth surface
- Fit Note: 8 Cyl 4.6L
- Require Quantity: 2
- Package Quantity: 1
- Callout Name: 6306
- Replaced By: XL3Z-6306-BA
$59.17 $40.83
1
Add To Cart

F3LY-6A341-A
WASHER (CRANKSHAFT THRUST BRG UPPER)
Washer - Crankshaft
- Fit Note: 8 Cyl 4.6L
- Callout Name: 6A341
- Replaced By: F9ZZ-6A341-AA
$15.23 $10.69
1
Add To Cart

F5RZ-6397-D
RETAINER (CRANKSHAFT REAR OIL)
Hardware - Miscellaneous
- Align 6K301 to cyl. block, 2v
  Align 6K301 to cyl. block, 4v
- Fit Note: 8 Cyl 4.6L
- Require Quantity: 4
- Package Quantity: 4
- Callout Name: 6K301
- Replaced By: -W701228-S300
$4.25 $2.49
4
Add To Cart

CRANKSHAFT ASY.
F1AZ-6303-ARM
Crankshaft Assy
Incl. machined .25mm U/S crankshaft with matched tang type brgs.,If tangless #5 upper brg. is reqd. use F1AZ,6333,GA in this position. , 2v
Fit Note: 8 Cyl 4.6L
Base Number: 6303
Callout Name: 6303
F8ZZ-6303-AA
Crankshaft Assy
- 4V
- Fit Note: 8 Cyl 4.6L
- Base Number: 6303
- Callout Name: 6303

F6SZ-7007-A
PLATE (ENGINE REAR)
Plate - Cylinder Block Rear
- Plate - .070" steel, 4.6L/4R70W
- Fit Note: 8 Cyl
- Base Number: 7007
- Callout Name: 7007

F6ZZ-6384-AA
GEAR (FLYWHEEL RING)
Gear - Flywheel Ring
- Also incl. in 6375 asy., M/T
- Fit Note: 8 Cyl 4.6L
- Base Number: 6384
- Callout Name: 6384

Genuine Ford Parts, the Right Choice

FordPartsGiant.com offers the wholesale prices for genuine 1998 Ford Mustang parts. Parts like Crankshaft & Flywheel & Related Parts are shipped directly from authorized Ford dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 8 Cyl 4.6L. Transmission: 4AT 4R70W.
