How to crankshaft install in engine reassembly on 1993-2011 Ford Ranger?

Crankshaft installation is the first task in engine reassembly, assuming the engine block and crankshaft have been cleaned, inspected, and repaired. Position the engine with the bottom facing up, then remove the main bearing cap bolts and lift out the caps, laying them out in order for correct installation. If present, remove the original bearing inserts from the block and caps, ensuring the bearing surfaces are kept spotlessly clean. Clean the back sides of the new main bearing inserts and place one in each main bearing saddle in the block, ensuring the grooved insert is installed correctly. Lay the corresponding bearing from each set in the main bearing cap, ensuring the tab fits into the recess and that the oil holes align. The flanged thrust bearing must be installed in the third cap and saddle. Clean the bearing faces and crankshaft main bearing journals, checking or cleaning the oil holes in the crankshaft. Once the crankshaft is clean, lay it in position in the main bearings and check the main bearing oil clearance using Plastigage, placing it on each crankshaft main bearing journal. Clean the bearing faces in the caps and install them in their respective positions without mixing them up, tightening the main bearing cap bolts in three steps to the specified torque without rotating the crankshaft. After removing the bolts and caps, compare the width of the crushed Plastigage to the scale to obtain the main bearing oil clearance, ensuring it meets specifications. If the clearance is incorrect, check for dirt or oil interference before considering different bearing inserts. Carefully scrape off any Plastigage material from the main bearing journals and bearing faces. Lift the crankshaft out, clean the bearing faces in the block, and apply a thin layer of moly-base grease or engine assembly lube to each bearing surface, including the thrust faces. Ensure the crankshaft journals are clean before laying the crankshaft back in place, then clean the bearing faces in the caps and apply lubricant. Install the caps with arrows pointing toward the front of the engine, applying sealant where necessary, and install the bolts. Tighten all bolts except the thrust bearing cap bolts to the specified torque, then tighten the thrust bearing cap bolts to 10-to-12 ft-lbs. Tap the ends of the crankshaft to align the thrust surfaces, retightening all main bearing cap bolts to the specified torque while installing the rear main bearing oil seal. For manual transmission models, install a new pilot bearing in the crankshaft, then rotate the crankshaft by hand to check for binding. Finally, check the crankshaft endplay with a feeler gauge or dial indicator, ensuring it is correct if the thrust faces are not worn or damaged and new bearings are installed.

Genuine Ford Ranger Crankshaft

Crank Shaft

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

23 Crankshafts found

View related parts

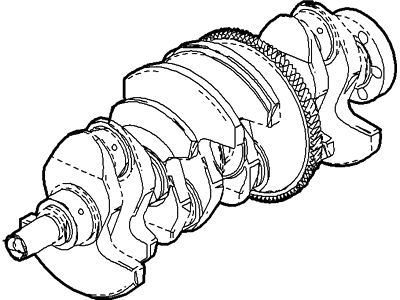

Ford Ranger Crankshaft Assembly
Part Number: 5L2Z-6303-AA
$244.80 MSRP: $340.00
You Save: $95.20 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Crankshaft Assy; Crankshaft
- Replaces: 1L2Z-6303-BA, F87Z-6303-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2011 Ford Ranger | 6 Cyl 4.0L, 6 Cyl 4.0L SOHC EFI | 4AT 4R44E, 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, 5AT 5R44E, 5AT 5R55E, 5MT, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- 1998 Ford Ranger | 6 Cyl 4.0L | 4AT 4R44E, 5AT 5R55E, 5MT
View related parts

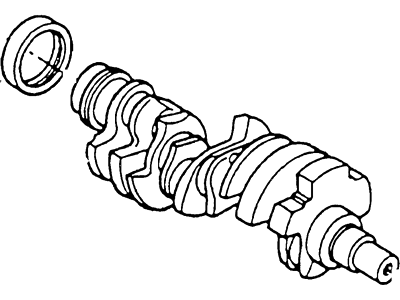

Ford Ranger CRANKSHAFT ASY
Part Number: LB5Z-6303-B
$256.51 MSRP: $378.33
You Save: $121.82 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Crankshaft
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2020-2023 Ford Ranger | 4 Cyl 2.3 L GAS
View related parts
Ford Ranger Crankshaft Assembly
Part Number: 2F1Z-6303-AA
$106.80 MSRP: $148.33
You Save: $41.53 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Crankshaft Assy; Crankshaft
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2008 Ford Ranger | 6 Cyl 3.0L, 6 Cyl 3.0L OHV EFI | 5AT 5R44E, 5AT 5R55E, 5MT, 5-Speed Automatic Transmission - 5R44E/5R55E, 5-Speed Manual Transmission - R1HD, 5-Speed Manual Transmission M5R1, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ranger Crankshaft Assembly
Part Number: F7TZ-6303-AC
$221.48 MSRP: $326.67
You Save: $105.19 (33%)
ADD TO CART
Product Specifications
- Other Name: Crankshaft Assy
- Replaced by: XL2Z-6303-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997 Ford Ranger | 6 Cyl 4.0L | 4AT 4R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Crankshaft Assembly
Part Number: 1L2Z-6303-BA
$230.52 MSRP: $340.00
You Save: $109.48 (33%)
ADD TO CART
Product Specifications
- Other Name: Crankshaft Assy
- Manufacturer Note: SOHC
- Replaced by: 5L2Z-6303-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2001-2003 Ford Ranger | 6 Cyl 4.0L | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Crankshaft Assembly
Part Number: F87Z-6303-BA
$230.52 MSRP: $340.00
You Save: $109.48 (33%)
ADD TO CART
Product Specifications
- Other Name: Crankshaft Assy
- Manufacturer Note: OHV
- Replaced by: 5L2Z-6303-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998 Ford Ranger | 6 Cyl 4.0L | 4AT 4R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Crankshaft Assembly
Part Number: E3AZ-6303-B
Product Specifications
- Other Name: CRANKSHAFT ASY
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1983-1989 Ford Ranger | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.3L, 6 Cyl 2.8L, 6 Cyl 2.9L | 3AT C3, 3AT C5, 4AT A4LD, 4MT, 5MT
View related parts
Ford Ranger Kit - Remanufactured
Part Number: E3TZ-6303-D
Product Specifications
- Manufacturer Note: #3Y, 3YA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1983-1989 Ford Ranger | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.3L, 6 Cyl 2.8L, 6 Cyl 2.9L | 3AT C3, 3AT C5, 4AT A4LD, 4MT, 5MT
View related parts
Ford Ranger Kit - Remanufactured Crankshaft
Part Number: E8DZ-6V303-ARM
Product Specifications
- Manufacturer Note: 12V
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1991-1994 Ford Ranger | 6 Cyl 3.0L | 4AT A4LD, 5MT
View related parts
Ford Ranger Kit - Remanufactured Crankshaft
Part Number: E9TZ-6V303-ARM
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990-1994 Ford Ranger | 4 Cyl 2.3L | 4AT A4LD, 5MT
View related parts
Ford Ranger Crankshaft Assembly
Part Number: F57Z-6303-A
Product Specifications
- Other Name: Crankshaft Assy; Crankshaft
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-1997 Ford Ranger | 4 Cyl 2.3L | 4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5AT 5R55E, 5MT
View related parts
Ford Ranger Kit - Remanufactured Crankshaft
Part Number: F57Z-6V303-ARM
Product Specifications
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-1996 Ford Ranger | 4 Cyl 2.3L | 4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5MT
View related parts
Ford Ranger Crankshaft Assembly
Part Number: F5DZ-6303-A
Product Specifications
- Other Name: CRANKSHAFT ASY
- Replaced by: XF1Z-6303-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-2001 Ford Ranger | 6 Cyl 3.0L | 4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5AT 5R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Kit - Remanufactured Crankshaft
Part Number: F5DZ-6V303-ARM
Product Specifications
- Manufacturer Note: 12V
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-1998 Ford Ranger | 6 Cyl 3.0L | 4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5AT 5R55E, 5MT
View related parts
Ford Ranger Kit - Remanufactured Crankshaft
Part Number: F5TZ-6V303-ARM
Product Specifications
- Manufacturer Note: OHV
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1995-1996 Ford Ranger | 6 Cyl 4.0L | 4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5MT
View related parts
Ford Ranger Kit - Remanufactured Crankshaft
Part Number: F7TZ-6V303-AARM
Product Specifications
- Manufacturer Note: OHV
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1997 Ford Ranger | 6 Cyl 4.0L | 4AT 4R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Crankshaft Assembly
Part Number: F87Z-6303-AA
Product Specifications
- Other Name: Crankshaft Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2001 Ford Ranger | 4 Cyl 2.5L | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Crankshaft Assembly
Part Number: F87Z-6303-AARM
Product Specifications
- Other Name: Crankshaft Assy; Crankshaft
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998-2001 Ford Ranger | 4 Cyl 2.5L | 4AT 4R44E, 5AT 5R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Kit - Remanufactured Crankshaft
Part Number: F87Z-6V303-BBRM
Product Specifications
- Manufacturer Note: OHV
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1998 Ford Ranger | 6 Cyl 4.0L | 4AT 4R44E, 5AT 5R55E, 5MT
View related parts
Ford Ranger Crankshaft & Bearings
Part Number: FOTZ6303A
Product Specifications
- Other Name: Crankshaft Assy; Crankshaft
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 1990 Ford Ranger | 6 Cyl 4.0L | 4AT A4LD, 5MT

| Page 1 of 2 |Next >

1-20 of 23 Results

Ford Ranger Crankshaft

We provide a wide range of Ford Ranger Crankshaft at the best prices possible. If you need Ford Ranger Crankshaft, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Ranger Crankshaft Parts Questions & Experts Answers

Kit - Remanufactured Crankshaft
E8DZ-6V303-ARM
Q: How to crankshaft install in engine reassembly on 1993-2011 Ford Ranger?
A: Crankshaft installation is the first task in engine reassembly, assuming the engine block and crankshaft have been cleaned, inspected, and repaired. Position the engine with the bottom facing up, then remove the main bearing cap bolts and lift out the caps, laying them out in order for correct installation. If present, remove the original bearing inserts from the block and caps, ensuring the bearing surfaces are kept spotlessly clean. Clean the back sides of the new main bearing inserts and place one in each main bearing saddle in the block, ensuring the grooved insert is installed correctly. Lay the corresponding bearing from each set in the main bearing cap, ensuring the tab fits into the recess and that the oil holes align. The flanged thrust bearing must be installed in the third cap and saddle. Clean the bearing faces and crankshaft main bearing journals, checking or cleaning the oil holes in the crankshaft. Once the crankshaft is clean, lay it in position in the main bearings and check the main bearing oil clearance using Plastigage, placing it on each crankshaft main bearing journal. Clean the bearing faces in the caps and install them in their respective positions without mixing them up, tightening the main bearing cap bolts in three steps to the specified torque without rotating the crankshaft. After removing the bolts and caps, compare the width of the crushed Plastigage to the scale to obtain the main bearing oil clearance, ensuring it meets specifications. If the clearance is incorrect, check for dirt or oil interference before considering different bearing inserts. Carefully scrape off any Plastigage material from the main bearing journals and bearing faces. Lift the crankshaft out, clean the bearing faces in the block, and apply a thin layer of moly-base grease or engine assembly lube to each bearing surface, including the thrust faces. Ensure the crankshaft journals are clean before laying the crankshaft back in place, then clean the bearing faces in the caps and apply lubricant. Install the caps with arrows pointing toward the front of the engine, applying sealant where necessary, and install the bolts. Tighten all bolts except the thrust bearing cap bolts to the specified torque, then tighten the thrust bearing cap bolts to 10-to-12 ft-lbs. Tap the ends of the crankshaft to align the thrust surfaces, retightening all main bearing cap bolts to the specified torque while installing the rear main bearing oil seal. For manual transmission models, install a new pilot bearing in the crankshaft, then rotate the crankshaft by hand to check for binding. Finally, check the crankshaft endplay with a feeler gauge or dial indicator, ensuring it is correct if the thrust faces are not worn or damaged and new bearings are installed.
