What precautions should be taken before beginning the cylinder head removal procedure in 2.0L SPI engine on Ford Focus?

The engine must be completely cool before beginning this procedure. The following procedure describes removing the cylinder head with the intake and exhaust manifolds attached, which may be easier if only the head gasket needs replacement. However, if planning any cylinder head servicing, it is probably easier to first disconnect the intake and exhaust manifolds from the cylinder head, tying them out of the way for separate removal. Begin by placing the No. 1 piston at top dead center, relieving the fuel system pressure, and disconnecting the fuel supply line at the fuel rail. Remove the battery and drain the cooling system. Take off the air cleaner and its outlet tube, label and disconnect the vacuum hoses from the intake manifold and other components, and remove the intake manifold brace. Label and disconnect all electrical connectors attaching the cylinder head to the engine and vehicle, including the two large PCM connectors near the power steering fluid reservoir. Disconnect the throttle cable and detach the cable bracket from the manifold, then disconnect the heated oxygen sensor electrical connector at the cooling fan shroud. Remove the engine oil dipstick tube, accessory drivebelt, alternator, and air conditioning compressor, loosening the accessory bracket's securing bolts. Detach the exhaust manifold from the catalytic converter and disconnect the electrical connectors for the knock sensor and engine oil pressure switch. Remove the timing belt and valve cover, disconnect the coolant hoses from the thermostat housing and throttle body, and loosen the cylinder head bolts in the opposite order of the tightening sequence in several stages. Remove and discard the cylinder head bolts, then remove the cylinder head with the intake and exhaust manifolds attached and the old gasket. Note the locations of the cylinder head dowels, remove them, and clean all traces of old gasket material from the mating surfaces, taking care to avoid scratching the aluminum cylinder head. It is advisable to check the cylinder head gasket surface for warpage while the head is off the vehicle. For installation, place a new head gasket on the cylinder block and locate the cylinder head on the dowels, ensuring any replaced dowels are completely seated and do not protrude excessively. Apply a thin coat of clean engine oil to the threads of new cylinder head bolts, install them, and tighten in stages following the proper sequence. The remainder of installation follows the reverse order of removal steps, after which run the engine and check for leaks.

Genuine Ford Focus Cylinder Head

Head

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Cylinder Heads found

View related parts

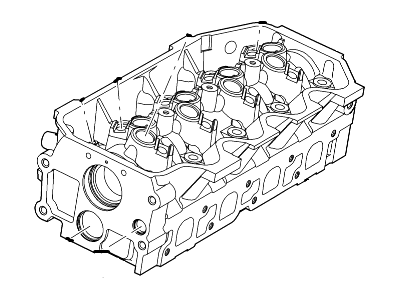

Ford Focus Cylinder Head Assembly
Part Number: G1FZ-6049-A
$1166.69 MSRP: $1595.38
You Save: $428.69 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head Assy
- Replaced by: G1FZ-6049-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2016-2018 Ford Focus | 4 Cyl 2.3L Ecoboost | 1-Speed Transmission, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
View related parts

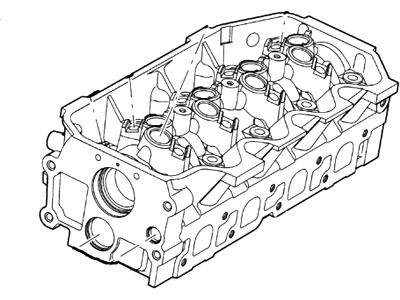

Ford Focus Cylinder Head Assembly
Part Number: CM5Z-6049-E
$800.85 MSRP: $1569.23
You Save: $768.38 (49%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head Assy; Cylinder Head
- Replaces: CM5Z-6049-D
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2018 Ford Focus | 3 Cyl 1.0L EcoBoost 120PS/125PS/140PS | 1-Speed Transmission, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: CJ5Z-6049-B
$754.53 MSRP: $1029.23
You Save: $274.70 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head Assy; Cylinder Head
- Replaced by: CJ5Z-6049-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2013-2018 Ford Focus | 4 Cyl 2.0L EcoBoost (240PS) | 1-Speed Transmission, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: 3S7Z-6049-BB
$638.19 MSRP: $872.31
You Save: $234.12 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head Assy; Cylinder Head
- Replaces: 8U7Z-6049-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2011 Ford Focus | 4 Cyl 2.0L Duratec HE | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: 6S4Z-6049-B
$379.14 MSRP: $633.85
You Save: $254.71 (41%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head Assy; Cylinder Head
- Replaces: 1S7Z-6049-BA, 6S4Z-6049-A
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2011 Ford Focus | 4 Cyl 2.0L Duratec HE | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: YS4Z-6049-AA
$1104.58 MSRP: $1534.44
You Save: $429.86 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head Assy; Cylinder Head
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2000-2004 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.0L Zetec EFI | 4AT 4F27E, 4-Speed Automatic Transaxle - 4F27E, 5MT, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6MT, 6-Speed Manual Transmission, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: CM5Z-6049-A
$759.01 MSRP: $1035.38
You Save: $276.37 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head Assy
- Replaced by: FM5Z-6049-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2012-2014 Ford Focus | 4 Cyl 2.0L DI TIVCT Petrol | 1-Speed Transmission, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: 1S7Z-6049-BA
$379.14 MSRP: $633.85
You Save: $254.71 (41%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head Assy
- Replaced by: 6S4Z-6049-B
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2005-2007 Ford Focus | 4 Cyl 2.0L Duratec HE | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - MTX75, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: FM5Z-6049-A
$759.01 MSRP: $1035.38
You Save: $276.37 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cylinder Head Assy
- Replaced by: FM5Z-6049-C
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2015-2018 Ford Focus | 4 Cyl 2.0L DI TIVCT Petrol | 1-Speed Transmission, 5-Speed Manual Transmission - MTX75, 6-Speed Automatic Transmission 6F15, 6-Speed Automatic Transmission DPS6, 6-Speed Manual Transaxle - MMT6, 6-Speed Manual Transmission - B6, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: 2M5Z-6049-AA
Product Specifications
- Other Name: Cylinder Head Assy; Cylinder Head
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2004 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.0L Zetec VVT | 4AT 4F27E, 4-Speed Automatic Transaxle - 4F27E, 5MT, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6MT, 6-Speed Manual Transmission, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: 2M5Z-6049-AB
Product Specifications
- Other Name: Cylinder Head Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2002-2004 Ford Focus | 4 Cyl 2.0L, 4 Cyl 2.0L Zetec VVT | 4AT 4F27E, 4-Speed Automatic Transaxle - 4F27E, 5MT, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6MT, 6-Speed Manual Transmission, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: 3S4Z-6049-AAA
Product Specifications
- Other Name: Cylinder Head Assy
- Manufacturer Note: With Valves
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003 Ford Focus | 4 Cyl 2.3L | 4AT 4F27E, 5MT, 6MT
View related parts
Ford Focus Cylinder Head Assembly
Part Number: 4S4Z-6049-AA
Product Specifications
- Other Name: Cylinder Head Assy; Cylinder Head
- Manufacturer Note: With Valves
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004-2007 Ford Focus | 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6-Speed Manual Transmission, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: YS4Z-6049-FA
Product Specifications
- Other Name: Cylinder Head Assy
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2004 Ford Focus | 4 Cyl 2.0L CVH EFI | 4-Speed Automatic Transaxle - 4F27E, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6-Speed Manual Transmission, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- 2000-2002 Ford Focus | 4 Cyl 2.0L | 4AT 4F27E, 5MT, 6MT
View related parts
Ford Focus Cylinder Head Assembly
Part Number: YS4Z-6049-GA
Product Specifications
- Other Name: Cylinder Head Assy; Cylinder Head
- Manufacturer Note: All additional part must be purchased seperatly, Bare head only
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003 Ford Focus | 4 Cyl 2.0L | 4AT 4F27E, 5MT, 6MT
View related parts
Ford Focus Cylinder Head Assembly
Part Number: 3S4Z-6049-AA
Product Specifications
- Other Name: Cylinder Head Assy
- Replaced by: 6S4Z-6049-BA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2006 Ford Focus | 4 Cyl 2.3L | 4AT 4F27E, 4-Speed Automatic Transaxle - 4F27E, 5MT, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 6MT, 6-Speed Manual Transmission, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Focus Cylinder Head Assembly
Part Number: 6S4Z-6049-BA
Product Specifications
- Other Name: Cylinder Head Assy; Cylinder Head
- Manufacturer Note: Less Valves
- Replaces: 3S4Z-6049-AA
- Warranty: This genuine part is guaranteed by Ford's factory warranty.
Fits the following Vehicles:
- 2003-2007 Ford Focus | 4 Cyl 2.3L | 4-Speed Automatic Transaxle - 4F27E, 4AT 4F27E, 5-Speed Manual Transmission - B5/IB5, 5-Speed Manual Transmission - MTX75, 5MT, 6-Speed Manual Transmission, 6MT, Front-Wheel Drive (Left Hand Drive), Left Hand Drive

Ford Focus Cylinder Head

We provide a wide range of Ford Focus Cylinder Head at the best prices possible. If you need Ford Focus Cylinder Head, you can shop with confidence on our website. All our OEM parts come with a manufacturer's warranty and are delivered to your door step with a fast delivery service.

Ford Focus Cylinder Head Parts Questions & Experts Answers

Cylinder Head Assembly
YS4Z-6049-FA
Q: What precautions should be taken before beginning the cylinder head removal procedure in 2.0L SPI engine on Ford Focus?
A: The engine must be completely cool before beginning this procedure. The following procedure describes removing the cylinder head with the intake and exhaust manifolds attached, which may be easier if only the head gasket needs replacement. However, if planning any cylinder head servicing, it is probably easier to first disconnect the intake and exhaust manifolds from the cylinder head, tying them out of the way for separate removal. Begin by placing the No. 1 piston at top dead center, relieving the fuel system pressure, and disconnecting the fuel supply line at the fuel rail. Remove the battery and drain the cooling system. Take off the air cleaner and its outlet tube, label and disconnect the vacuum hoses from the intake manifold and other components, and remove the intake manifold brace. Label and disconnect all electrical connectors attaching the cylinder head to the engine and vehicle, including the two large PCM connectors near the power steering fluid reservoir. Disconnect the throttle cable and detach the cable bracket from the manifold, then disconnect the heated oxygen sensor electrical connector at the cooling fan shroud. Remove the engine oil dipstick tube, accessory drivebelt, alternator, and air conditioning compressor, loosening the accessory bracket's securing bolts. Detach the exhaust manifold from the catalytic converter and disconnect the electrical connectors for the knock sensor and engine oil pressure switch. Remove the Timing Belt and valve cover, disconnect the coolant hoses from the thermostat housing and throttle body, and loosen the cylinder head bolts in the opposite order of the tightening sequence in several stages. Remove and discard the cylinder head bolts, then remove the cylinder head with the intake and exhaust manifolds attached and the old gasket. Note the locations of the cylinder head dowels, remove them, and clean all traces of old gasket material from the mating surfaces, taking care to avoid scratching the aluminum cylinder head. It is advisable to check the cylinder head gasket surface for warpage while the head is off the vehicle. For installation, place a new head gasket on the cylinder block and locate the cylinder head on the dowels, ensuring any replaced dowels are completely seated and do not protrude excessively. Apply a thin coat of clean engine oil to the threads of new cylinder head bolts, install them, and tighten in stages following the proper sequence. The remainder of installation follows the reverse order of removal steps, after which run the engine and check for leaks.
