77 Ignition Coils found

View related parts
Ford Ignition Coil Assembly
Part Number: JL3Z-12029-A
$61.77 MSRP: $104.18
You Save: $42.41 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition; Ignition Coil
Fits the following Ford Models:
- Explorer | 2020-2023 | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
- F-150 | 2018-2023 | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3L Duratec, 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Police Interceptor Utility | 2020-2025 | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
- Transit | 2020-2025 | 6 Cyl 3.5 L FLEX
View More
View related parts
Ford Ignition Coil Assembly
Part Number: HL3Z-12029-D
$81.86 MSRP: $122.00
You Save: $40.14 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly - Ignition; Ignition Coil
- Replaces: DG-560, HL3Z-12029-A
Fits the following Ford Models:
- Expedition | 2018-2021 | 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-150 | 2017-2020 | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L GAS, 6 Cyl 3.5L GTDI, 8 Cyl 5.0 L FLEX | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- GT | 2017-2019 | 6 Cyl 3.5L GTDI | 7-Speed Automatic Transmission DCT
View More
View related parts
Ford Ignition Coil Assembly
Part Number: 9E5Z-12029-A
$67.16 MSRP: $113.27
You Save: $46.11 (41%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition; Coil, Ignition Coil
Fits the following Ford Models:
- C-Max | 2013-2018 | 4 Cyl 2.0L Duratec Hybrid (130kW) | ECVT Auto Trans Power Split, Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
- Escape | 2009-2019 | 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS) , 4 Cyl 2.5L PFI Gas/Electric | 4AT CD4E, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive)
- Fusion | 2010-2020 | 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.0 L GAS, 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV), 4 Cyl 2.0L Duratec Hybrid (130kW), 4 Cyl 2.5 L FLEX, 4 Cyl 2.5 L GAS, 4 Cyl 2.5L Duratec (110kW/150PS), 4 Cyl 2.5L Duratec FFV (125kW/170PS), 4 Cyl 2.5L Duratec HE PFI, 4 Cyl 2.5L PFI Gas/Electric | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transmission - B6, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, ECVT Auto Trans Power Split, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Police Responder Hybrid | 2019-2020 | 4 Cyl 2.0 L FULL HYBRID EV-GAS (FHEV)
- SSV Plug-In Hybrid | 2019-2020 | 4 Cyl 2.0 L PLUG-IN HYBRID EV-GAS (PHEV)
- Transit Connect | 2014-2022 | 4 Cyl 2.0 L FLEX, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L CNG, 4 Cyl 2.5 L GAS, 4 Cyl 2.5 L LPG, 4 Cyl 2.5L Duratec (110kW/150PS) | 6-Speed Automatic Transmission 6F Mid-Range, 8-Speed Automatic Transmission 8F35, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More
View related parts
Ford Ignition Coil Assembly
Part Number: JX6Z-12029-B
$83.62 MSRP: $135.45
You Save: $51.83 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly - Ignition; Ignition Coil
- Replaces: DG-574, JX6Z-12029-A
Fits the following Ford Models:
- Bronco | 2021-2025 | 4 Cyl 2.3 L GAS
- Bronco Sport | 2021-2025 | 4 Cyl 2.0 L GAS
- Edge | 2019-2024 | 4 Cyl 2.0 L GAS, 4 Cyl 2.0L EcoBoost (240PS), 6 Cyl 2.7 L GAS | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
- Escape | 2020-2022 | 3 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.5 L PLUG-IN HYBRID EV-GAS (PHEV)
- Explorer | 2020-2024 | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
- Maverick | 2022-2024 | 4 Cyl 2.0 L GAS, 4 Cyl 2.5 L FULL HYBRID EV-GAS (FHEV)
- Ranger | 2019-2025 | 4 Cyl 2.3 L GAS, 4 Cyl 2.3L TIVCT DI TC, 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS | 10-Speed Automatic Transmission (10R80), 2 Whl L/H Rear Drive-High Ride, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive
- Transit Connect | 2018-2023 | 4 Cyl 2.0 L FLEX, 4 Cyl 2.0 L GAS, 4 Cyl 2.0L Duratec DI TIVCT (154PS), 4 Cyl 2.5 L CNG, 4 Cyl 2.5 L GAS, 4 Cyl 2.5 L LPG | 6-Speed Automatic Transmission 6F Mid-Range, 8-Speed Automatic Transmission 8F35, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More
View related parts
Ford Ignition Coil Assembly
Part Number: HL3Z-12029-A
$81.86 MSRP: $122.00
You Save: $40.14 (33%)
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition
- Replaced by: HL3Z-12029-D
Fits the following Ford Models:
- Expedition | 2018-2019 | 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- F-150 | 2017-2019 | 6 Cyl 3.5L GTDI | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- GT | 2017-2019 | 6 Cyl 3.5L GTDI | 7-Speed Automatic Transmission DCT
View More
View related parts
Ford Ignition Coil Assembly
Part Number: 4L7Z-12029-AB
$62.96 MSRP: $102.00
You Save: $39.04 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition; Coil, Ignition Coil
- Replaces: 2C6Z-12029-AA, 4L7Z-12029-AA
Fits the following Ford Models:
- GT | 2005-2006 | 8 Cyl 5.4L DOHC EFI S/C ALUM | 6-Speed Manual Rear Transaxle
- Mustang | 2007-2014, 2002-2004 | 8 Cyl 4.6L DOHC EFI, 8 Cyl 4.6L DOHC EFI S/C, 8 Cyl 4.6L SOHC EFI, 8 Cyl 5.4L DOHC EFI S/C ALUM, 8 Cyl 5.8L DOHC SC | 4-Speed Automatic Transmission 4R70W (AODE), 4AT 4R75W, 5-Speed Automatic Transmission 5R55S, 5-Speed Manual Transmission (T450D), 5-Speed Manual Transmission T5OD, 5-Speed Manual Transmission TR3650, 6-Speed Automatic Transmission (6R80), 6-Speed Manual Transmission (T56), 6-Speed Manual Transmission Tremec T56, 6-Speed Manual Transmission-MT82, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ignition Coil Assembly
Part Number: 6E5Z-12029-AA
$74.20 MSRP: $101.39
You Save: $27.19 (27%)
ADD TO CART
Product Specifications
- Other Name: Coil Assembly - Ignition; Ignition Coil
Fits the following Ford Models:
- Fusion | 2006-2009 | 4 Cyl 2.3L | 5-Speed Automatic Transmission Mazda FNR5, 5-Speed Manual Transmission (G5M), 6-Speed Automatic Transaxle - AWF21, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Manual Transmission Mazda G6M, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts
Ford Ignition Coil Assembly
Part Number: 1L8Z-12029-AB
$84.85 MSRP: $115.94
You Save: $31.09 (27%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition
Fits the following Ford Models:
- Escape | 2001-2008 | 6 Cyl 3.0L DOHC EFI Modular | 4AT CD4E, 5-Speed Manual Transmission, 5-Speed Manual Transmission - AK, 6-Speed Automatic Transmission 6F Mid-Range, CVT Auto Trans Powersplit Elec, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Right Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive, Two-Wheel Drive (Left Hand Drive), Two-Wheel Drive (Right Hand Drive)
- Five Hundred | 2005-2007 | 6 Cyl 3.0L DOHC EFI Modular | 6-Speed Automatic Transaxle - AWF21, CVT Select Shift Transmission, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Freestyle | 2005-2007 | 6 Cyl 3.0L DOHC EFI Modular | CVT Select Shift Transmission, Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Taurus | 2004 | 6 Cyl 3.0L | 4AT 4F50N
View More
View related parts
Ford Ignition Coil Assembly
Part Number: BE8Z-12029-Z
$209.28 MSRP: $341.82
You Save: $132.54 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition; Ignition Coil
Fits the following Ford Models:
- Fiesta | 2011 | 4 Cyl 1.6L TIVCT PFI Sigma | 5-Speed Manual Transmission - B5/IB5, 6-Speed Automatic Transmission GFT DPS6
View related parts
Ford Ignition Coil Assembly
Part Number: JT4Z-12029-A
$89.06 MSRP: $132.73
You Save: $43.67 (33%)
ADD TO CART
Product Specifications
- Other Name: COIL ASY - IGNITION
- Replaced by: PB5Z-12029-A
Fits the following Ford Models:
- F-150 | 2018-2019 | 6 Cyl 2.7L | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ignition Coil Assembly
Part Number: AA5Z-12029-A
$86.64 MSRP: $140.36
You Save: $53.72 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly - Ignition; Ignition Coil
Fits the following Ford Models:
- Flex | 2010-2012 | 6 Cyl 3.5L DOHC T/C | 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
- Taurus | 2010-2012 | 6 Cyl 3.5L DOHC T/C | 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, Four-Wheel Drive (Full Time) (Left Hand Drive), Four-Wheel Drive (Part Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View related parts

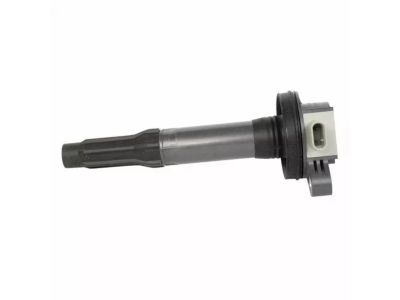

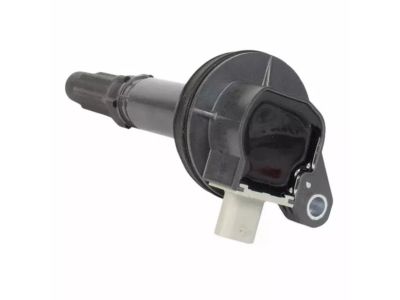

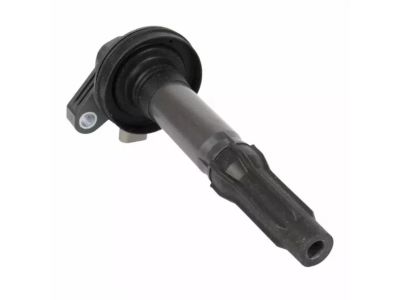

Ford Ignition Coil Assembly
Part Number: GR3Z-12029-C
$74.98 MSRP: $121.45
You Save: $46.47 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assembly - Ignition; Coil, Ignition Coil
- Replaces: DG-558, DG-559, GR3Z-12029-B, GR3Z-12029-A
Fits the following Ford Models:
- Mustang | 2022, 2015-2020 | 4 Cyl 2.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS, 8 Cyl 5.2L | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), 6-Speed Manual Transmission-3160, 6-Speed Manual Transmission-MT82, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ignition Coil Assembly
Part Number: F57Z-12029-A
$161.04 MSRP: $220.04
You Save: $59.00 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition
- Replaced by: F57Z-12029-B
Fits the following Ford Models:
- Aerostar | 1997 | 6 Cyl 3.0L | 4AT 4R44E, 5AT 5R55E
- E-150 | 1997 | 6 Cyl 4.2L | 4AT 4R70W, 4AT E4OD
- E-250 | 1997 | 6 Cyl 4.2L | 4AT 4R70W, 4AT E4OD
- F-150 | 1997 | 6 Cyl 4.2L | 4AT 4R70W, 4AT E4OD, 5MT
- Ranger | 1995-2000 | 6 Cyl 3.0L | 4AT 4R44E, 4AT 4R55E, 4AT A4LD, 5AT 5R55E, 5MT
View More
View related parts
Ford Ignition Coil Assembly
Part Number: 2W4Z-12029-BD
$52.41 MSRP: $84.91
You Save: $32.50 (39%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition
- Replaced by: 2W4Z-12029-B
Fits the following Ford Models:
- Thunderbird | 2002-2005 | 8 Cyl 3.9L DOHC EFI NA | 5-Speed Automatic Transmission 5R55S, 5-Speed Automatic Transmission NAAO 5R55N, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ignition Coil Assembly
Part Number: 4L7Z-12029-AA
$62.96 MSRP: $102.00
You Save: $39.04 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition
- Replaced by: 4L7Z-12029-AB
Fits the following Ford Models:
- GT | 2005-2006 | 8 Cyl 5.4L DOHC EFI S/C ALUM | 6-Speed Manual Rear Transaxle
- Mustang | 2007-2010 | 8 Cyl 5.4L DOHC EFI S/C ALUM | 5-Speed Automatic Transmission 5R55S, 5-Speed Manual Transmission T5OD, 5-Speed Manual Transmission TR3650, 6-Speed Manual Transmission (T56), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ignition Coil Assembly
Part Number: GR3Z-12029-A
$81.50 MSRP: $121.45
You Save: $39.95 (33%)
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition
- Replaced by: GR3Z-12029-C
Fits the following Ford Models:
- Mustang | 2015-2019 | 8 Cyl 5.2L | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), 6-Speed Manual Transmission-3160, 6-Speed Manual Transmission-MT82, Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
View related parts
Ford Ignition Coil Assembly
Part Number: F5RZ-12029-C
$144.05 MSRP: $243.64
You Save: $99.59 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Coil Assy - Ignition
- Replaced by: F5RZ-12029-D
Fits the following Ford Models:
- Contour | 1995-1999 | 4 Cyl 2.0L | 4AT CD4E, 5MT
- Escort | 1998-2003 | 4 Cyl 2.0L | 4AT F4E-III, 5MT
View related parts
Ford Ignition Coil Assembly
Part Number: PB5Z-12029-A
$81.94 MSRP: $132.73
You Save: $50.79 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: COIL ASY - IGNITION; Ignition Coil
- Replaces: DG-567, DG-583, JT4Z-12029-A, KT4Z-12029-A
Fits the following Ford Models:
- Bronco | 2021-2025 | 6 Cyl 2.7 L GAS, 6 Cyl 3.0 L GAS
- Edge | 2020-2024 | 4 Cyl 2.0 L GAS, 6 Cyl 2.7 L GAS
- Explorer | 2020-2025 | 4 Cyl 2.3 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
- F-150 | 2018-2025 | 6 Cyl 2.7L, 6 Cyl 3.0 L DIESEL, 6 Cyl 3.3 L FLEX, 6 Cyl 3.5 L FULL HYBRID EV-GAS (FHEV), 6 Cyl 3.5 L GAS, 8 Cyl 5.0 L FLEX | 10-Speed Automatic Transmission (10R80), 6-Speed Automatic Transmission (6R80), Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive, Rear-Wheel Drive (Left Hand Drive)
- Police Interceptor Utility | 2020-2025 | 6 Cyl 3.0 L GAS, 6 Cyl 3.3 L FLEX, 6 Cyl 3.3 L FULL HYBRID EV-GAS (FHEV)
- Ranger | 2024-2025 | 4 Cyl 2.3 L GAS, 6 Cyl 2.7 L GAS
View More
View related parts
Ford Ignition Coil Assembly
Part Number: KR3Z-12029-B
$121.22 MSRP: $196.36
You Save: $75.14 (39%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: COIL ASY - IGNITION; Coil, Ignition Coil
Fits the following Ford Models:
- F-150 | 2023-2025 | 6 Cyl 2.7 L GAS, 8 Cyl 5.0 L FLEX, 8 Cyl 5.2 L GAS
- Mustang | 2020-2022 | 4 Cyl 2.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.2 L GAS
View related parts
Ford Ignition Coil Assembly
Part Number: JX6Z-12029-A
$90.89 MSRP: $135.45
You Save: $44.56 (33%)
ADD TO CART
Product Specifications
- Other Name: COIL ASY - IGNITION
- Replaced by: JX6Z-12029-B
Fits the following Ford Models:
- Edge | 2019 | 4 Cyl 2.0L EcoBoost (240PS) | 6-Speed Automatic Transmission 6DCT450 - MPS6, 6-Speed Automatic Transmission 6F Mid-Range, 6-Speed Automatic Transmission 6F50, 6-Speed Automatic Transmission 6F55, 6-Speed Manual Transaxle - MMT6, 8-Speed Automatic Transmission 8F57, Four-Wheel Drive (Full Time) (Left Hand Drive), Front-Wheel Drive (Left Hand Drive), Front-Wheel Drive (Right Hand Drive), Left Hand Drive, RHD 4WD (FTD)
- Ranger | 2019 | 4 Cyl 2.3L TIVCT DI TC | 10-Speed Automatic Transmission (10R80), 2 Whl L/H Rear Drive-High Ride, Four-Wheel Drive (Part Time) (Left Hand Drive), Left Hand Drive
- Transit Connect | 2018-2019 | 4 Cyl 2.0L Duratec DI TIVCT (154PS) | 6-Speed Automatic Transmission 6F Mid-Range, 8-Speed Automatic Transmission 8F35, Front-Wheel Drive (Left Hand Drive), Left Hand Drive
View More

| Page 1 of 4 |Next >

1-20 of 77 Results

About Ford Ignition Coil

The most critical component to keeping a car running smoothly is the Ignition Coil. Without a working Ford Ignition Coil, your vehicle can suffer major performance issues and even automotive breakdown. With regular maintenance and replacement, you can save big by avoiding the hassle of an expensive repair jobs in the future.

Ford Ignition Coil Parts Questions & Experts Answers

Ignition Coil Assembly
1L2Z-12029-AA
Q: How to clean and inspect ignition coils on Ford Excursion?
A:
First of all, the coils should be wiped clean with a damp cloth and left to dry completely. Look for any cracks, damage or carbon tracking on each coil. Be certain that the coil fits tightly on the spark plug. Replace the coil if it is damaged. To get to the spark plugs, you have to take out the ignition coil, disconnect the electrical connector and remove the coil retaining screw. Pull straight up and out to remove the coil.
Ignition Coil Assembly
BL3Z-12029-C
Q: How to replace the ignition coil on Ford F-150?
A:
Disconnect the cable from the negative battery terminal. For 4.2L V6 models, disconnect the electrical connector from the ignition coil, then disconnect the spark plug wires from the ignition coil. Remove the ignition coil mounting bolts and take the coil out from the valve cover, with installation being the reverse of removal. For 3.5L and 3.7L V6, and all V8 models, this procedure applies to all eight ignition coils. Disconnect the electrical connector from the ignition coil by depressing the release tab and pulling off the connector. If removing more than one ignition coil, mark each electrical connector with its corresponding coil to avoid mix-ups during reassembly. Remove the ignition coil hold-down bolt, then grasp the ignition coil firmly and pull it straight up. Inspect the condition of the rubber boot that insulates the connection between the coil high-tension terminal and the spark plug; if it is cracked, torn, or otherwise deteriorated, replace it. To disconnect the boot, simply pull it off the coil, ensuring not to pull off the spring that carries the current to the plug. Prior to installing the coil, coat the interior of the rubber boot with silicone dielectric compound, with installation otherwise being the reverse of removal.
Ignition Coil Assembly
3L3Z-12029-BA
Q: How to remove and install the ignition coil on Ford Mustang?
A:
Disconnect the cable from the negative battery terminal. For the 4.0L V6 engine, disconnect the electrical connector from the ignition coil, then disconnect the spark plug wires from the ignition coil. Remove the ignition coil mounting bolts and take the coil out from the valve cover, with installation being the reverse of removal. For the 4.6L V8 and all 2011 and later models, this procedure applies to all ignition coils. On 3.7L V6 engines, the upper intake manifold must be removed to access the ignition coils on the right-hand side. Disconnect the electrical connector from the ignition coil by depressing the release tab and pulling off the connector. If removing more than one ignition coil, mark each electrical connector with its corresponding coil to avoid mix-ups during reassembly. Remove the ignition coil hold-down bolt, then grasp the ignition coil firmly and pull it straight up. Inspect the condition of the rubber boot that insulates the connection between the coil high-tension terminal and the spark plug; if it is cracked, torn, or otherwise deteriorated, replace it. To disconnect the boot, simply pull it off the coil, ensuring not to remove the spring that carries the current to the plug. Prior to installing the coil, coat the interior of the rubber boot with silicone dielectric compound, and installation is otherwise the reverse of removal.
