Wiring System - Body fit your 1998 Ford Taurus 8 Cyl 3.4L 4-Speed Automatic Transmission AX4N

COURTESY LAMP: INSTRUMENT PANEL IND#168
Rear license lamp - IND#168
Side lamp located in bumper IND#168

CONSOLE: ROOF IND#912
REAR HI-MOUNT (STOP): IND#912

Engine compartment lamp IND#906
Luggage compartment lamp IND#906

Courtesy Lamp: footwell IND#161
PRNDL floor console, IND#161

Backup lamp IND#3156
CORNERING LAMP IND#3156
Rear reflector IND#3156
Rear turn lamp IND#3156

Blower motor (Type 12)
Cargo lamp (Type 12)
Cigar lighter (Type 12)
Delayed accessory (Type 12)
Door lock (All) (Type 12)
Heated backlight (Type 12)
High speed and low speed cooling fan relay
One touch down (Type 12)
Starter (Type 12)
Trunk/liftgate release (Type 12)

Back-up chime (Type 12)
Rap high beam (Type 12)

Air pump (EAP) relay - attached to side of air pump

Amp. 175 - Megafuse - also supplied in the 14290 harness

Amp. 125 - Megafuse - also supplied in the 14290 harness

Single kit to add door mounted wireless keypad, order part # 3L2Z10B690AA for separate replacement battery and/or 3L2Z8983AA for separate replacement backing plate, W/ remote keyless entry

Kit, 12 cavity, male - for terminals contact FCS at 877-682-4276, Sensor - Transmission Range

10 cavity, female , All AOD trans includes (1) connector, (1) spacer, (9) terminal pigtails, (9) heat shrink butt connectors

Water temperature sensor , Wiring Circuit: 2, Color: Brown

Spout Connector(Timing Shorting Bar) , Wiring Circuit: 2, Color: Black

8-terminal (male) , Wiring Circuit: 8, Color: Black

Electronic header connection (female) , Wiring Circuit: 10, Color: Black

Electronic header connection mates w/E6ZZ 14489-A use w/E6ZZ 14A468-A (female) , Wiring Circuit: 14, Color: Black

3 cavity, male, Switch - Inertia (Fuel Pump) , Wiring Circuit: 3

Stop Light Switch 13480 , Wiring Circuit: 2, Color: Black

6C315 sensor fan dropping resistor
6C315 sensor fan dropping resistor , Wiring Circuit: 2

3 cavity, female, Sensor - Flex Fuel , Wiring Circuit: 3
Throttle Position Sensor , Wiring Circuit: 3

Mass air flow sensor & iginition coil , Wiring Circuit: 4

Headlamp connector (spacer #E7DZ-14A468-B) , Wiring Circuit: 3

To Idle Air Control, 3.0 12V
Windshield washer pump, includes seal and lock, use with Augat terminal D87 , Wiring Circuit: 2

Front pillar mounted connector for door wiring. Includes: 14603 grommet, bolt, nut and 14N003 cover. Use w/E6DZ 14A666-A cap, E6DZ 14A468-J spacer, F0DZ 14A297-A gasket and F57Z 14A099-GA cover , Wiring Circuit: 56

Connector to the 12A112, 3.0 2v
To camshaft position sensor , Wiring Circuit: 3, Color: Black

To rear license plate lamp, Wiring Circuit: 3, Color: Gray

Data link connector - includes (1) spacer and (1) cover , Wiring Circuit: 16

Speed control module, Wiring Circuit: 10, Color: Black

3 cavity to alternator , Wiring Circuit: 3
3 cavity, Sensor - Fuel Tank Pressure , Wiring Circuit: 3

E1AZ 14489,N , Type 62 , with retainer (female) , with air bag, Wiring Circuit: 3, Color: Gray

Electronic EGR used w/E6DZ 14A468-F spacer, PFE sensor. , Wiring Circuit: 3, Color: Black

Electronic header connection (male) , Wiring Circuit: 10, Color: Black

Rotary headlamp switch , Wiring Circuit: 8, Color: Gray

EEC tester A/C mode & temp. control valve , Wiring Circuit: 4, Color: Red

FS6 compressor (male) , Wiring Circuit: 2, Color: Gray

A/C pressure switch - 3 and 6 o'clock locating tab - use with F3LZ 14A468-CA lock/spacer , Wiring Circuit: 4

Intake Manifold Runner Controller , Wiring Circuit: 6

RH-power window switch front, and RH and LH rear , Wiring Circuit: 5

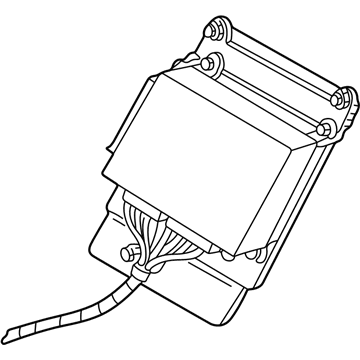

Air bag monitor - includes 14A468 spacer , Wiring Circuit: 28

Ignition switch - connector repair - use w/ FOVY 14A468-C spacer

Throttle position sensor repair - pig tail kit - 3 circuits connector, 8 cyl.

#F6DB 14A404-GC, 14A005 to LH dash panel - upper and lower

Shield For 14401 Wiring On The Steering Column Near 3530 Cover

Shield for F57Z 14489,CB (56) cavity connector, use w/E6DZ 14A666,A cap/cover , also supplied in 14630,1 harness

#F6DB 14A404,LC, 14A005 to LH rear quarter kick panel

#F6DB 14A404,ZB, 14A005 to LH floor pan under the seat

#F6DB 14A404,XD, 14A005 to RH rear quarter panel wheel housing

#F6DB 14A404-PB, 14290 rear jumper to trans & 12A581

Sleeve and retainer for unused connector on the 12A581, also refer to 14A594, w/o speed control

Use for 4.5 to 5.0mm unused cavity holes, includes 10 plugs

2 block relay bottom cover, use with F4TZ 14A003-FA lower cover, part of 14A005

#F67B 14N003-EA, F87B 14N003-APA, use with F4TZ 14A003-PA - Relay block top cover in engine compartment - 4 block part of 14290

#F6DB 14B176-AA - cover for mega fuse, engine compartment

#F65B 14N003-GB, 4 block relay wiper cover, use with F6DZ 14A003-EA, lower cover, part of 14A005

2 block relay upper cover, use with F57Z 14A003-FA lower cover, part of 14A005

#F6DB 14A003-BB - power distribution box lower cover, also supplied in 14290 harness

RH upper sail mount includes:speaker,bracket,seal,F6DF,18808,A* , w/o premium sound

Liftgate, w/o premium sound
Rear package tray, w/o premium sound

Lifgate, w/ premium or audiophile sound
Rear (package tray), w/ premium or audiophile sound

LH upper sail mount includes:speaker,bracket,seal,F7DF-18808-AB, w/ premium or audiophile sound

Location: Passenger Side
Passenger Side And Driver Side,Rear

Isolator, Isolator,exc SHO-ONLY TO BE USED WITH ORIGINAL BUMPER REINFORCMENT, BEFORE 12/9/98

ACTUATOR (FRONT DOOR ELECTRIC LATCH) AND 218A43 FACTORY INSTALLED

Type 13 - RH - paint to match, power, manual fold, w/heated glass, BEFORE 5/13/99

Type 13 - LH - paint to match, smooth finish, power, fixed, w/heated glass, BEFORE 5/11/99

#XF1T 14631,CF , LH , w/power door lock and keyless entry
